150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030

Place of Origin Made in china
Brand Name Belparts
Model Number R150-9 R140LC-9S 31Q4-40030
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~3 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model R140LC-9 R145CR-9 R150-9 Weight 150Kg
Warranty 1 Year Color Black
Texture Steel Condition 100% New
Quality High Quality MOQ 1PCS
High Light

31Q4 40030 Final Drive

,

R150 9 Final Drive Gearbox

,

31Q4 40030 Drive Gearbox

Leave a Message
Product Description

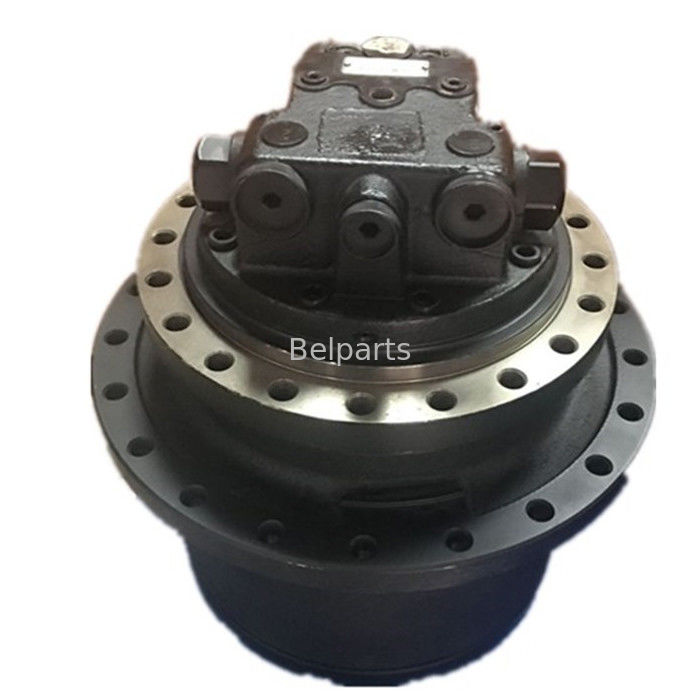

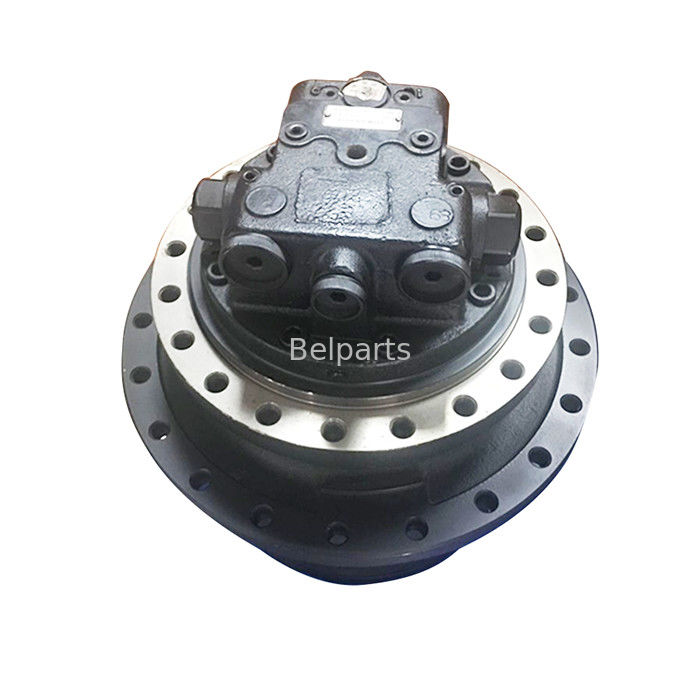

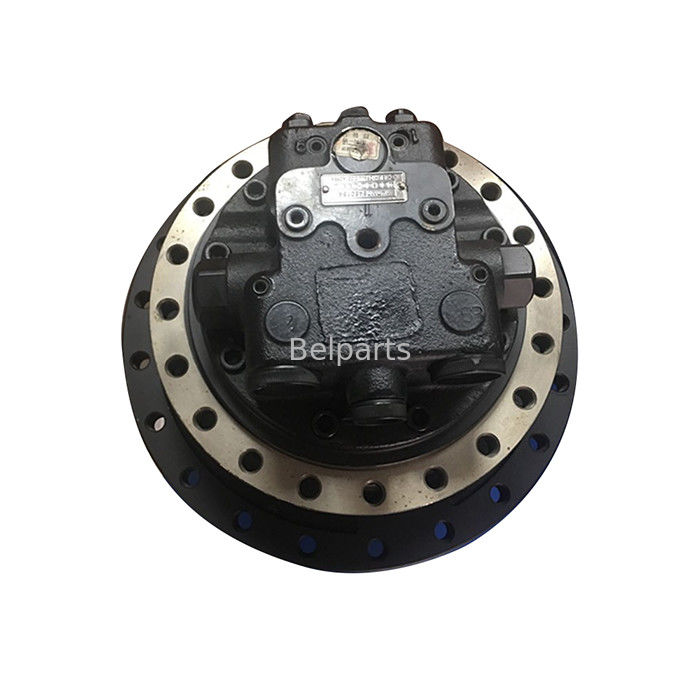

Excavator 31Q4-40030 R150-9 final drive gearbox R140LC-9S Travel motor assy



Appliion Excavator
Part name Excavator Travel Motor Final Drive Assembly
Material Steel
Model R140LC-9 R145CR-9 R150-9
MOQ 1PC
Warranty 6 months
Payment term T/T, Western union, paypal, trade assurance or as required
Delivery 2 days after the payment received
Shipment by sea, by air, by express or as required



150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 0

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 1

List of spare parts

# Part No Part Name Qty. Price request
* 31Q4-40030 TRACK MOTOR ASSY
*-1, -2, -3, -4
1
*-1 XKAH-01182 TRAVEL MOTOR UNIT 1
M-1 XKAH-01183 CYL BLOCK& PISTON KIT 1
M-2 XKAH-01184 PISTON ASSY 9
N5 XKAH-01185 PISTON 1
N6 XKAH-01186 SHOE 1
4 XKAH-01187 BLOCK-CYLINDER 1
N7 XKAH-01188 PLATE-RETAINER 1
N8 XKAH-01189 BALL-THRUST 1
N10 XKAH-01190 WASHER 2
N11 XKAH-01191 WASHER-COLLAR 1
N14 XKAH-01192 SPRING 1
45 XKAH-01194 RING-SNAP 1
N51 XKAH-01193 ROLLER 5
M-3 XKAH-01195 PISTON ASSY-2 SPEED 1
N61 XKAH-01196 PISTON 1
N62 XKAH-01197 SHOE 1
N60 XKAH-01198 SPRING 1
2 XKAH-01199 SHAFT-MAIN 1
3 XKAH-01200 PLATE-SWASH 1
9 XKAH-01201 PLATE-TIMING 1
12 XKAH-01456 PISTON-PARKING 1
13 XKAH-00733 SPRING 10
15 XKAH-01164 PALTE-FRICTION 3
16 XKAH-01165 PLATE-MATING 3
K32 XKAH-00510 SEAL-OIL 1
K35 XKAH-01166 O-RING 1
K39 XKAH-01167 O-RING 1
42 XKAH-01172 PIN-PARALLEL 2
43 XKAH-01174 BOLT-SOCKET 8
K47 XKAH-01236 RING-BACK UP 1
K48 XKAH-01169 RING-BACK UP 1
49 XKAH-01170 BEARING-ROLLER 1
50 XKAH-01173 BEARING-BALL 1
67 XKAH-01171 PIVOT 2
K75 XKAH-00262 O-RING 2
*-2 @ FUEL INJECTION PIPE & NOZZLE
SEE 4150
1
*-3 @ FUEL INJECTION PIPE & NOZZLE
SEE 4150
2
*-4 @ FUEL INJECTION PIPE & NOZZLE
SEE 4160
1
K XKAH-01457 SEAT KIT
SEE ILLUST
1
N @ FUEL INJECTION PIPE & NOZZLE AR





Company Information






150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 2

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 3

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 4



Delivery


150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 5

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 6



Exhibition


150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 7

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 8

150Kg R140LC-9S R150-9 Hyundai Final Drive 31Q4-40030 9



Our advantages


1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.



FAQ:

1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
