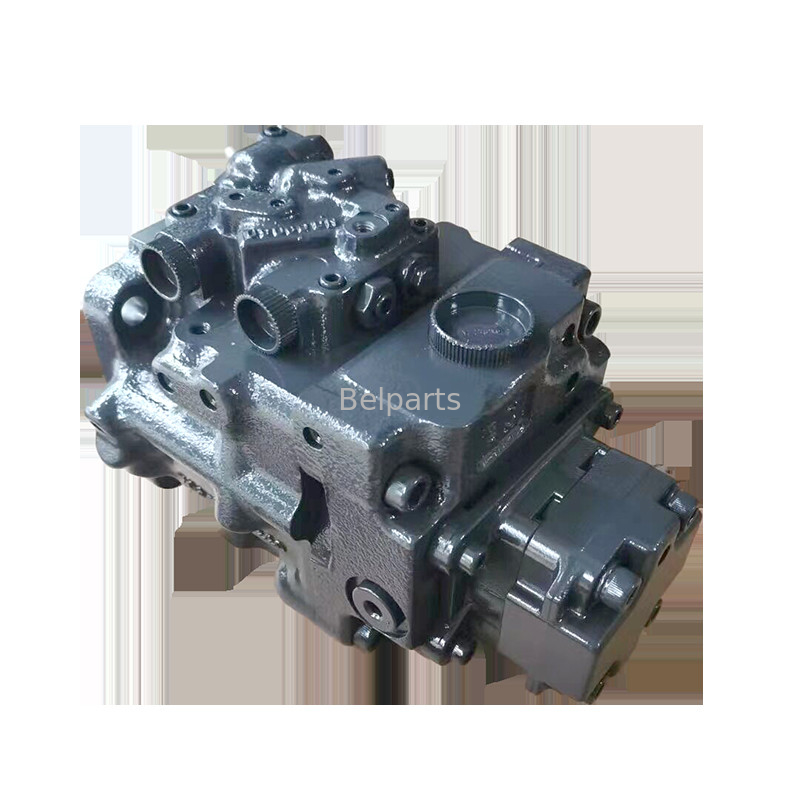

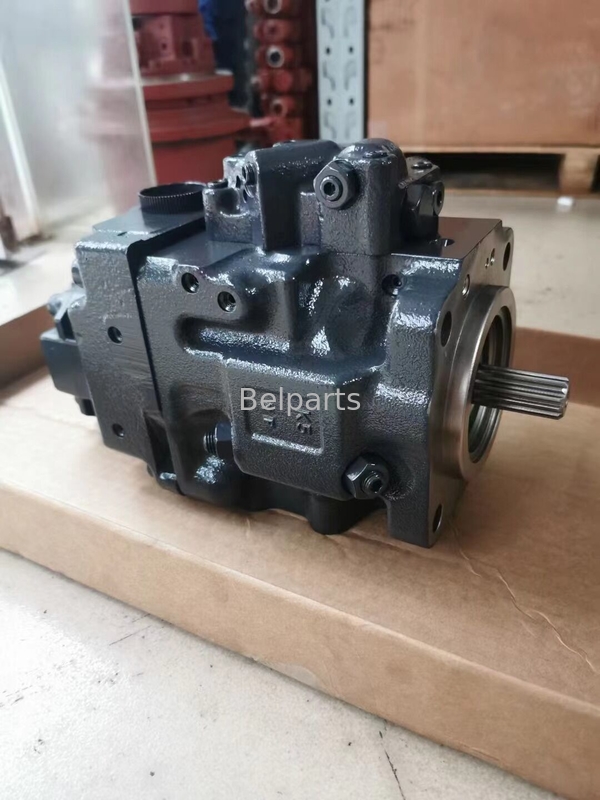

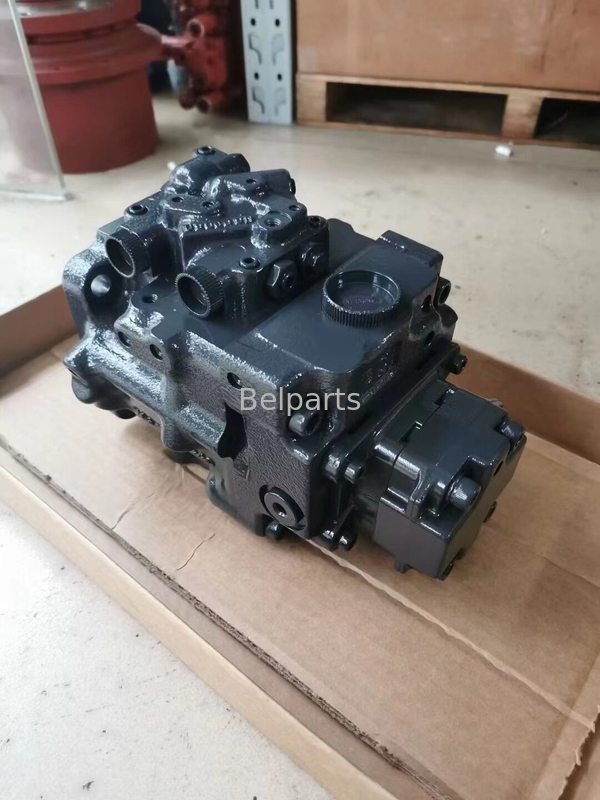

PC20-6 Komatsu Excavator Hydraulic Pump 705-41-08001 705-41-03001 Main Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Supply Ability | 1000pcs | Apply To | Crawler Excavator |
|---|---|---|---|
| Excavator Model | PC20-6 | Product Name | Excavator Hydraulic Pump |
| Brand | Belparts | Weight | 42KG |
| Packing | 38x38x50 | Pump Number | 705-41-08001 705-41-03001 |
| High Light | PC20-6 Excavator Hydraulic Pump,705-41-08001 Excavator Hydraulic Pump,705-41-03001 Main Pump |
||
Product Description
PC20-6 Excavator hydraulic pump 705-41-08001 705-41-03001 main pump for komatsu
|
Appliion |
Excavator |
|
Part name |
hydraulic main pump |
|
Material |
Steel |
|
Model |
PC20-6 |
|
Part number |
705-41-08001 705-41-03001 |
|
Payment term |
As require |
|
Delivery |
3-7 working days |
|
Brand |
made in china or orginal new |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 705-41-08001 | PUMP ASS'Y,(SBR(1)-10+10+8) | 1 | |
| 1 | 705-41-03001 | PUMP ASS'Y | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | 705-41-80011 | Bracket | 1 | |
| 2 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-22011) | CASE,GEAR | 1 | |
| 5 | (*705-40-80311) | Carrier | 1 | |
| 6 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 7 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 8 | (*705-40-22342) | GEAR,DRIVE | 1 | |
| 9 | (*705-40-22511) | GEAR,DRIVEN | 1 | |
| 10 | 705-40-80710 | PLATE,SIDE | 2 | |
| 11 | 705-40-80730 | RING,BACK-UP | 2 | |
| 12 | 705-40-80740 | RING,SEAL | 2 | |
| 13 | 705-40-80630 | RING,SEAL | 2 | |
| 14 | 705-40-80810 | Shaft seal | 1 | |
| 15 | 705-40-80870 | Plate | 1 | |
| 16 | 04065-03515 | RING, SNAP | 1 | |
| 17 | 01252-31270 | Bolt | 4 | |
| 18 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 19 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 20 | 705-67-01230 | PIN, DOWEL | 2 |
1. in use, in order to reduce the flow resistance and improve the liquid absorption capacity of the gear pump, the medium is heated or insulated.
2. Built-in gear pump is suitable for occasions that require high temperature uniformity of conveying liquid or uniform cooling of high temperature liquid. Whether steam, heat-conducting oil or cooling water is introduced into the jacket
depends on the specific conditions of the medium.
3. The gear pump can be equipped with valves. When the pump or pipeline system is over-pressurized, the valves open to form internal backflow to ensure the system.
4. The rotational speed of gear pump with high viscosity has a linear function relationship with the flow rate, and the flow rate of the pump can be changed by changing the rotational speed appropriately.
FAQ
(1). Are you a manufacturer or trading company?
We are the professional manufacturer of the Excavator Hydraulic parts,
(2). What’s the accessory for each Outdoor Digital Signage?
Accessory such as : blower or pump, repair kits (including the PVC materials, glue, Etc.) are included;
(3). Your blowers and pumps meet CE/UL requirements?
(4). Yes, Our blowers/pumps have the certifies of CE/UL.
(5). Can we change the size and color for the inflatables we desire ?
Yes, the size and color can be customized according to your request.
