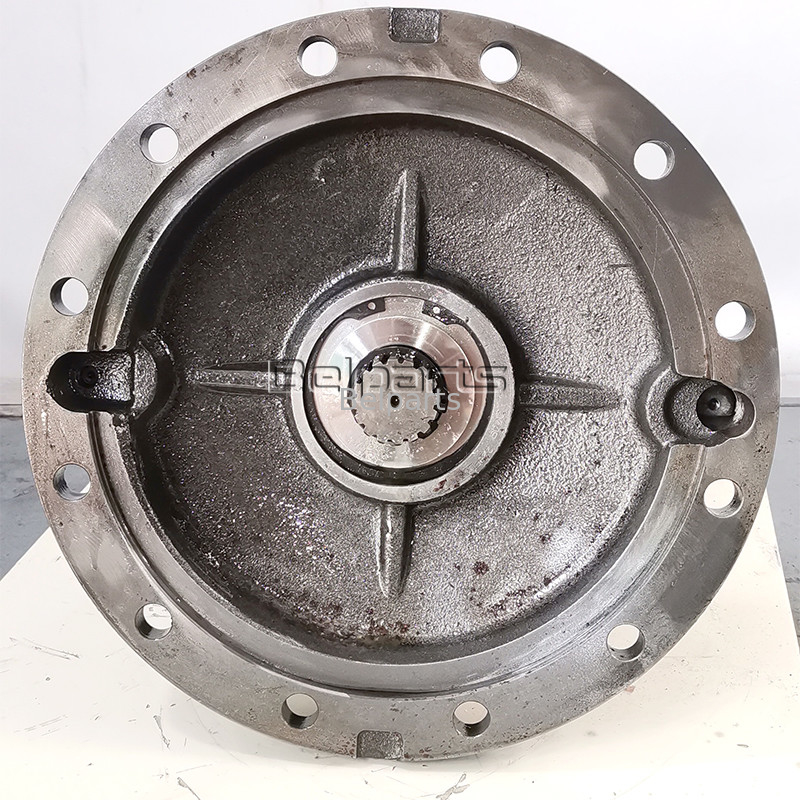

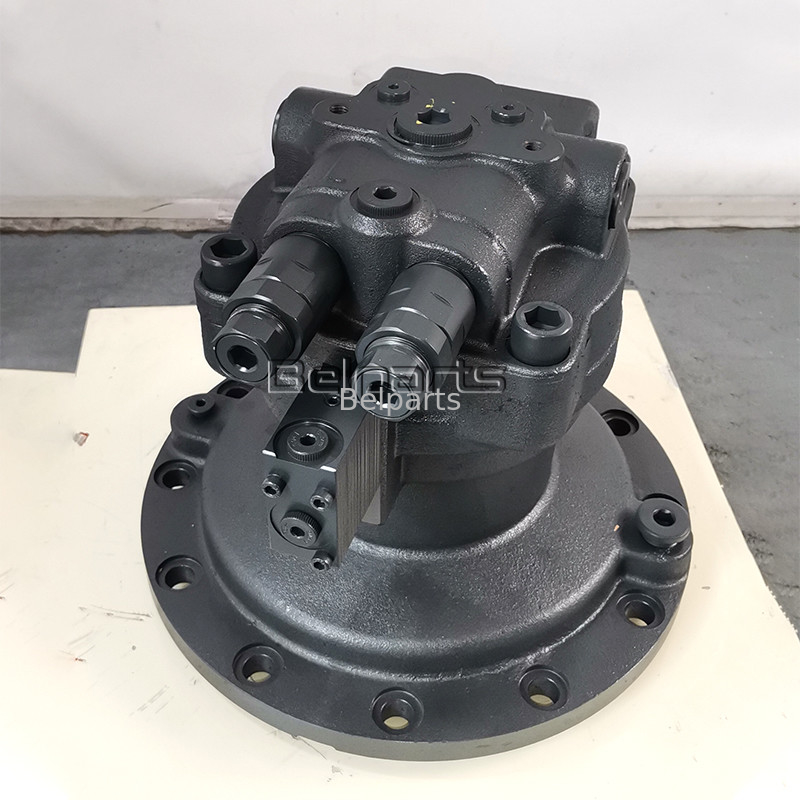

R320-7 Swing Motor Assy 31N8-12010 31N9-10131
R320-7 Swing Motor Assy
,31N9-10131 Swing Motor Assy
,Excavator Slewing Motor 31N8-12010
Belparts Excavator Slewing Motor R320-7 Swing Motor Assy 31N8-12010 31N9-10131 for hyundai
Appliion:Excavator
Part name:swing motor
Material:Steel
Model:R320-7
Part number:31N8-12010 31N9-10131
Payment term:37*36*52
Delivery:56KG
Brand:Belparts
|
Appliion |
Excavator |
|
Part name |
swing motor |
|
Material |
Steel |
|
Model |
R320-7 |
|
Part number |
31N8-12010 31N9-10131 |
|
Payment term |
37*36*52 |
|
Delivery |
56KG |
|
Brand |
Belparts |

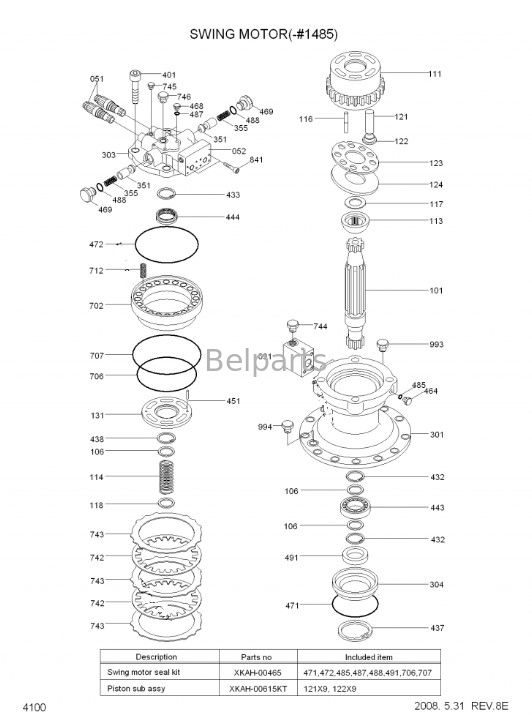

| # | Part No | Part Name | Qty. | Price request |
| N* | 31N9-10131 | SWING MOTOR ASSY | 1 | |
| N* | 31N9-10132 | SWING MOTOR ASSY | 1 | |
| N* | 31N9-10133 | SWING MOTOR ASSY | 1 | |
| *-1 | 31N8-12010 | SWING MOTOR UNIT | 1 | |
| 031 | XKAH-00121 | VALVE-BRAKE | 1 | |
| 051 | XKAH-00122 | VALVE-RELIEF | 2 | |
| 052 | XKAH-00115 | BLOCK | 1 | |
| 101 | XKAH-00162 | SHAFT-DRIVE | 1 | |
| 106 | XKAH-00161 | SPACER | 3 | |
| 111 | XKAH-00160 | BLOCK-CYLINDER | 1 | |
| 113 | XKAH-00159 | BUSHING-SPHERICAL | 1 | |
| 114 | XKAH-00158 | SPRING | 1 | |
| 116 | XKAH-00157 | ROD-PUSH | 12 | |
| 117 | XKAH-00156 | SPACER F | 1 | |
| 118 | XKAH-00155 | SPACER R | 1 | |
| NS121 | XKAH-00154 | PISTON | 9 | |
| NS122 | XKAH-00153 | SHOE | 9 | |
| 123 | XKAH-00152 | RETAINER | 1 | |
| 124 | XKAH-00151 | PLATE-SHOE | 1 | |
| 131 | XKAH-00150 | PLATE-VALVE | 1 | |
| 301 | XKAH-00149 | CASING | 1 | |
| 303 | XKAH-00546 | CASING-VALVE | 1 | |
| 304 | XKAH-00147 | COVER-FRONT | 1 | |
| 304 | XKAH-00930 | COVER-FRONT | 1 | |
| 351 | XKAH-00146 | PLUNGER | 2 | |
| 355 | XKAH-00145 | SPRING | 2 | |
| 401 | XKAH-00144 | BOLT-SOCKET | 4 | |
| 432 | XKAH-00143 | RING-SNAP | 2 | |
| 433 | XKAH-00142 | RING-SNAP | 1 | |
| 437 | XKAH-00141 | RING-SNAP | 1 | |
| 438 | XKAH-00140 | RING-SNAP | 1 | |
| 443 | XKAH-00139 | BEARING-ROLLER | 1 | |
| 444 | XKAH-00138 | BEARING-ROLLER | 1 | |
| 451 | XKAH-00137 | PIN-SPRING | 2 | |
| 464 | XKAH-00136 | PLUG-VP | 1 | |
| 468 | XKAH-00136 | PLUG-VP | 2 | |
| 469 | XKAH-00135 | PLUG | 2 | |
| K471 | XKAH-00134 | O-RING | 1 | |
| K472 | XKAH-00133 | O-RING | 1 | |
| K485 | XKAH-00052 | O-RING | 1 | |
| K487 | XKAH-00052 | O-RING | 2 | |
| K488 | XKAH-00132 | O-RING | 2 | |
| K491 | XKAH-00131 | SEAL-OIL | 1 | |
| K491 | XKAH-00929 | SEAL-OIL | 1 | |
| 702 | XKAH-00130 | PISTON-BRAKE | 1 | |
| K706 | XKAH-00129 | O-RING | 1 | |
| K707 | XKAH-00128 | O-RING | 1 | |
| 712 | XKAH-00127 | SPRING-BRAKE | 20 | |
| 742 | XKAH-00126 | PLATE-FRICTION | 2 | |
| 743 | XKAH-00125 | PLATE-SEPERATION | 3 | |
| 744 | XKAH-00120 | PLUG | 2 | |
| 745 | XKAH-00119 | PLUG | 1 | |
| 746 | XKAH-00118 | PLUG | 1 | |
| 841 | XKAH-00114 | BOLT-SOCKET | 2 | |
| 993 | XKAH-00124 | PLUG | 1 | |
| 994 | XKAH-00123 | PLUG | 1 | |
| N*-2 | 31N9-10150 | SWING REDUCTION GEAR SEE 4110, 4115 |
1 | |
| K | XKAH-00465 | SEAL KIT SEE ILLUST |
1 | |
| S | XKAH-00615KT | PISTON ASSY SEE ILLUST |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Processing&Testing
Delivery
- 1.Outside packing: standard export carton packing;
- 2.According to orders, pack the spare parts one by one in a small plastic bag;
- 3.Put them into small carton boxes one by one;
- 4.Put the packed small carton boxes into bigger carton boxes one by one;
- 5.Put the bigger carton boxes into wooden boxes if necessary especially for
- the shipments by sea.
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details;We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment;if not in stock, the delivery time will be communied in advance, usually 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor,swing motor, travel gearbox,swing gearbox,gear parts, hydraulic pump;hydraulic parts,etc.lf you need other excavator parts, we also can supply as yourrequirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really foundsomething wrong, please provide pictures or video for us and we will check.After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do l pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
