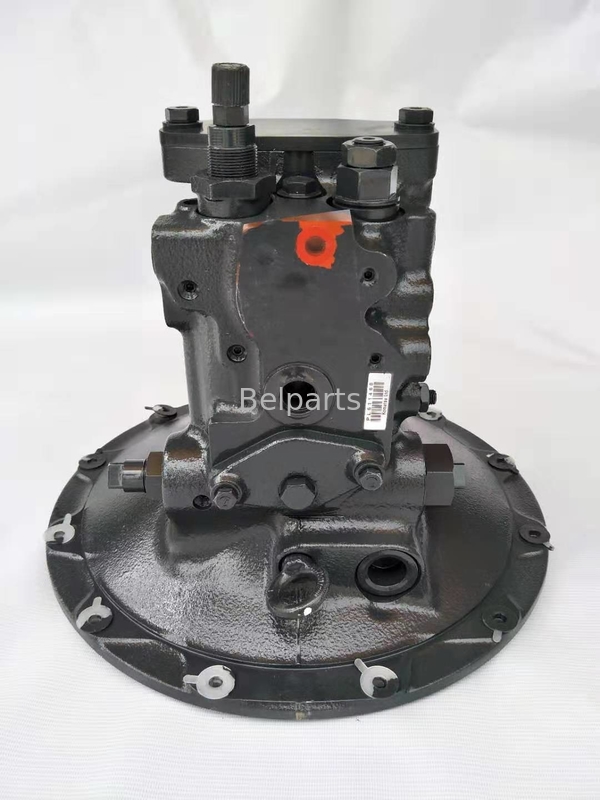

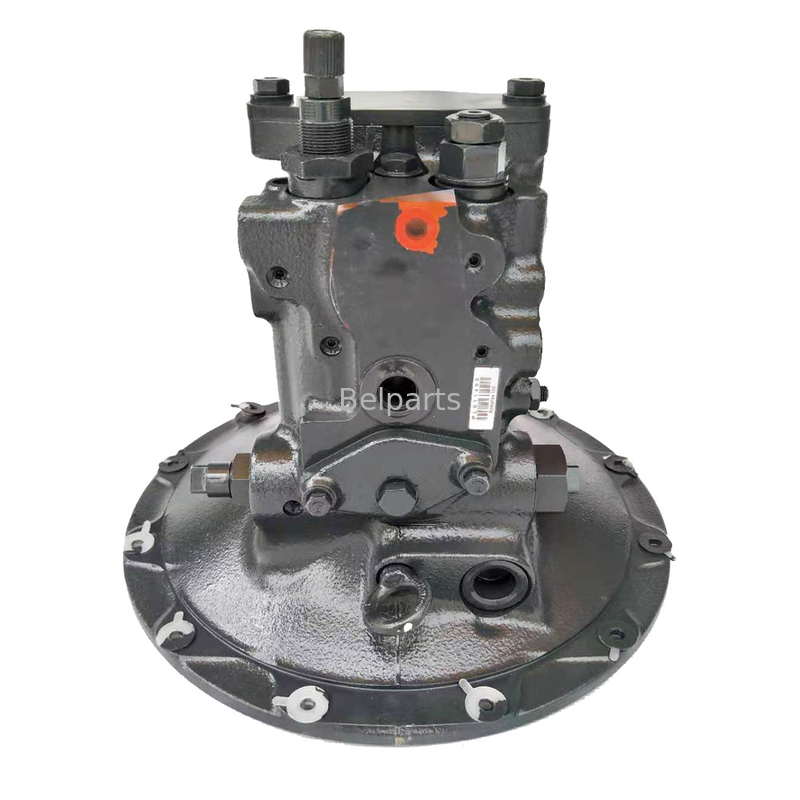

Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111

Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111

PC75UU-2 Hydraulic Pump

21W-60-22111 Hydraulic Pump

708-21-02021 Excavator Main Pump

Place of Origin:

Made in china

Brand Name:

Belparts

Model Number:

PC75UU-1 PC75UU-2

Contact Us
Request A Quote
Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111 Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111 Belparts Excavator Main Pump PC75UU-1 PC75UU-2 Hydraulic Pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Product Details
Model:
PC75UU-1 PC75UU-2
Part Number:
708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Warranty:
1 Year
Texture:
Steel
Part Name:
Hydraulic Pump
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiated price
Packaging Details
Wooden case
Delivery Time
1~7 days
Payment Terms
T/T, trade assurance,PayPal
Supply Ability
1000PCS
RELATED PRODUCTS
Good price Doosan excavator DH150 K3V63DTP-HNOW 2401-9236 2401-9236B hydraulic main pump assembly online

Doosan excavator DH150 K3V63DTP-HNOW 2401-9236 2401-9236B hydraulic main pump assembly

Get Best Price
Good price Excavator parts K3V112DT-9C32-12T hydraulic main pump R210-7 R215-7 R220-5 R225-7 31N6-10090 online

Excavator parts K3V112DT-9C32-12T hydraulic main pump R210-7 R215-7 R220-5 R225-7 31N6-10090

Get Best Price
Good price Excavator parts K3V112S-1NCJ-12T hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 hydraulic main pump OEM online

Excavator parts K3V112S-1NCJ-12T hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 hydraulic main pump OEM

Get Best Price
Good price Komatsu excavator 07040-12412 PC200-8 hydraulic main pump OEM parts online

Komatsu excavator 07040-12412 PC200-8 hydraulic main pump OEM parts

Get Best Price
Contact Us
+86 13247509480
belparts02@gmail.com
86-020-32384870
Contact Now
Product Description

Belparts excavator main pump PC75UU-1 PC75UU-2 hydraulic pump 708-21-02023 708-21-02022 708-21-02021 21W-60-22111


Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC75UU-1 PC75UU-2
Part number:708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion Crawler excavator
Part name Hydraulic Main Pump
Model PC75UU-1 PC75UU-2
Part number 708-21-02023 708-21-02022 708-21-02021 21W-60-22111
Warranty 3-12 months
Payment term T/T, Trade Assurance, Paypal and etc.
Brand Hitachi or as require

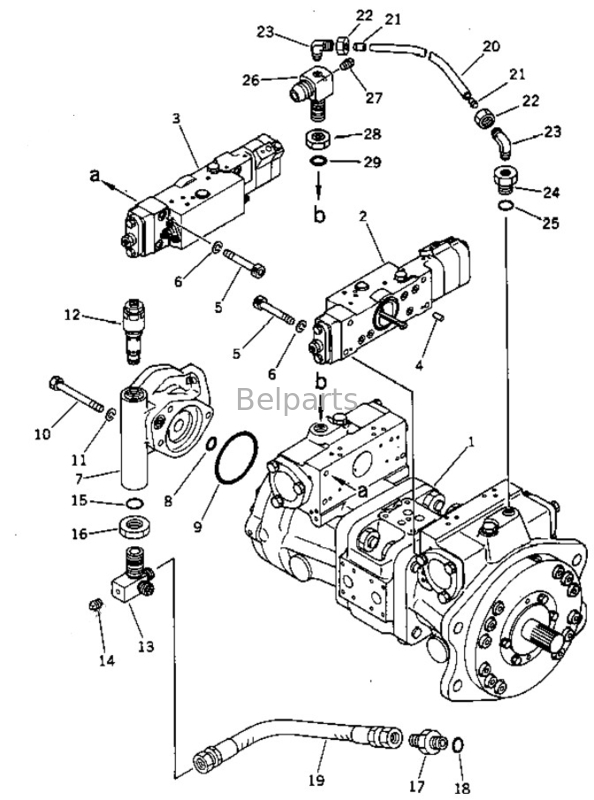

# Part No Part Name Qty. Price request
1 708-21-02023 PUMP ASS'Y 1  
1 708-21-02022 PUMP ASS'Y 1  
1 708-21-02021 PUMP ASS'Y 1  
1 (708-21-01222) PUMP SUB ASS'Y 1  
1 708-21-01221 PUMP SUB ASS'Y 1  
1 708-21-01220 PUMP SUB ASS'Y 1  
2 (708-21-07841) SERVO VALVE ASS'Y,FRONT 1  
3 (708-21-07941) SERVO VALVE ASS'Y,REAR 1  
4 04020-00616 PIN,(DOWEL) 4  
5 708-25-19130 Bolt 8  
6 01602-00825 WASHER,SPRING?(SANDY AND DUSTY SPEC.) 8  
7 (704-24-24401) GEAR PUMP ASS'Y 1  
8 07000-02018 O-RING,(SEE FIG.1601-29?1602-17) 1  
9 07000-02085 O-RING,(WITHOUT FUEL LEVEL GAUGE) 1  
10 01010-31080 BOLT, MOUNT STRAINER FLANGE 3  
11 01602-01030 WASHER,SPRING(SANDY?DUSTY TERRAIN S.) 3  
12 (708-23-14801) VALVE ASS'Y,RELIEF 1  
13 708-23-19110 Elbow 1  
14 07042-30108 PLUG,SEE FIG. K4010-63A0 1  
15 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 1  
16 07239-12410 NUT (ITL) 1  
17 07230-20315 UNION, AT SLACK ADJUSTER 1  
17 07230-10315 UNION,(FOR VARIABLE GIANT RIPPER) 1  
18 07002-02034 O-RING,(NOT USED WHEN (B) SPEC.) 1  
19 07102-20303 HOSE ASSEMBLY 1  
20 07822-00803 Tube 1  
21 07831-00813 SLEEVE (KIT) 2  
22 07832-00817 NUT,SLEEVE 2  
23 07834-00817 ELBOW,LIN1/2-PT3/8 2  
24 203-62-42590 Bushing 1  
25 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 1  
26 203-62-42640 Elbow 1  
27 07042-30108 PLUG,SEE FIG. K4010-63A0 1  
28 07239-12410 NUT (ITL) 1  
29 07002-02434 O-RING,DRAIN PLUG? R.H. HALF TANK 1  




Model
Nominal
displacement(ml/r)

Fore pump/
hind pump		 Pressure(MPa) Speed(r/min)
Volumetric
efficiency(≥%)

Fore pump/
hind pump		 Screw Flange L1 L
Weight
(kg)

Rated
Max
Optimum
speed
Speed range		 D D
CMF-*520-A*P* 20 16/20 20/25 1500-2500 800-3000 89 M27×2 25 102.5 169 7.3
CMF-*525-A*P* 25 104.5 173 7.4
CMF-*532-A*P* 32 M33×2 30 107.5 179 7.7
CMF-*540-A*P* 40 90 110.5 184 7.9
CMF-*545-A*P* 45 112.5 188 8.1
CMF-*550-A*P* 50 114.5 192 8.4
