Place of Origin:
China
Brand Name:
Belparts
Model Number:
R150W-9 R140W-9
With its hydraulic power source, this excavator hydraulic pump unit delivers efficient and effective performance every time. It is built to last, with a durable construction that ensures it can withstand the toughest conditions. Plus, the Komatsu Hydraulic Pump comes with a 1-year warranty, so you can have peace of mind knowing that you are investing in a quality product that will last.
Whether you are working on a construction site or a mining operation, the Komatsu Hydraulic Pump is the perfect choice for your excavator hydraulic pump system. It provides the power and performance you need to get the job done quickly and efficiently, so you can focus on other important tasks.
| Excavator Model | R150W-9, R140W-9 |
|---|---|
| Quality | Made In China |
| Product | Komatsu Hydraulic Pump |
| Power | Hydraulic |
| Warranty | 1 Year |
| Part Name | Hydraulic Pump |
This Hydraulic Excavator Pumping Unit is a high-quality pump for heavy excavator machinery. It is a vital hydraulic pump component that provides power to the excavator.
Designed specifically for use in the R150W-9 and R140W-9 excavator models, this hydraulic pump unit is a must-have for anyone looking to keep their machine running at peak performance. Whether you are working on construction sites, mining operations, or any other excavation project, the Belparts Hydraulic Excavator Pumping Unit is up to the task.
Thanks to its powerful hydraulic motor, this hydraulic pump component is capable of delivering the performance you need to get the job done quickly and efficiently. Whether you need to move large amounts of soil, gravel, or other materials, this hydraulic pump unit is up to the task.
Whether you're a contractor, construction company, or simply need to get work done around your property, the Belparts Excavator Hydraulic Pump Unit is an essential tool for any excavation project.
So if you're looking for a high-quality, reliable, and powerful hydraulic pump component for your excavator machine, look no further than the Belparts Hydraulic Excavator Pumping Unit. With its excellent performance, dependable construction, and 1-year warranty, this hydraulic pump unit is the perfect choice for anyone looking to get the job done right.

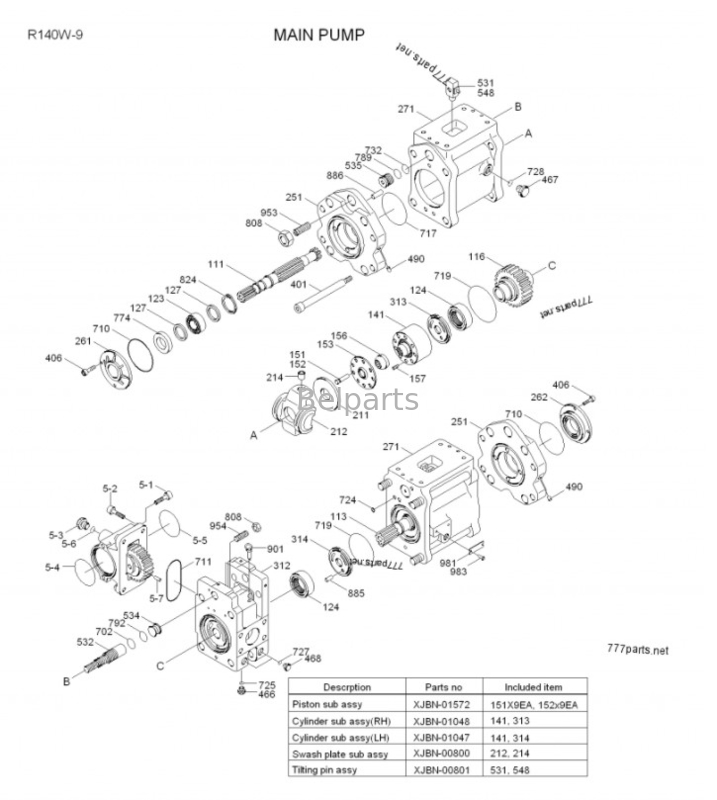

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31Q4-10010 | MAIN PUMP *-1, *-2, *-3 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
| 116 | XJBN-00804 | GEAR-1ST | 1 | |
| 123 | XJBN-00429 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00806 | SPACER-BEARING | 4 | |
| N141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
| N151 | XJBN-00425 | PISTON | 18 | |
| N152 | XJBN-01278 | SHOE | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | PLATE-SHOE | 2 | |
| N212 | XJBN-00419 | PLATE-SWASH | 2 | |
| N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | SUPPORT | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-01046 | CASING-PUMP | 2 | |
| 312 | XJBN-00812 | BLOCK-VALVE | 1 | |
| N313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
| N314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
| 326 | XJBN-00937 | COVER | 1 | |
| 401 | XJBN-00411 | SCREW | 8 | |
| 406 | XJBN-00410 | SCREW | 8 | |
| 414 | XJBN-01371 | SCREW | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 468 | XJBN-00237 | PLUG | 2 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| N531 | XJBN-00815 | PIN-TILTING | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER(L) | 2 | |
| 535 | XJBN-00405 | STOPPER(S) | 2 | |
| N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00888 | O-RING | 2 | |
| 710 | XJBN-00387 | O-RING | 1 | |
| 711 | XJBN-00878 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00044 | O-RING | 18 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 727 | XJBN-01357 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00820 | O-RING | 2 | |
| 774 | XJBN-01029 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| 079 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| 011 | XJBN-01572 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-01048 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-01047 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00800 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
| 530 | XJBN-00801 | TILTING PIN SUB ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Our Hydraulic Pump Excavator Parts are designed to offer reliable performance and durability for your excavator equipment. We provide comprehensive technical support and services to ensure that our products meet your specific needs and requirements.
Our team of experienced professionals is committed to providing timely and effective solutions to any issues or concerns you may have with our products. We offer installation and maintenance services to help you get the most out of your hydraulic pump excavator parts.
In addition, we provide training and educational resources to ensure that you and your team have the knowledge and skills necessary to properly operate and maintain your equipment. Our goal is to help you minimize downtime and maximize productivity.
Whether you need assistance with troubleshooting, repair, or replacement, we are here to support you every step of the way. Contact us today to learn more about our Hydraulic Pump Excavator Parts and the services we offer.
