Place of Origin:
China
Brand Name:
Belparts
Model Number:
R150W-9 R140W-9

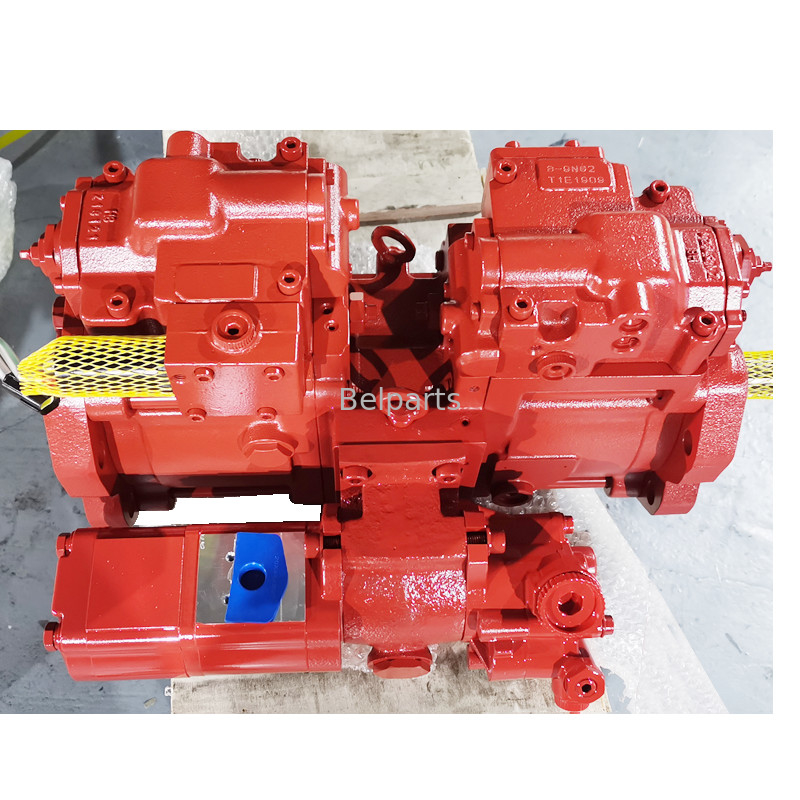

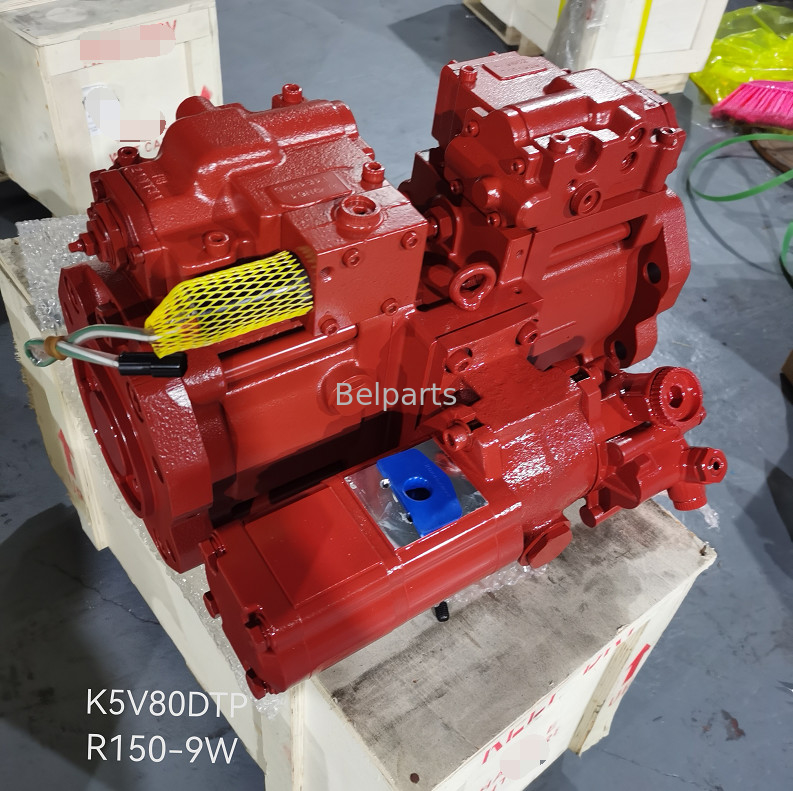

As a crucial part of any hydraulic excavator pumping unit, the hydraulic pump plays a key role in ensuring your machine operates smoothly and efficiently. That's why we've made sure to use only the best materials and manufacturing processes in the creation of our Komatsu Hydraulic Pump. With a focus on quality and reliability, you can count on this hydraulic pump to deliver the power you need, exactly when you need it.
So whether you're working on a construction site, mining project, or any other heavy-duty application, the Komatsu Hydraulic Pump is the perfect choice for your excavator. With its superior performance and durable construction, you can trust this hydraulic pump to keep your machine running smoothly, no matter what challenges you may face.
Quality | Made In China |
Warranty | 1 Year |
Product | Komatsu Hydraulic Pump |
Power | Hydraulic |
Part Name | Hydraulic Pump |
Excavator Model | R150W-9 R140W-9 |
This Excavator Hydraulic Pump Kit is a pumping device for excavator that uses hydraulic power to operate. It is a high-quality product made in China and comes with a 1-year warranty. The hydraulic excavator pumping unit is designed specifically for the Komatsu Hydraulic Pump and is compatible with the R150W-9 and R140W-9 excavator models.
The Hydraulic Pumping Unit plays a crucial role in the overall performance of the excavator. It is responsible for converting mechanical power into hydraulic power, which is then used to operate the various components of the excavator.
The Belparts Hydraulic Pump is a high-quality product that is made in China. It is designed to meet the specific requirements of the R150W-9 and R140W-9 models of Hydraulic Excavators. The pump is made from durable materials and has a long service life.
The Belparts Hydraulic Pump is suitable for use in a range of applications. It is ideal for use in construction sites, mines, and quarries. The pump is also suitable for use in agricultural and forestry applications.
The Belparts Hydraulic Pump is easy to install and maintain. It is a cost-effective solution for those who need a reliable and efficient Pump for Hydraulic Excavator.
The Belparts Hydraulic Pump is a popular choice for those who are looking for a high-quality Hydraulic Excavator Pumping Unit. It is a reliable and efficient product that is designed to meet the specific requirements of the R150W-9 and R140W-9 models of Hydraulic Excavators.

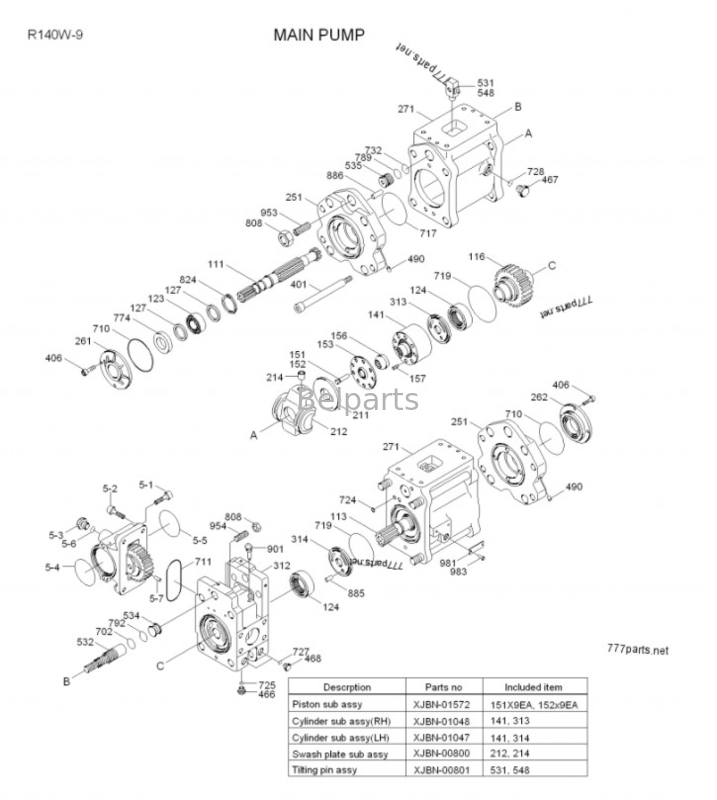

# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | 31Q4-10010 | MAIN PUMP *-1, *-2, *-3 |
1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
116 | XJBN-00804 | GEAR-1ST | 1 | |
123 | XJBN-00429 | BEARING-ROLLER | 2 | |
124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
127 | XJBN-00806 | SPACER-BEARING | 4 | |
N141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
N151 | XJBN-00425 | PISTON | 18 | |
N152 | XJBN-01278 | SHOE | 18 | |
153 | XJBN-00808 | PLATE-SET | 2 | |
156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
211 | XJBN-00420 | PLATE-SHOE | 2 | |
N212 | XJBN-00419 | PLATE-SWASH | 2 | |
N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
251 | XJBN-00417 | SUPPORT | 2 | |
261 | XJBN-00809 | COVER-FR | 1 | |
271 | XJBN-01046 | CASING-PUMP | 2 | |
312 | XJBN-00812 | BLOCK-VALVE | 1 | |
N313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
N314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
326 | XJBN-00937 | COVER | 1 | |
401 | XJBN-00411 | SCREW | 8 | |
406 | XJBN-00410 | SCREW | 8 | |
414 | XJBN-01371 | SCREW | 4 | |
466 | XJBN-00356 | PLUG | 2 | |
467 | XJBN-00409 | PLUG | 4 | |
468 | XJBN-00237 | PLUG | 2 | |
490 | XJBN-00032 | PLUG | 15 | |
N531 | XJBN-00815 | PIN-TILTING | 2 | |
532 | XJBN-00407 | PISTON-SERVO | 2 | |
534 | XJBN-00816 | STOPPER(L) | 2 | |
535 | XJBN-00405 | STOPPER(S) | 2 | |
N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
702 | XJBN-00888 | O-RING | 2 | |
710 | XJBN-00387 | O-RING | 1 | |
711 | XJBN-00878 | O-RING | 1 | |
717 | XJBN-00401 | O-RING | 2 | |
719 | XJBN-00400 | O-RING | 2 | |
724 | XJBN-00044 | O-RING | 18 | |
725 | XJBN-00045 | O-RING | 2 | |
727 | XJBN-01357 | O-RING | 2 | |
728 | XJBN-00097 | O-RING | 4 | |
732 | XJBN-00820 | O-RING | 2 | |
774 | XJBN-01029 | SEAL-OIL | 1 | |
789 | XJBN-00398 | RING-BACK UP | 2 | |
792 | XJBN-00397 | RING-BACK UP | 2 | |
808 | XJBN-00396 | NUT-HEX | 4 | |
824 | XJBN-00395 | RING-SNAP | 2 | |
885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00393 | BOLT-EYE | 2 | |
953 | XJBN-00105 | SCREW-SET | 2 | |
954 | XJBN-00392 | SCREW-SET | 2 | |
981 | XJBN-00156 | NAME PLATE | 1 | |
983 | XJBN-00341 | PIN | 2 | |
079 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
*-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
*-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
011 | XJBN-01572 | PISTON SUB ASSY SEE ILLUST |
2 | |
013 | XJBN-01048 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
014 | XJBN-01047 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
030 | XJBN-00800 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
530 | XJBN-00801 | TILTING PIN SUB ASSY SEE ILLUST |
2 | |
N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Our Hydraulic Pump Excavator Parts are designed to provide reliable and efficient performance for your excavator. Our team of technical experts are available to provide support and assistance with any product related questions or issues. We offer a range of services including installation, maintenance, and repair to ensure that your equipment operates at its best.
