Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
DX300-7

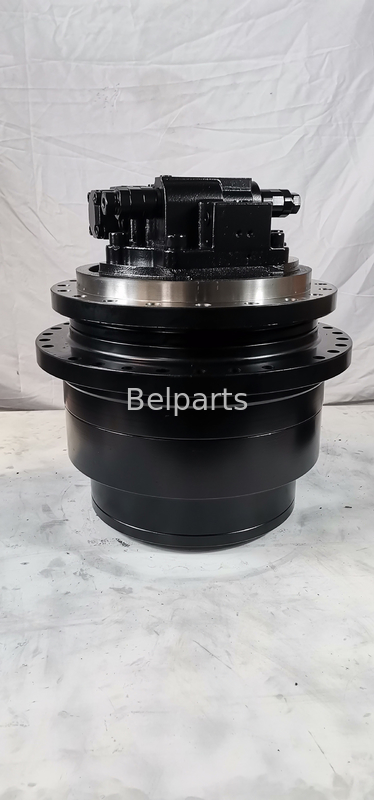

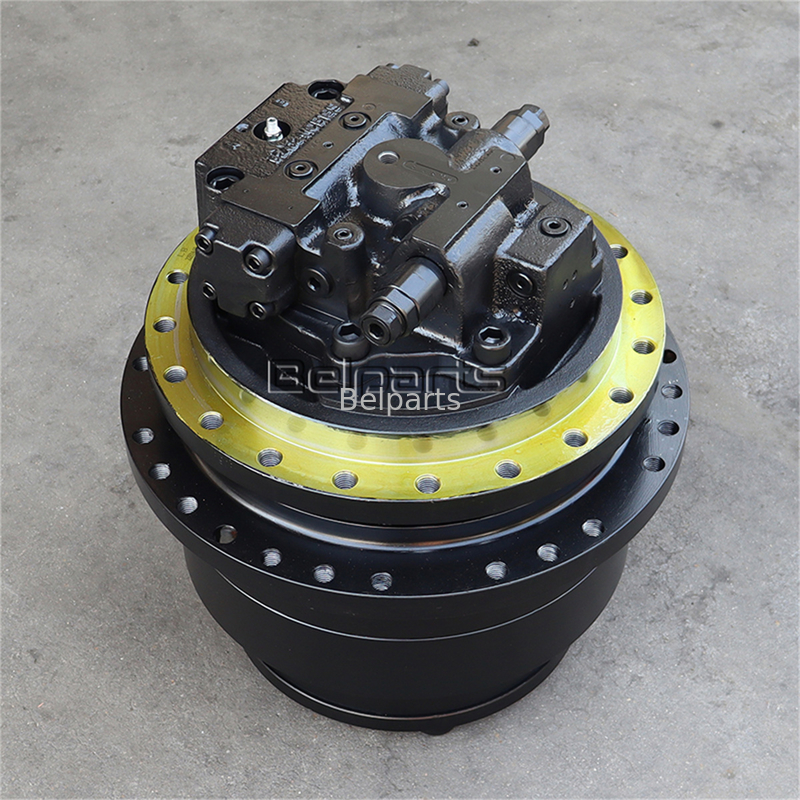

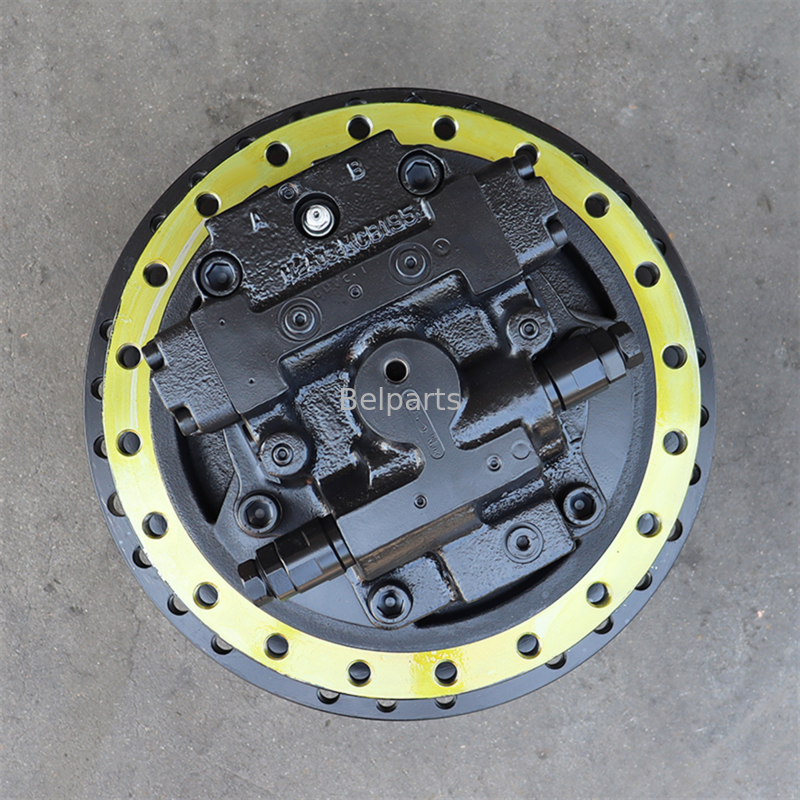

Belparts excavator DX300-7 401-00470A K1001992C Travel motor assy for doosan final drive
The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding applications in mining, construction, and agriculture.
PRODUCT DESCRIPTION |
||
Model: DX300-7 | Ategory: Final Drive |
|
part number: 401-00470A K1001992C |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
# | Part No | Part Name | Comment | Qty. | Price request |
---|---|---|---|---|---|
- | K1001992C | GEAR ASSY, REDUCTION | 403 kg | 2 | |
- | 401-00470A | TRAVELING MOTOR | 147 kg | 1 | |
101 | 405-00031 | SHAFT | 4 kg | 1 | |
102 | 2109-8001 | BEARING, ROLLER | 1 kg | 1 | |
103 | 2109-8003 | BEARING, NEEDLE | 1 | ||
106 | 2114-1598 | BEARING, SPACER | 1 | ||
107 | S6500500 | RING, RETAINING | 1 | ||
1 | K9000781 | ROTARY KIT | 12 kg | 1 | |
1A | K9000782 | CYLINDER BLOCK KIT | 9 kg | 1 | |
1AA | 2410-1015B | BLOCK, CYLINDER | 8 kg | 1 | |
1AB | K9000783 | PLATE, VALVE | 1 kg | 1 | |
1B | 2129-1315 | SPRING, CYLINDER | 9 kg | 9 | |
1C | 2114-1599A | SPACER | 1 | ||
1D | K9000784 | PISTON KIT | 3 kg | 1 | |
1DA | 2409-1021D | PISTON & SHOE ASS`Y | 3 kg | 9 | |
1E | 2408-1039B | BUSH & PUSH PLATE ASS`Y | 1 kg | 1 | |
201 | 2412-1030B | SWASH ASS`Y | 7 kg | 1 | |
272 | 402-00038 | CASING, SHAFT | 76 kg | 1 | |
303 | 2402-1035G | CASING, VALVE | 36 kg | 1 | |
350 | 2420-1081D | RELIEF VALVE ASS`Y | 1 kg | 2 | |
350A | S8000241 | O-RING | 1 kg | 1 | |
350B | S8010301 | O-RING | 1 | ||
350C | S8090300 | RING, BACK-UP T2 G30 | 1 | ||
2 | K9000785 | SPOOL , C.B KIT | 1 kg | 1 | |
2A | 424-00146A | SPOOL, C.B VALVE | 1 | ||
2B | 2415-1009D1 | SCREW, ORIFICE | 2 | ||
3 | K9000786 | DAMPING CHECK KIT | 2 | ||
3A | 2129-1321 | SPRING, CYLINDER | 1 | ||
3B | 2416-1013C | DAMPING CHECK ASS`Y | 1 |
DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300 |
R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7 |
EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D |
E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B |
EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, ZX450,ZX470,ZX870,ZX1200 |
EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G |
SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160 |
