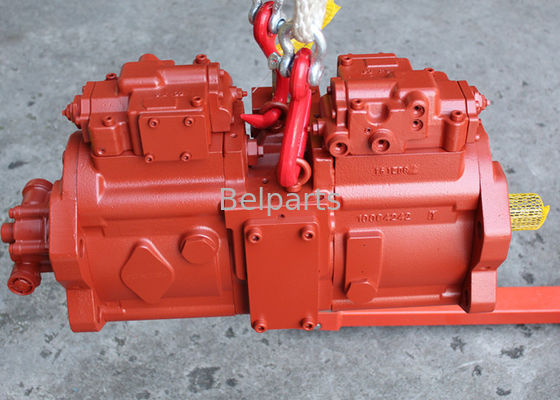

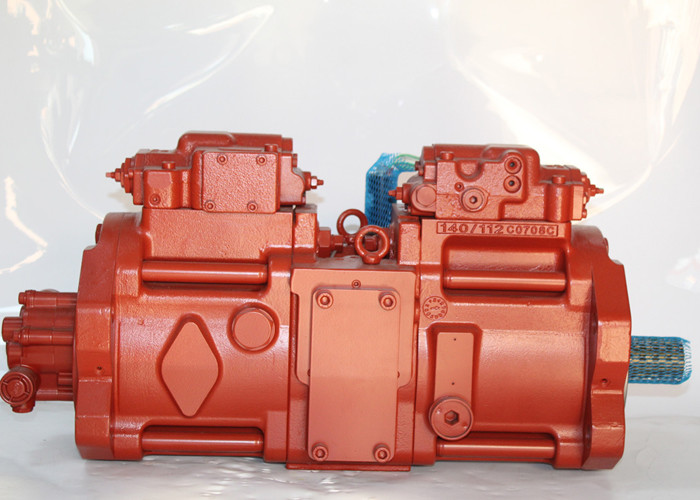

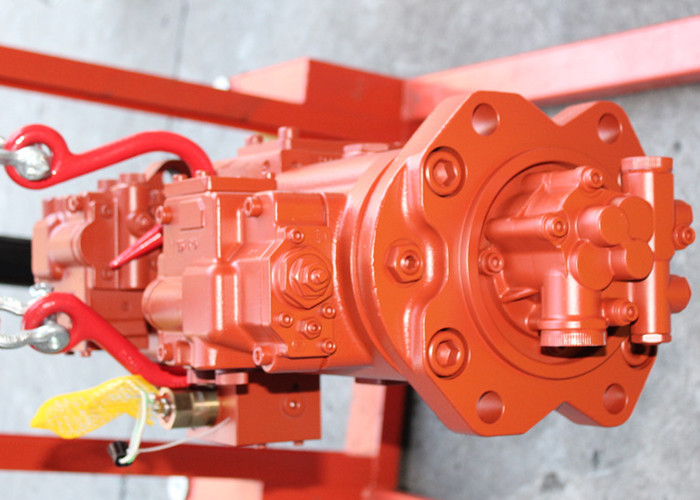

Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump

Place of Origin Made in china
Brand Name Belparts
Model Number K5V140DTP-9C12-17T
Certifiion OEM
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~7 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SY235-8 Warranty 1 Year
Weight 145Kg Condition 100% New
Color Red Texture Steel
Part Name Hydraulic Pump/Main Pump Quality High Quality
Leave a Message
Product Description

Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump




Product name K5V140DTP Hydraulic pump R305-7 main pump
Place of Origin: China(mainland)
Model: R305-7
Part number: K3V112DT-9N24-14T
MOQ: 1 PCS
Payment term: T/T,Alibaba trade assurance,PayPal
Delivery time: Within 1~7 days after receiving the payment
Packing: Standard exporting packing or as required



Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump 0

Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump 1

List of spare parts

# Part No Part Name Qty.
* 31N8-10011 MAIN PUMP 1
*-1 XJBN-00996 MAIN PUMP UNIT 1
111 XJBN-00015 SHAFT-DRIVE(F) 1
113 XJBN-00153 SHAFT-DRIVE(R) 1
114 XJBN-00367 COUPLING-SPLINE 1
123 XJBN-00017 BEARING-ROLLER 2
124 XJBN-00018 BEARING-NEEDLE 2
127 XJBN-00019 SPACER-BEARING 3
NS141 XJBN-00007 BLOCK-CYLINDER 2
NS151 XJBN-00004 PISTON 18
NS152 XJBN-00748 SHOE 18
153 XJBN-00020 PLATE-SET 2
156 XJBN-00021 BUSHING-SPHERICAL 2
157 XJBN-00022 SPRING-CYLINDER 18
211 XJBN-00023 PLATE-SHOE 2
NS212 XJBN-00012 PLATE-SWASH 2
NS214 XJBN-00013 BUSHING-TILTING 2
251 XJBN-00024 SUPPORT 2
261 XJBN-00025 COVER(FR)-SEAL 1
271 XJBN-00026 CASING-PUMP 2
312 XJBN-00027 BLOCK-VALVE 1
NS313 XJBN-00008 PLATE(R)-VALVE 1
NS314 XJBN-00010 PLATE(L)-VALVE 1
N325 XJBN-00380 CASING-VALVE 1
401 XJBN-00028 SCREW 8
406 XJBN-00355 SCREW-HEX SOC HD 4
407 XJBN-00381 SCREW 3
466 XJBN-00356 PLUG 3
468 XJBN-00357 PLUG 4
490 XJBN-00032 PLUG 32
NS531 XJBN-00369 PIN-TILTING 2
532 XJBN-00033 PISTON-SERVO 2
534 XJBN-00034 STOPPER(L) 2
535 XJBN-00035 STOPPER(S) 2
N541 XJBN-00036 SEAT 4
N543 XJBN-00037 STOPPER 1 2
N544 XJBN-00039 STOPPER 2 2
N545 XJBN-00359 BALL-STEEL 4
NS548 XJBN-00360 PIN-FEED BACK 2
702 XJBN-00040 O-RING 2
710 XJBN-00041 O-RING 1
717 XJBN-00042 O-RING 2
719 XJBN-00043 O-RING 2
724 XJBN-00361 O-RING 16
725 XJBN-00362 O-RING 8
727 XJBN-00283 O-RING 1
728 XJBN-00363 O-RING 3
732 XJBN-00047 O-RING 2
774 XJBN-00048 SEAL-OIL 1
789 XJBN-00049 RING-BACK UP 2
792 XJBN-00050 RING-BACK UP 2
808 XJBN-00364 NUT 4
824 XJBN-00052 RING-SNAP 2
885 XJBN-00053 PIN-2 2
886 XJBN-00365 PIN-SPRING 4
901 XJBN-00055 BOLT-EYE 2
953 XJBN-00056 SCREW-SET 2
954 XJBN-00057 SCREW-SET 2
981 XJBN-00156 NAME PLATE 1
983 XJBN-00341 PIN 2
*-2 XJBN-00001 REGULATOR 1
*-3 XJBN-00002 GEAR PUMP 1
*-4 XJBN-00014 CASING ASSY-EPPR VLV 1
011 XJBN-00003 PISTON SUB ASSY
SEE ILLUST
2
013 XJBN-00006 CYLINDER ASSY-RH
SEE ILLUST
1
014 XJBN-00009 CYLINDER ASSY-LH
SEE ILLUST
1
030 XJBN-00011 SWASH PLATE ASSY
SEE ILLUST
2
053 XJBN-00371 TILTING PIN ASSY
SEE ILLUST
2
N @ FUEL INJECTION PIPE & NOZZLE 1
