Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
14528735 V0E14575732 SA7117-34050

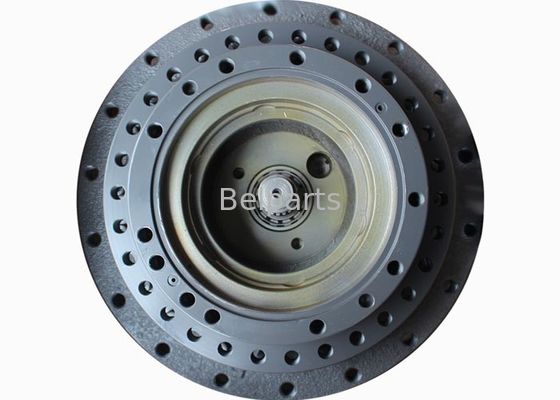

Excavator EC240B travel gearbox 14528735 V0E14575732 SA7117-34050 gear reduction
Product Description
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 8277587 | |||
| VOE 14528735 | Travel motor, Travel Gearbox | 1 | |
| 1 | SA 7117-34100 | Housing | 1 |
| VOE 14528715 | Housing | 1 | |
| 2 | SA 7117-34110 | Bearing | 2 |
| VOE 14538940 | Bearing | 2 | |
| 3 | SA 7117-34120 | Gear | 1 |
| 4 | SA 9016-21818 | Bolt | 20 |
| 5 | SA 7117-34130 | Seal | 1 |
| VOE 14528720 | Seal | 1 | |
| 6 | SA 9415-43042 | Plug | 3 |
| SA 9415-11042 | Plug | 3 | |
| 7 | SA 7117-34190 | Retainer | 1 |
| 8 | VOE 978932 | Screw | 12 |
| 9 | SA 7117-34200 | Carrier | 1 |
| 10 | SA 7117-34210 | Carrier | 1 |
| 11 | SA 7117-34220 | Planetary Gear | 4 |
| 12 | SA 7117-34230 | Needle Bearing | 8 |
| 13 | SA 7117-34240 | Washer | 8 |
| 14 | SA 7117-34250 | Pin | 4 |
| 15 | SA 9325-08016 | Spring Pin | 4 |
| 16 | SA 7117-34260 | Carrier | 1 |
| VOE 14528721 | Carrier | 1 | |
| 17 | SA 7117-34270 | Carrier | 1 |
| VOE 14528722 | Carrier | 1 | |
| 18 | SA 1036-00310 | Ring | 1 |
| 19 | SA 7117-34280 | Gear | 1 |
| 20 | SA 1036-00300 | Ring | 1 |
| 21 | SA 7117-34290 | Ring | 1 |
| 22 | SA 7117-34300 | Planetary Gear | 3 |
| 23 | SA 7117-34310 | Needle Bearing | 3 |
| 24 | SA 7117-34320 | Washer | 6 |
| 25 | SA 7117-34330 | Pin | 3 |
| 26 | SA 9325-06012 | Spring Pin | 3 |
| 27 | SA 7117-34340 | Carrier | 1 |
| 28 | SA 7117-34350 | Carrier | 1 |
| 29 | SA 7117-34370 | Pin | 3 |
| 30 | SA 9325-06012 | Spring Pin | 3 |
| 31 | SA 7117-34360 | Gear | 1 |
| 32 | SA 7117-34440 | Ring | 1 |
| 33 | SA 7117-34420 | Planetary Gear | 3 |
| 34 | SA 7117-34380 | Needle Bearing | 3 |
| 35 | SA 7117-34390 | Washer | 3 |
| 36 | SA 7117-34400 | Washer | 3 |
| 37 | SA 9541-01034 | Ring | 3 |
| 38 | SA 1036-00290 | Ring | 2 |
| 39 | SA 7117-34430 | Gear | 1 |
| 40 | SA 7117-34410 | Cover | 1 |
| VOE 14517930 | Cover | 1 | |
| 41 | VOE 955922 | Spring Washer | 16 |
| 42 | SA 9011-11007 | Bolt | 16 |
| 43 | SA 7117-34140 | Shim | 1 |
| 44 | SA 7117-34150 | Shim | 1 |
| 45 | SA 7117-34160 | Shim | 1 |
| 46 | SA 7117-34170 | Shim | 1 |
| 47 | SA 1036-00450 | Shim | 1 |
| 48 | SA 1036-00460 | Shim |
1 |
| 49 | SA 9511-12018 | O-ring | 3 |
| 100 | VOE 14526221 | Reduction | 1 |
