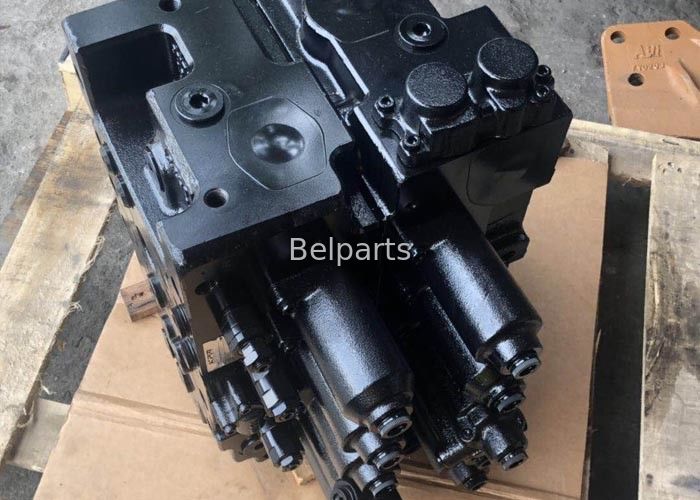

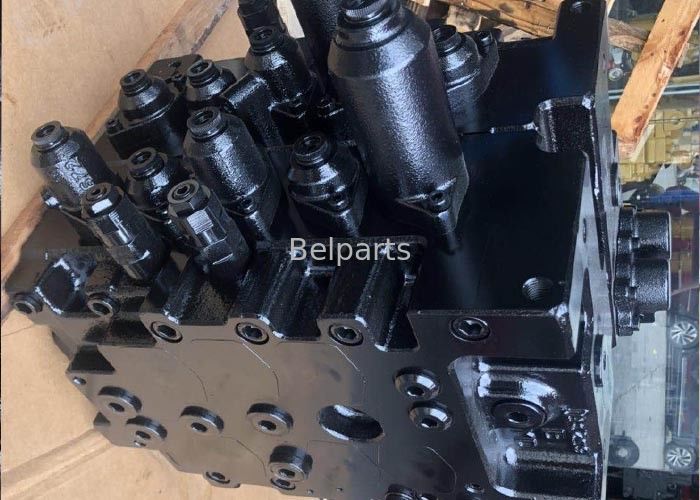

210Kg SK250 Excavator Control Valve B44014B KMX15YD

  • 210Kg SK250 Excavator Control Valve B44014B KMX15YD
  • 210Kg SK250 Excavator Control Valve B44014B KMX15YD
Place of Origin Made in china
Brand Name Belparts
Model Number B44014B
Certifiion OEM
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~7 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SK250 KMX15YD Warranty 1 Year
Weight 210Kg Quality High Quality
Condition 100% New Texture Steel
Color Black MOQ 1PCS
High Light

SK250 Excavator Control Valve

,

B44014B Excavator Control Valve

,

KMX15YD Control Valve
Leave a Message
Product Description

Excavator B44014B distirbute valve SK250 KMX15YD control valve



Product Description

Appliion
Excavator
Part name
MCV
Model
SK250 KMX15YD
Part number
B44014B
Warranty
Negotiable
Payment term
T/T, Western union, paypal, trade assurance or as required
After sales service
Online



210Kg SK250 Excavator Control Valve B44014B KMX15YD 0



210Kg SK250 Excavator Control Valve B44014B KMX15YD 1
Pos. Part No Qty Parts name Comments
. . 2436U2816F2 [1] CONTROL VALVE KOB ASSY, CONSISTS OF THE FOLLOWING PARTS:
101. NSS [1] NOT SOLD SEPARAT CON BLOCK, TRAVEL
102. NSS [1] NOT SOLD SEPARAT CON CASE
103. NSS [1] NOT SOLD SEPARAT CON CASE
152. 2436U1165S152 [27] PLUG KOB
153. 2441U732S461 [3] PLUG KOB PLUG Superseded by part number: 2436U2080S8
154. 2436U1165S154 [6] PLUG KOB
156. 2436U1165S156 [4] PLUG KOB
157. 2436U1165S157 [2] PLUG KOB Superseded by part number: 2436U1265S157
158. 2436U1207S155 [5] PLUG KOB
161. ZD12P03800 [8] O-RING KOB ID 37.70 ± 0.37 x OD 44.7mm
162. 2436U1345S162 [6] O-RING KOB
163. ZD12P01500 [2] O-RING KOB ID 14.80 ± 0.20 x OD 19mm
164. ZD12P01400 [7] O-RING KOB ID 13.80 ± 0.19 x OD 18mm
166. ZD12P01100 [3] O-RING KOB ID 10.8mm x OD 13.2mm
168. ZD12P00800 [5] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
171. 2436U1219S153 [1] PLUG KOB
172. ZD12P01800 [1] O-RING KOB ID 17.8mm x OD 20.2mm
201. 2436U1165S201 [3] COVER KOB
202. 2436U1434S202 [2] COVER COVER
203. 2436U1165S203 [2] COVER KOB
205. 2436U1165S205 [1] COVER KOB
206. 2436U1165S206 [1] COVER KOB
207. 2436U2598S207 [2] COVER KOB
251. 2436U1165S251 [5] PLUG KOB
261. 2436U1372S261 [3] O-RING KOB Superseded by part number: YN30V00079S261
263. ZD12G04500 [3] O-RING,44.40mm ID x 50.60mm OD x 3.10mm KOB ID 44.40 ± 0.41 x OD 50mm
264. ZD12P00800 [3] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
265. ZD12G02500 [5] O-RING,24.40mm ID x 30.60mm OD x 3.10mm KOB ID 24.4 ± 0.25 x OD 30mm
266. 2436U1457S162 [4] O-RING,2mm Thk x 39.5mm ID, 90 Duro KOB
273. ZS23C08025 [20] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
301. 2436U2624S19 [2] SPOOL KOB
302. 2436U2521S302 [1] SPOOL KOB
303. 2436U2521S303 [1] SPOOL KOB ASSY.
304. 2436U2521S304 [1] SPOOL KOB
305. 2436U1312S305 [1] SPOOL KOB
306. 2436U2521S306 [2] SPOOL KOB
307. 2436U1231S16 [1] SPOOL KOB
308. 2436U2585F1 [1] VALVE PRESSURE RELIE KOB SEQUENCE, SEE P. 2436U2585-1
322. 2436U1165S371 [1] SPRING KOB
323. 2436U1231S323 [1] SPRING KOB
324. 2436U1165S324 [1] SPRING KOB
325. 2436U1165S325 [1] SPRING KOB
326. 2436U1165S373 [2] SPRING KOB
327. 2436U1231S18 [2] SPRING KOB
328. 2436U2624S328 [2] SPRING KOB
329. 2436U2624S329 [2] SPRING KOB
331. 2436U1434S331 [4] SPRING SEAT KOB
332. 2436U1165S332 [6] SPRING SEAT KOB Superseded by part number: 2436U1443S332
333. 2436U1434S333 [2] SET SCREW KOB
334. 2436U1434S338 [2] STOP KOB
335. 2436U1165S335 [2] STOP KOB PIPE
336. 2436U1165S336 [3] BOLT KOB
337. 2436U1165S337 [5] ROD KOB
338. 2436U1165S338 [1] STOP KOB
351. 2436R885S13 [4] ORIFICE KOB
353. 2436U1165S353 [1] PISTON KOB PISTON
354. 2436U1165S354 [1] SPRING KOB
355. 2436U1165S355 [1] PISTON KOB PISTON Superseded by part number: 2436U1265S355
371. 2436U1165S371 [2] SPRING KOB
372. 2436U1165S372 [2] SPRING KOB
374. 2436U1165S374 [2] SPRING KOB
377. 2436U1231S373 [1] SPRING KOB
378. 2436U2597S14 [1] SPRING SPRING
391. 2436U1231S391 [1] SPOOL KOB
511. 2436U1165S511 [8] POPPET KOB
512. 2483U172S19 [6] BALL KOB
513. 2436U1304S513 [1] POPPET KOB
521. 2436U1165S521 [9] SPRING KOB
541. 2436U1165S541 [1] SEAT/SLOT KOB
542. 2436U1265S542 [1] SEAT/SLOT KOB
543. 2436U1304S543 [1] SEAT/SLOT KOB
544. 2436U1265S543 [1] SEAT/SLOT KOB
551. 2436U1165S551 [1] PLUG KOB
552. 2436U1304S552 [1] PLUG KOB Superseded by part number: 2436U1165S552
561. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
562. ZD12P01000 [1] O-RING KOB ID 09.80 ± 0.17 x OD 13mm
601. 2436U1306F2 [1] VALVE PRESSURE RELIE KOB RELIEF, SEE P. 2436R752-1, 2
602. 2436R683F3 [1] VALVE KOB VALVE, RELIEF, SEE P. 2436R683-1
603. 2436R837F3 [1] VALVE PRESSURE RELIE KOB SEE P. 2436R837-1
611. 2436R685F3 [1] VALVE PRESSURE RELIE KOB RELIEF, SEE P. 2436R685-1
612. 2436U1454S612 [1] POPPET KOB
711. 2436U1207S851 [1] PLUG KOB
712. ZD12P02400 [1] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
971. 2436U1443S971 [1] CAPSCREW
972. 2436U1165S972 [1] CAPSCREW
973. 2436U1443S973 [1] SCREW KOB CAP Superseded by part number: 2436U1165S973
974. 2436U1165S974 [1] SCREW KOB
975. NSS [1] NOT SOLD SEPARAT CON NAME PLATE
