Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
K3V180DT-9C R360 R335

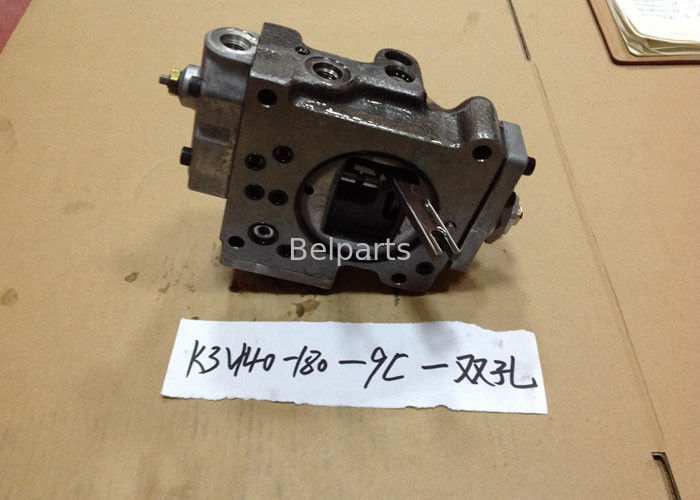

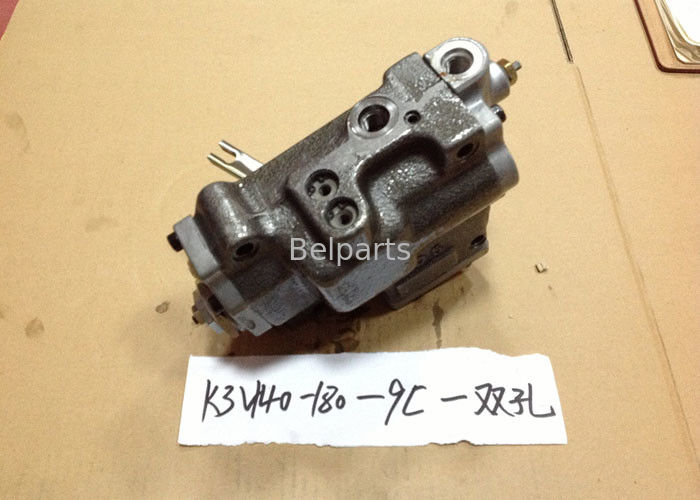

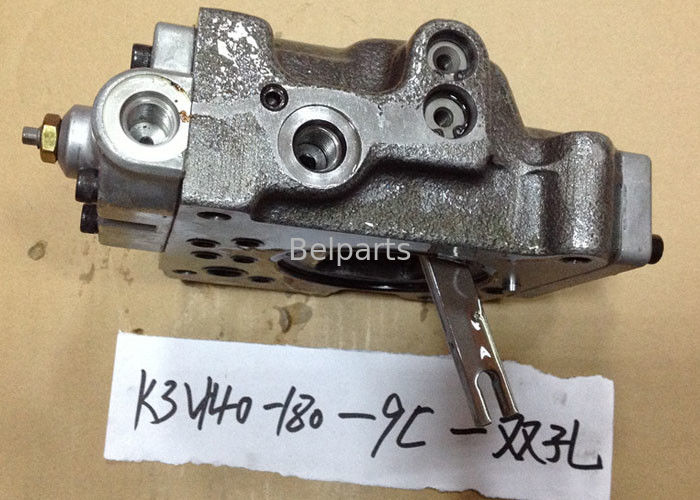

Excavator K3V180DT voltage regulator stabilizer R360 XJBN-00590 pump regulator
|
Product name |
Belparts excavator pressure regulator |
|
Place of Origin: |
China(mainland) |
|
Model: |
K3V180DT-9C R360 R335 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & PayPal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| *-3 | XJBN-00590 | REGULATOR-REAR | 1 | |
| 407 | XJBN-00591 | SCREW-HEX | 4 | |
| 412 | XJBN-00321 | SCREW-HEX | 2 | |
| 413 | XJBN-00320 | SCREW-HEX | 2 | |
| 436 | XJBN-00319 | SCREW-HEX | 2 | |
| 438 | XJBN-00318 | SCREW-HEX | 6 | |
| 482 | XJBN-00356 | PLUG OVP14 |
1 | |
| 496 | XJBN-00032 | PLUG PBP116-2403 |
6 | |
| N541 | XJBN-00036 | SEAT 2953802677 |
2 | |
| N543 | XJBN-00037 | STOPPER 1 2953802678 |
2 | |
| N545 | XJBN-00359 | BALL-STEEL ODW732 |
2 | |
| N601 | XJBN-00578 | CASING 2923290-0016 |
1 | |
| N611 | XJBN-00579 | LEVER-FEED BACK 2953802681 |
1 | |
| N612 | XJBN-00315 | LEVER-1 2953801683 |
1 | |
| N613 | XJBN-00314 | LEVER-2 2953801684 |
1 | |
| N614 | XJBN-00313 | PLUG-CENTER 2953801685 |
1 | |
| N615 | XJBN-00312 | PLUG-ADJUST 2953801686 |
1 | |
| N621 | XJBN-00580 | PISTON 2953801931 |
1 | |
| N622 | XJBN-00581 | CASE-PISTON 2943800524 |
1 | |
| N623 | XJBN-00309 | ROD-COMPENSATOR 2953801689 |
1 | |
| N624 | XJBN-00308 | SEAT(C)-SPRING 2953801690 |
1 | |
| N625 | XJBN-00582 | SPRING-OUTER 2953801929 |
1 | |
| N626 | XJBN-00306 | SPRING-INNER 2953801692 |
1 | |
| N627 | XJBN-00305 | STEM(C)-ADJUST 2953801693 |
1 | |
| KN627 | XJBN-01031 | STEM(C)-ADJUST | 1 | |
| N628 | XJBN-00304 | SCREW(C)-ADJUST 2953801694 |
1 | |
| KN628 | XJBN-01025 | SCREW(C)-ADJUST | 1 | |
| N629 | XJBN-00303 | COVER(C) 2943800443 |
1 | |
| N630 | XJBN-00302 | NUT-LOCK 2953801695 |
1 | |
| N631 | XJBN-00301 | SLEEVE 2953801696 |
1 | |
| N641 | XJBN-00300 | COVER-PILOT 2943800444 |
1 | |
| N642 | XJBN-00299 | SCREW(QMC)-ADJUST 2953801697 |
1 | |
| N643 | XJBN-00298 | PISTON-PILOT 2953801698 |
1 | |
| N644 | XJBN-00297 | SEAT(Q)-SPRING 2953801699 |
1 | |
| N645 | XJBN-00584 | STEM(Q)-ADJUST 2953801700-2 |
1 | |
| N646 | XJBN-00585 | SPRING-PILOT 2953801701 |
1 | |
| N647 | XJBN-00294 | STOPPER 2953801702 |
1 | |
| N648 | XJBN-00293 | PISTON(QMC) 2953801703 |
1 | |
| N651 | XJBN-00292 | SLEEVE 2943800521 |
1 | |
| N652 | XJBN-00291 | SPOOL 2953801706 |
1 | |
| N653 | XJBN-00290 | SEAT-SPRING 2953801707 |
1 | |
| N654 | XJBN-00289 | SPRING-RETURN 2953801746 |
1 | |
| N655 | XJBN-00288 | SPRING-SET 2953801709 |
1 | |
| N697 | XJBN-00587 | PLATE 2924750-0052 |
1 | |
| N699 | XJBN-00592 | CASING-VALVE | 1 | |
| 708 | XJBN-00286 | O-RING | 1 | |
| 722 | XJBN-00285 | O-RING | 3 | |
| 723 | XJBN-00284 | O-RING | 1 | |
| 724 | XJBN-00361 | O-RING OORBP8 |
8 | |
| 725 | XJBN-00231 | O-RING 00RBP10 |
1 | |
| 728 | XJBN-00097 | O-RING 00RBP18 |
1 | |
| 730 | XJBN-00230 | O-RING | 1 | |
| 732 | XJBN-00283 | O-RING 00RBP16 |
2 | |
| 732 | XJBN-00820 | O-RING | 2 | |
| 732 | XJBN-00820 | O-RING | 1 | |
| 733 | XJBN-00282 | O-RING | 1 | |
| 734 | XJBN-00281 | O-RING | 1 | |
| 735 | XJBN-00374 | O-RING | 1 | |
| K753 | XJBN-01026 | O-RING | 1 | |
| 755 | XJBN-00362 | O-RING OORBP11 |
7 | |
| K756 | XJBN-00279 | O-RING | 1 | |
| 763 | XJBN-00094 | O-RING | 1 | |
| 801 | XJBN-00440 | NUT ORNM8 |
3 | |
| 801 | XJBN-00440 | NUT | 2 | |
| K802 | XJBN-01027 | NUT | 1 | |
| 814 | XJBN-00439 | RING-SNAP OSR10 |
1 | |
| N836 | XJBN-00276 | RING-SNAP PWR20 |
1 | |
| 858 | XJBN-00438 | RING-SNAP ORR15 |
2 | |
| N874 | XJBN-00344 | PIN PJR411 |
1 | |
| N875 | XJBN-00273 | PIN PJR408 |
4 | |
| N887 | XJBN-00272 | PIN 2953801817 |
1 | |
| N897 | XJBN-00343 | PIN PJR419 |
1 | |
| N898 | XJBN-00270 | PIN PJR7511 |
1 | |
| 924 | XJBN-00269 | SCREW-SET PSSSM820 |
1 | |
| N925 | XJBN-00588 | SCREW(QI)-ADJUST | 1 | |
| 079 | XJBN-00382 | EPPR VALVE ASSY V9406285784 |
1 | |
| K | XJBN-01195 | REGULATOR KIT | 1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
|
