31n6 10180 Slew Drive Gearbox
,31n6 10180 Drive Gearbox
,31n6 10180 Swing Gearbox

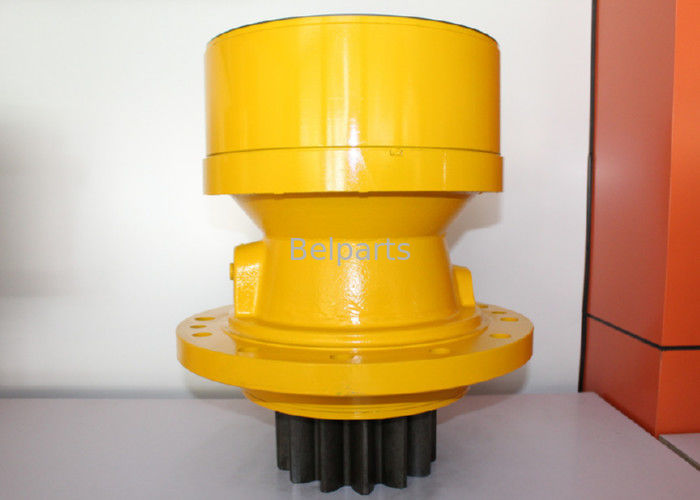

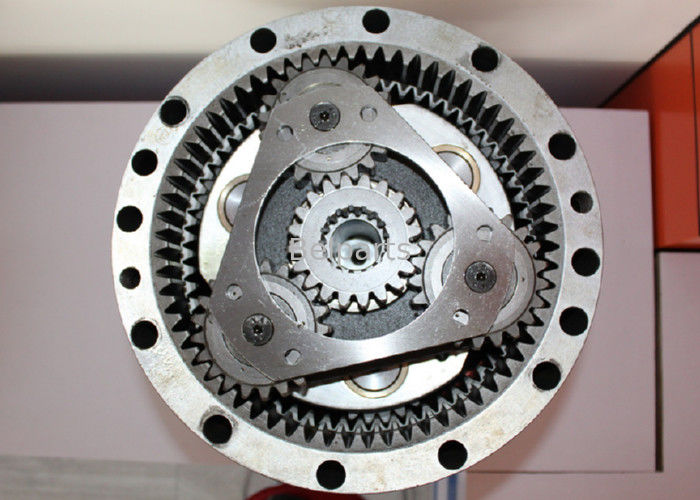

Excavator R210LC-7 hydraulic slew device 31N6-10180 excavator swing gearbox
|
Appliion |
Excavator |
|
Part name |
Swing gearbox |
|
Material |
Steel |
|
Model |
R210LC-7 R215-7 R225-9 |
|
MOQ |
1PC |
|
Payment term |
T/T&Paypal |
|
Delivery Time |
Within 2 days after receiving the payment |
|
Packing |
Standard shipping package |

List of spare parts
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| *-2 | 31N6-10180 | SWING REDUCTION GEAR | 1 |
| 1 | XKAQ-00301 | CASING | 1 |
| 2 | XKAQ-00331 | SHAFT-DRIVE | 1 |
| 3 | XKAQ-00018 | SPACER | 1 |
| 5 | XKAQ-00026 | BEARING-ROLLER | 1 |
| 6 | XKAQ-00032 | SEAL-OIL | 1 |
| 7 | XKAQ-00029 | BEARING-ROLLER | 1 |
| 8 | XKAQ-00076 | PLATE-THRUST | 1 |
| 9 | XKAQ-00075 | CARRIER-2 | 1 |
| 10 | XKAQ-00074 | RING-STOP | 1 |
| 11 | XKAQ-00073 | GEAR-RING | 1 |
| 12 | XKAQ-00072 | PIN-KNOCK | 4 |
| 13 | XKAQ-00014 | GEAR-PINION | 1 |
| 14 | XKAQ-00071 | WASHER-THRUST | 6 |
| 15 | XKAQ-00023 | GEAR-PLANET 2 | 3 |
| 16 | XKAQ-00070 | PIN & BUSHING | 3 |
| 17 | XKAQ-00048 | PIN-SPRING | 6 |
| 18 | XKAQ-00011 | GEAR-SUN 2 | 1 |
| 19 | XKAQ-00015 | CARRIER-1 | 1 |
| 20 | XKAQ-00057 | PLATE-SIDE 1 | 3 |
| 21 | XKAQ-00019 | PIN 1 | 3 |
| 22 | XKAQ-00030 | CAGE-NEEDLE | 3 |
| N23 | @ | FUEL INJECTION PIPE & NOZZLE | 3 |
| 24 | XKAQ-00025 | GEAR-PLANET 1 | 3 |
| 25 | XKAQ-00292 | WASHER-LOCK | 1 |
| 26 | XKAQ-00068 | PLATE-SIDE 3 | 1 |
| 27 | XKAQ-00010 | GEAR-SUN 1 | 1 |
| 29 | XKAQ-00049 | PLUG-PRESSURE | 1 |
| 30 | XKAQ-00066 | PLUG | 2 |
| 31 | XKAQ-00065 | BOLT-SOCKET | 12 |
| 34 | XKAQ-00031 | PLATE-COVER | 1 |
| 35 | XKAQ-00064 | BOLT-HEX | 8 |
| 36 | XKAQ-00296 | PLATE-LOCK | 1 |
| 37 | XKAQ-00042 | BOLT-HEX | 2 |
| 38 | XKAQ-00041 | RING-STOP | 3 |
| 39 | XKAQ-00040 | PLATE-SIDE 2 | 3 |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 |
1 |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
