31E9-01052 Excavator Swing Gearbox
,Excavator Swing Gearbox
,hydraulic Excavator Swing Gearbox

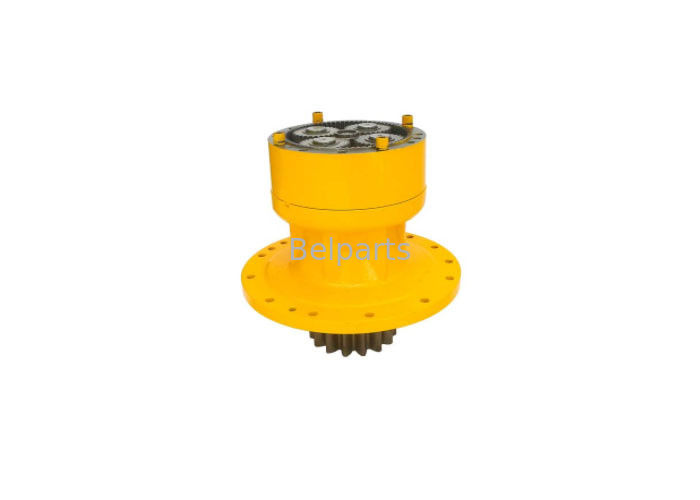

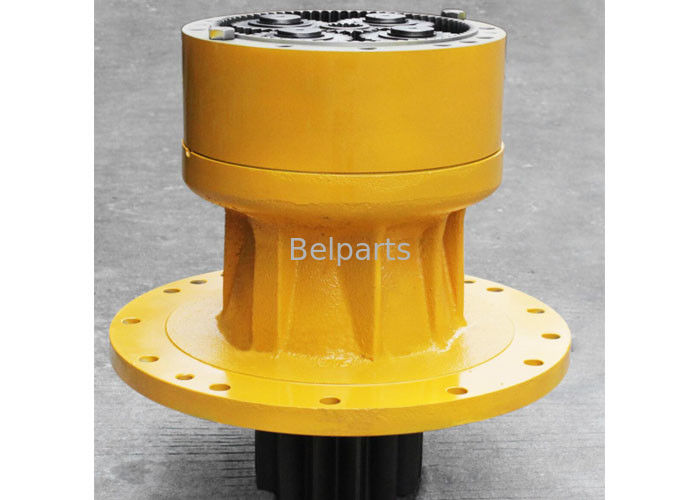

Excavator R305-7 excavator swing gearbox 31E9-01052 hydraulic gearbox
Product Description
|
swing reduction |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R290-7 R305-7 R300-7 R290LC-7 R300LC-7 R305LC-7 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & Paypal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 |
1 |
| *-2 | 31E9-01052 | SWING REDUCTION GEAR | 1 |
| 1 | XKAQ-00141 | CASING-FRONT | 1 |
| 1 | XKAQ-00279 | CASING-FRONT | 1 |
| 1 | XKAQ-00329 | CASING-FRONT | 1 |
| 2 | XKAQ-00003 | CASING-MIDDLE | 1 |
| 3 | XKAQ-00113 | SHAFT-DRIVE | 1 |
| 3 | XKAQ-00328 | SHAFT-DRIVE | 1 |
| 4 | XKAQ-00006 | GEAR-RING 2 | 1 |
| 5 | XKAQ-00022 | GEAR-PLANET 2 | 3 |
| 6 | XKAQ-00012 | GEAR-2 SUN | 1 |
| 7 | XKAQ-00008 | GEAR-RING 1 | 1 |
| 8 | XKAQ-00137 | GEAR-PLANET 1 | 3 |
| 9 | XKAQ-00061 | GEAR-1 SUN | 1 |
| 10 | XKAQ-00016 | CARRIER | 1 |
| * | XKAQ-00021 | PIN ASSY NO.2 | 3 |
| N11 | XKAQ-00060 | PIN ASSY-2 | 3 |
| N32 | XKAQ-00046 | BUSHING 2 | 3 |
| 12 | XKAQ-00059 | WASHER-THRUST | 6 |
| 13 | XKAQ-00058 | BUTTON-THRUST | 1 |
| 14 | XKAQ-00136 | PIN ASSY 1 INC NEEDLE CAGE |
3 |
| 15 | XKAQ-00057 | PLATE-SIDE 1 | 3 |
| 16 | XKAQ-00056 | MAGNET | 4 |
| 17 | XKAQ-00055 | PLATE-SIDE 3 | 1 |
| 18 | XKAQ-00034 | BAR-GAUGE | 1 |
| 19 | XKAQ-00035 | PIPE-GAUGE | 1 |
| 20 | XKAQ-00111 | RING-SPACER | 1 |
| 21 | XKAQ-00053 | PIN-KNOCK | 4 |
| 22 | XKAQ-00028 | BEARING-ROLLER | 1 |
| 23 | XKAQ-00027 | BEARING-ROLLER | 1 |
| 25 | XKAQ-00052 | BOLT-SOCKET | 16 |
| 26 | XKAQ-00051 | BOLT-SOCKET | 12 |
| 27 | XKAQ-00138 | SEAL-OIL | 1 |
| 27 | XKAQ-00280 | SEAL-OIL | 1 |
| 27 | XKAQ-00330 | SEAL-OIL | 1 |
| 28 | XKAQ-00050 | PIN-SPRING | 3 |
| 29 | XKAQ-00049 | PLUG-PRESSURE | 1 |
| 30 | XKAQ-00048 | PIN-SPRING | 3 |
| 31 | XKAQ-00047 | RING-STOP | 1 |
| 33 | XKAQ-00045 | RING-STOP | 1 |
| 34 | XKAQ-00292 | WASHER-LOCK | 1 |
| 35 | XKAQ-00013 | GEAR-PINION | 1 |
| 36 | XKAQ-00296 | PLATE-LOCK | 1 |
| 37 | XKAQ-00042 | BOLT-HEX | 2 |
| 38 | XKAQ-00041 | RING-STOP | 3 |
| 39 | XKAQ-00040 | PLATE-SIDE 2 | 3 |
| 40 | XKAQ-00109 | CIRCLIP | 1 |
| 41 | XKAQ-00110 | V-SEAL | 1 |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
