Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R305-7

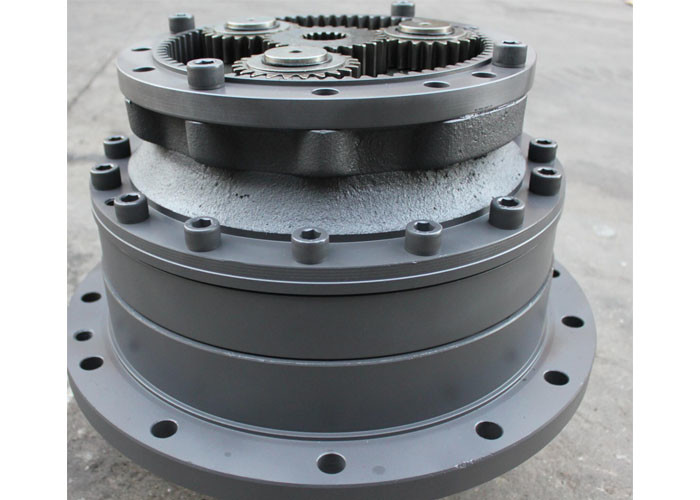

Excavator R305-7 original swing reducer 31E9-01052 swing gearbox
Product Description
swing reduction |
|
Place of Origin: |
China(mainland) |
Model: |
R290-7 R305-7 R300-7 R290LC-7 R300LC-7 R305LC-7 |
MOQ: |
1 PCS |
Payment term: |
T/T & Paypal |
Delivery time: |
Within 2 days after receiving the payment |
Packing: |
Standard exporting packing or as required |
List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 |
1 | |
*-2 | 31E9-01052 | SWING REDUCTION GEAR | 1 | |
1 | XKAQ-00141 | CASING-FRONT | 1 | |
1 | XKAQ-00279 | CASING-FRONT | 1 | |
1 | XKAQ-00329 | CASING-FRONT | 1 | |
2 | XKAQ-00003 | CASING-MIDDLE | 1 | |
3 | XKAQ-00113 | SHAFT-DRIVE | 1 | |
3 | XKAQ-00328 | SHAFT-DRIVE | 1 | |
4 | XKAQ-00006 | GEAR-RING 2 | 1 | |
5 | XKAQ-00022 | GEAR-PLANET 2 | 3 | |
6 | XKAQ-00012 | GEAR-2 SUN | 1 | |
7 | XKAQ-00008 | GEAR-RING 1 | 1 | |
8 | XKAQ-00137 | GEAR-PLANET 1 | 3 | |
9 | XKAQ-00061 | GEAR-1 SUN | 1 | |
10 | XKAQ-00016 | CARRIER | 1 | |
* | XKAQ-00021 | PIN ASSY NO.2 | 3 | |
N11 | XKAQ-00060 | PIN ASSY-2 | 3 | |
N32 | XKAQ-00046 | BUSHING 2 | 3 | |
12 | XKAQ-00059 | WASHER-THRUST | 6 | |
13 | XKAQ-00058 | BUTTON-THRUST | 1 | |
14 | XKAQ-00136 | PIN ASSY 1 INC NEEDLE CAGE |
3 | |
15 | XKAQ-00057 | PLATE-SIDE 1 | 3 | |
16 | XKAQ-00056 | MAGNET | 4 | |
17 | XKAQ-00055 | PLATE-SIDE 3 | 1 | |
18 | XKAQ-00034 | BAR-GAUGE | 1 | |
19 | XKAQ-00035 | PIPE-GAUGE | 1 | |
20 | XKAQ-00111 | RING-SPACER | 1 | |
21 | XKAQ-00053 | PIN-KNOCK | 4 | |
22 | XKAQ-00028 | BEARING-ROLLER | 1 | |
23 | XKAQ-00027 | BEARING-ROLLER | 1 | |
25 | XKAQ-00052 | BOLT-SOCKET | 16 | |
26 | XKAQ-00051 | BOLT-SOCKET | 12 | |
27 | XKAQ-00138 | SEAL-OIL | 1 | |
27 | XKAQ-00280 | SEAL-OIL | 1 | |
27 | XKAQ-00330 | SEAL-OIL | 1 | |
28 | XKAQ-00050 | PIN-SPRING | 3 | |
29 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
30 | XKAQ-00048 | PIN-SPRING | 3 | |
31 | XKAQ-00047 | RING-STOP | 1 | |
33 | XKAQ-00045 | RING-STOP | 1 | |
34 | XKAQ-00292 | WASHER-LOCK | 1 | |
35 | XKAQ-00013 | GEAR-PINION | 1 | |
36 | XKAQ-00296 | PLATE-LOCK | 1 | |
37 | XKAQ-00042 | BOLT-HEX | 2 | |
38 | XKAQ-00041 | RING-STOP | 3 | |
39 | XKAQ-00040 | PLATE-SIDE 2 | 3 | |
40 | XKAQ-00109 | CIRCLIP | 1 | |
41 | XKAQ-00110 | V-SEAL | 1 | |
N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
