Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
PC200-6

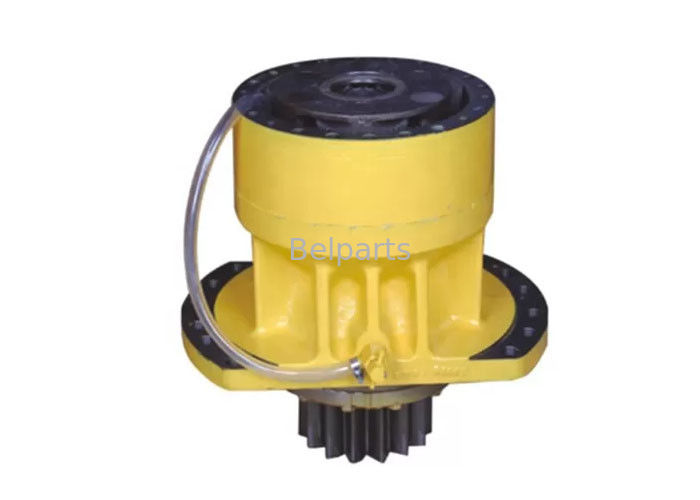

Excavator PC200-6 slewing gearbox swing reducer 20Y-26-00151 swing gearbox
|
Name or description of a commodity |
Swing Gearbox |
|
Production address |
China |
|
Type
|
PC200-6 |
|
Minimum Order Quantity |
1 piece |
|
Payment Method |
T/T & Paypal |
|
Shipping Time |
Within 2 days after receiving The payment |
|
Packaging |
The first layer is packed in plastic and the second in wooden cases |
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 20Y-26-00151 | [1] | SWING MACHINERY A. Komatsu | 190 kg. | |
| ["SN: 102083-UP"] analogs:["20Y2600150"] |$0. | ||||
| 20Y-26-00150 | [1] | SWING MACHINERY A. Komatsu | 190 kg. | |
| ["SN: 96514-102082"] analogs:["20Y2600151"] |$1. | ||||
| 1. | 20Y-26-22210 | [1] | CASE Komatsu | 76 kg. |
| ["SN: 96514-UP"] | ||||
| 2. | 20Y-26-22330 | [1] | BEARING Komatsu China | 3.28 kg. |
| ["SN: 96514-UP"] analogs:["20Y2622331", "20Y2622430"] | ||||
| 3. | 20Y-26-22340 | [1] | BEARING Komatsu China | 9.6 kg. |
| ["SN: 96514-UP"] analogs:["20Y2622342", "20Y2622440"] | ||||
| 4. | 20Y-26-22191 | [1] | COVER Komatsu | 4.6 kg. |
| ["SN: 97767-UP"] analogs:["20Y2622190"] | ||||
| 4. | 20Y-26-22190 | [1] | COVER Komatsu | 4.6 kg. |
| ["SN: 96514-97766"] analogs:["20Y2622191"] | ||||
| 5. | 01010-81045 | [12] | BOLT Komatsu | 0.039 kg. |
| ["SN: 96514-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 6. | 01643-31032 | [12] | WASHER Komatsu | 0.054 kg. |
| ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 7. | 20Y-26-22420 | [1] | SEAL Komatsu China | 0.3 kg. |
| ["SN: 97767-UP"] | ||||
| 7. | 07012-00125 | [1] | SEAL Komatsu China | 0.142 kg. |
| ["SN: 80001-97766"] | ||||
| [-1] | (20Y-26-22420,20Y-26-22191) | |||
| |$$12. | ||||
| 8. | 20Y-26-21141 | [1] | SHAFT, 15 TEETH Komatsu OEM | 35 kg. |
| ["SN: 96514-UP"] analogs:["20Y2621140", "20Y2621142"] | ||||
| 9. | 20Y-26-22170 | [1] | CARRIER Komatsu | 8.55 kg. |
| ["SN: 96514-UP"] | ||||
| 10. | 20Y-26-22141 | [4] | GEAR, 36 TEETH Komatsu China | 1.8 kg. |
| ["SN: 97709-UP"] analogs:["20Y2622140"] | ||||
| 10. | 20Y-26-22140 | [4] | GEAR, 36 TEETH Komatsu China | 1.8 kg. |
| ["SN: 96514-97708"] analogs:["20Y2622141"] | ||||
| 11. | 20G-26-11240 | [4] | BEARING Komatsu China | 0.24 kg. |
| ["SN: 96514-UP"] analogs:["20G2611241", "20G2611410"] | ||||
| 12. | 20Y-27-21240 | [8] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 96514-UP"] | ||||
| 13. | 20Y-26-22250 | [4] | PIN Komatsu China | 0.52 kg. |
| ["SN: 96514-UP"] | ||||
| 14. | 20Y-27-21280 | [4] | PIN Komatsu China | 0.01 kg. |
| ["SN: 96514-UP"] | ||||
| 15. | 20Y-26-21240 | [1] | PLATE Komatsu | 5.1 kg. |
| ["SN: 80001-UP"] | ||||
| 16. | 112-32-11211 | [1] | BOLT Komatsu | 0.09 kg. |
| ["SN: 80001-UP"] | ||||
| 17. | 20Y-26-22151 | [1] | GEAR, 101 TEETH Komatsu | 18.8 kg. |
| ["SN: 102083-UP"] analogs:["20Y2622150"] | ||||
| 17. | 20Y-26-22150 | [1] | GEAR, 101 TEETH Komatsu | 18.8 kg. |
| ["SN: 96514-102082"] analogs:["20Y2622151"] | ||||
| 18. | 20Y-26-22131 | [1] | GEAR, 27 TEETH Komatsu | 2.15 kg. |
| ["SN: 97709-UP"] analogs:["20Y2622130"] | ||||
| 18. | 20Y-26-22130 | [1] | GEAR, 27 TEETH Komatsu | 2.15 kg. |
| ["SN: 96514-97708"] analogs:["20Y2622131"] | ||||
| 19. | 04064-07525 | [1] | RING Komatsu | 0.026 kg. |
| ["SN: 96514-UP"] | ||||
| 20. | 20Y-26-22220 | [1] | THRUST WASHER Komatsu | 0.04 kg. |
| ["SN: 96514-UP"] | ||||
| 21. | 20Y-26-22160 | [1] | CARRIER Komatsu | 5.1 kg. |
| ["SN: 96514-UP"] | ||||
| 22. | 20Y-26-22120 | [3] | GEAR, 39 TEETH Komatsu China | 1.25 kg. |
| ["SN: 96514-UP"] | ||||
| 23. | 20Y-26-21281 | [3] | BEARING Komatsu | 0.1 kg. |
| ["SN: 110071-UP"] analogs:["20Y2621280", "20X2621240", "20Y2621510"] | ||||
| 23. | 20Y-26-21280 | [3] | BEARING Komatsu | 0.1 kg. |
| ["SN: 80001-110070"] analogs:["20Y2621281", "20X2621240", "20Y2621510"] | ||||
| 25. | 20Y-26-22240 | [3] | PIN Komatsu | 0.367 kg. |
| ["SN: 96514-UP"] | ||||
| 27. | 20Y-26-22110 | [1] | GEAR, 22 TEETH Komatsu | 0.4 kg. |
| ["SN: 96514-UP"] | ||||
| 28. | 20Y-26-22230 | [1] | THRUST WASHER Komatsu | 0.1 kg. |
| ["SN: 96514-UP"] | ||||
| 29. | 20Y-26-22410 | [1] | COVER Komatsu China | |
| ["SN: 96514-UP"] | ||||
| 30. | 01011-81450 | [4] | BOLT Komatsu China | |
| ["SN: 96514-UP"] | ||||
| 31. | 01643-31445 | [4] | WASHER Komatsu | 0.019 kg. |
| ["SN: 96514-UP"] analogs:["0164301432"] | ||||
| 32. | 07042-30617 | [1] | PLUG Komatsu China | |
| ["SN: 96514-UP"] | ||||
| 33. | 07042-30108 | [1] | PLUG Komatsu | 0.008 kg. |
| ["SN: 96514-UP"] analogs:["0704220108"] | ||||
| 34. | 07042-30415 | [1] | PLUG Komatsu | 0.056 kg. |
| ["SN: 96514-UP"] | ||||
