Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R320LC-7

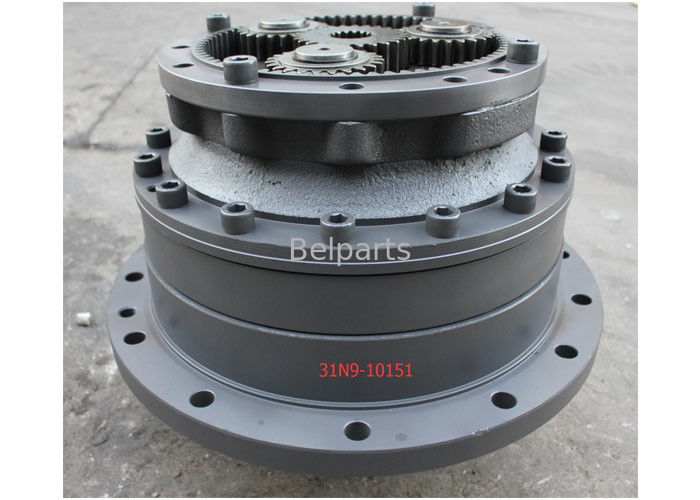

Excavator R320LC-7 excavator swing motor slew 31N9-1051 gearbox
Product Description
|
swing reduction |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R320LC-7 |
|
Part Name: |
31N9-1051 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & Paypal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |

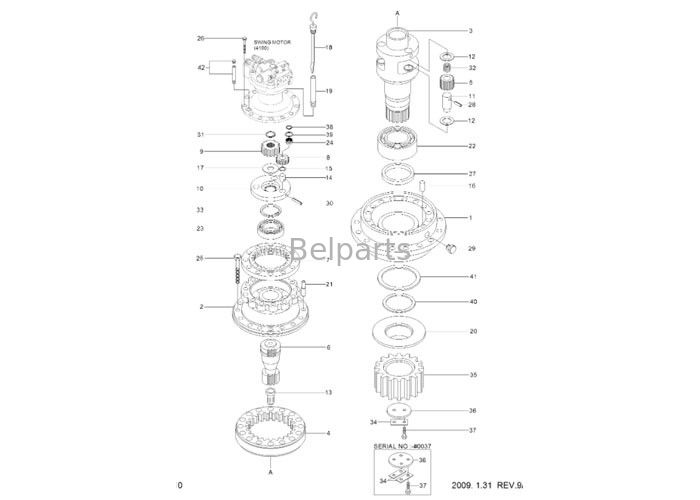

List of spare parts
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| N*-2. | 31N9-10151 | [1] | SWING REDUCTION GEAR |
| N*-2. | 31N9-10152 | [1] | SWING REDUCTION GEAR |
| 1. | XKAQ-00106 | [1] | CASING-FRONT |
| 1. | XKAQ-00141 | [1] | CASING-FRONT |
| 1. | XKAQ-00279 | [1] | CASING-FRONT |
| 1. | XKAQ-00329 | [1] | CASING-FRONT |
| 2. | XKAQ-00003 | [1] | CASING-MIDDLE |
| 3. | XKAQ-00328 | [1] | SHAFT-DRIVE |
| 4. | XKAQ-00006 | [1] | GEAR-RING 2 |
| 4. | XKAQ-00172 | [1] | GEAR-RING |
| 5. | XKAQ-00022 | [3] | GEAR-PLANET 2 |
| 6. | XKAQ-00012 | [1] | GEAR-2 SUN |
| 7. | XKAQ-00008 | [1] | GEAR-RING 1 |
| 8. | XKAQ-00024 | [3] | GEAR-PLANET 1 |
| 8. | XKAQ-00137 | [3] | GEAR-PLANET 1 |
| 9. | XKAQ-00009 | [1] | GEAR-1 SUN |
| 10. | XKAQ-00016 | [1] | CARRIER |
| *. | XKAQ-00021 | [3] | PIN ASSY NO.2 |
| N11. | XKAQ-00060 | [3] | PIN ASSY-2 |
| N32. | XKAQ-00046 | [3] | BUSHING 2 |
| 12. | XKAQ-00059 | [6] | WASHER-THRUST |
| 13. | XKAQ-00058 | [1] | BUTTON-THRUST |
| 14. | XKAQ-00019 | [3] | PIN 1 |
| 14. | XKAQ-00136 | [3] | PIN ASSY 1 |
| 15. | XKAQ-00057 | [3] | PLATE-SIDE 1 |
| 16. | XKAQ-00056 | [6] | MAGNET |
| 17. | XKAQ-00055 | [1] | PLATE-SIDE 3 |
| 18. | XKAQ-00034 | [1] | BAR-GAUGE |
| 19. | XKAQ-00035 | [1] | PIPE-GAUGE |
| 20. | XKAQ-00108 | [1] | RING-SPACER |
| 20. | XKAQ-00111 | [1] | RING-SPACER |
| 21. | XKAQ-00053 | [4] | PIN-KNOCK |
| 21. | XKAQ-00053 | [2] | PIN-KNOCK |
| 22. | XKAQ-00028 | [1] | BEARING-ROLLER |
| 23. | XKAQ-00027 | [1] | BEARING-ROLLER |
| 24. | XKAQ-00030 | [3] | CAGE-NEEDLE |
| 25. | XKAQ-00052 | [16] | BOLT-SOCKET |
| 26. | XKAQ-00051 | [12] | BOLT-SOCKET |
| 27. | XKAQ-00033 | [1] | SEAL-OIL |
| 27. | XKAQ-00138 | [1] | SEAL-OIL |
| 27. | XKAQ-00280 | [1] | SEAL-OIL |
| 27. | XKAQ-00330 | [1] | SEAL-OIL |
| 28. | XKAQ-00050 | [3] | PIN-SPRING |
| 29. | XKAQ-00049 | [1] | PLUG |
| 30. | XKAQ-00048 | [3] | PIN-SPRING |
| 31. | XKAQ-00047 | [1] | RING-STOP |
| 33. | XKAQ-00045 | [1] | RING-STOP |
| 34. | XKAQ-00044 | [2] | WASHER-LOCK |
| 34. | XKAQ-00292 | [1] | WASHER-LOCK |
| 35. | XKAQ-00105 | [1] | GEAR-PINION |
| 36. | XKAQ-00043 | [1] | PLATE-LOCK |
| 36. | XKAQ-00296 | [1] | PLATE-LOCK |
| 37. | XKAQ-00042 | [4] | BOLT-HEX |
| 37. | XKAQ-00042 | [2] | BOLT-HEX |
| 38. | XKAQ-00041 | [3] | RING-STOP |
| 39. | XKAQ-00040 | [3] | PLATE-SIDE 2 |
| 40. | XKAQ-00109 | [1] | CIRCLIP |
| 41. | XKAQ-00110 | [1] | V-SEAL |
| 42. | XKAQ-00143 | [1] | AIR BREATHER ASSY |
| N. | @ | [1] |
NOT SUPPLIED PARTS |
