Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R360LC-7 R360-7 R370LC-7 R370-7

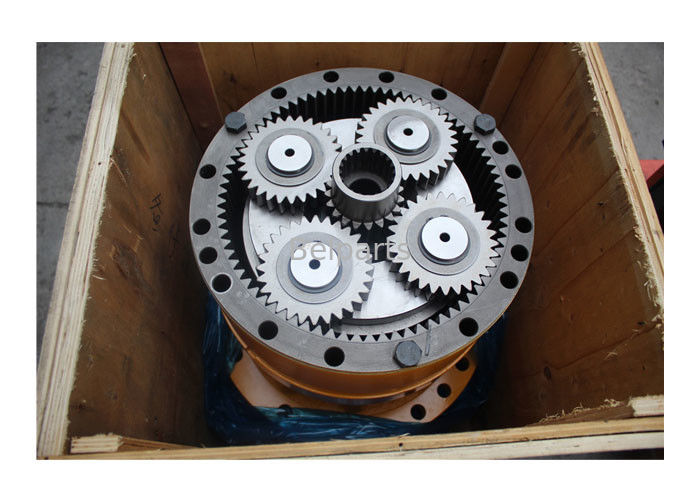

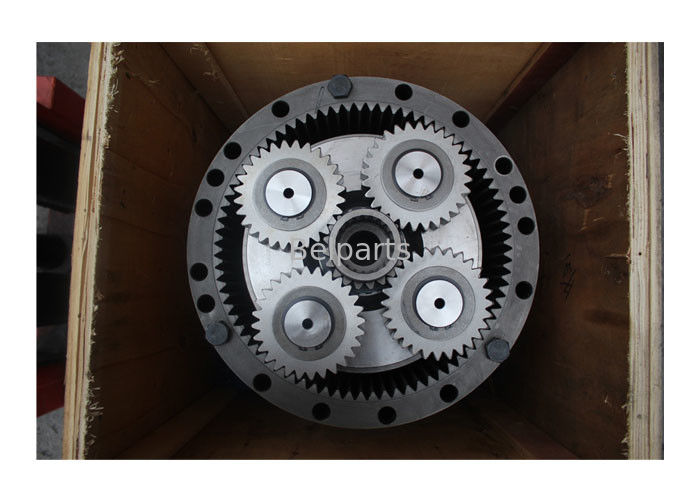

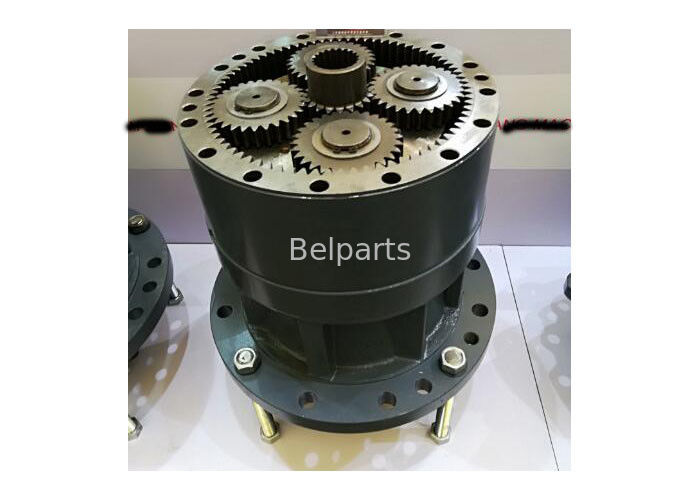

Excavator R360-7 excavator swing motor R370-7 hydraulic 31NA-10152 gear motor
Product Description
|
swing reduction |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R360LC-7 R360-7 R370LC-7 R370-7 |
|
Part Name: |
31NA-10150 31NA-10151 31NA-10152 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & Paypal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| *-2. | 31NA-10150 | [1] | SWING REDUCTION GEAR |
| *-2. | 31NA-10151 | [1] | SWING REDUCTION GEAR |
| *-2. | 31NA-10152 | [1] | REDUCTION GEAR |
| 1. | XKAQ-00144 | [1] | CASING |
| 1. | XKAQ-00773 | [1] | CASING |
| 2. | XKAQ-00300 | [1] | SHAFT-DRIVE |
| 2. | XKAQ-00739 | [1] | SHAFT-DRIVE |
| 3. | XKAQ-00146 | [1] | BEARING-ROLLER |
| 4. | XKAQ-00147 | [1] | PLATE-COVER |
| 4. | XKAQ-00747 | [1] | PLATE-COVER |
| 5. | XKAQ-00148 | [8] | BOLT-HEX |
| 6. | XKAQ-00149 | [1] | SEAL-OIL |
| 7. | XKAQ-00027 | [1] | BEARING-ROLLER |
| *. | XKAQ-00264 | [1] | CARRIER ASSY-NO 2 |
| 8. | XKAQ-00251 | [1] | CARRIER 2 |
| 8. | XKAQ-00740 | [1] | CARRIER 2 |
| 10. | XKAQ-00776 | [4] | GEAR-PLANET 2 |
| 10. | XKAQ-00741 | [4] | GEAR-PLANETARY 2 |
| 11. | XKAQ-00254 | [4] | PIN 2 |
| N12. | @ | [4] | BUSHING |
| N33. | @ | [4] | PIN-SPRING |
| 13. | XKAQ-00050 | [4] | PIN-SPRING |
| 14. | XKAQ-00156 | [4] | WASHER-THRUST |
| 14. | XKAQ-00411 | [4] | WASHER |
| *. | XKAQ-00262 | [1] | CARRIER ASSY-NO 1 |
| 15. | XKAQ-00325 | [1] | CARRIER 1 |
| 15. | XKAQ-00743 | [1] | CARRIER 1 |
| 16. | XKAQ-00257 | [1] | GEAR-SUN 1 |
| 16. | XKAQ-00746 | [4] | GEAR-SUN 1 |
| 17. | XKAQ-00777 | [4] | GEAR-PLANET 1 |
| 17. | XKAQ-00774 | [4] | GEAR-PLANET 1 |
| 18. | XKAQ-00019 | [4] | PIN 1 |
| 18. | XKAQ-00415 | [4] | PIN 1 |
| 19. | XKAQ-00030 | [4] | CAGE-NEEDLE |
| 20. | XKAQ-00040 | [4] | PLATE-SIDE 2 |
| 20. | XKAQ-00416 | [4] | PLATE 2-SIDE |
| 21. | XKAQ-00048 | [4] | PIN-SPRING |
| 22. | XKAQ-00258 | [1] | GEAR-RING |
| 22. | XKAQ-00420 | [1] | GEAR-RING |
| 23. | XKAQ-00072 | [2] | PIN-KNOCK |
| 24. | XKAQ-00259 | [16] | BOLT-SOCKET |
| 25. | XKAQ-00162 | [1] | SPACER |
| 25. | XKAQ-00775 | [1] | SPACER |
| 26. | XKAQ-00163 | [1] | GEAR-PINION |
| 26. | XKAQ-00749 | [1] | GEAR-PINION |
| 27. | XKAQ-00299 | [1] | PLATE-LOCK |
| 28. | XKAQ-00042 | [4] | BOLT-HEX |
| 29. | XKAQ-00041 | [4] | RING-STOP |
| 30. | XKAQ-00273 | [1] | PLUG |
| 31. | XKAQ-00274 | [2] | PLUG |
| 32. | XKAQ-00057 | [4] | PLATE-SIDE 1 |
| 32. | XKAQ-00417 | [4] | PLATE 1-SIDE |
| 33. | XKAQ-00165 | [4] | PIN-SPRING |
| 34. | XKAQ-00166 | [1] | BAR-GAUGE |
| 35. | XKAQ-00167 | [1] | PIPE-GAUGE |
| 36. | XKAQ-00292 | [2] | WASHER-LOCK |
| 37. | XKAQ-00169 | [1] | COVER |
| 37. | XKAQ-00750 | [1] | COVER |
| 38. | XKAQ-00170 | [4] | BOLT-SOCKET |
| 39. | XKAQ-00155 | [1] | PLUG-SOCKET |
| 40. | XKAQ-00171 | [1] | RING-SPACER |
| 42. | XKAQ-00143 | [1] | POST-AIR BREATHER |
| 42. | XKAQ-00798 | [1] | AIR BREATHER ASSY |
| 42-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER |
| 42-2. | XKAQ-00799 | [1] | POST AIR BREATHER |
| 43. | XKAQ-00260 | [1] | RING-THRUST |
| 43. | XKAQ-00422 | [1] | RING-THRUST |
| 44. | XKAQ-00252 | [1] | GEAR-SUN 2 |
| 44. | XKAQ-00745 | [1] | GEAR-SUN 2 |
| 45. | XKAQ-00751 | [1] | O-RING |
| N. | @ | [1] | NOT SUPPLIED PARTS |
