31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

Model Number R305-9 R330-9 R290-9
Certifiion OEM
Minimum Order Quantity 1 piece
Price Negotiable price
Packaging Details Wooden packing
Payment Terms T/T, Paypal and Alibaba Trade Assurance
Supply Ability 1000pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Guangdong, China Brand Name Belparts
Delivery Time 1-7 Days Model Name R305-9 R330-9 R290-9
Packing Wooden Case Part Number 31Q8-11141 31Q9-19140
Condition New MOQ 1PC
High Light

31q9 19140 Swing Device

,

31q9 19140

,

31Q8 11141 Swing Device

Leave a Message
Product Description

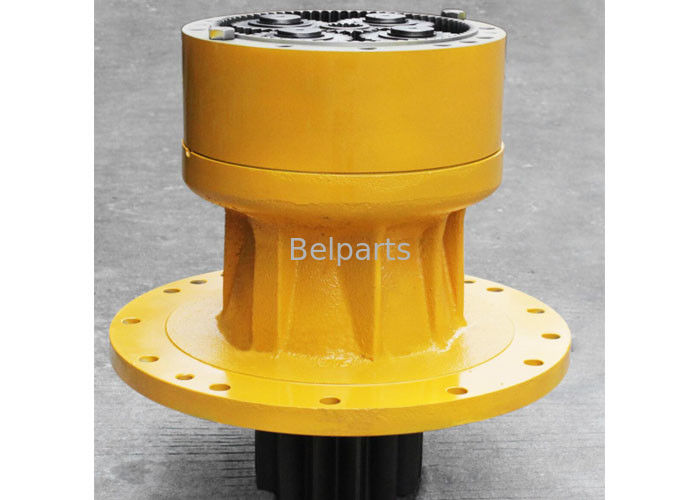

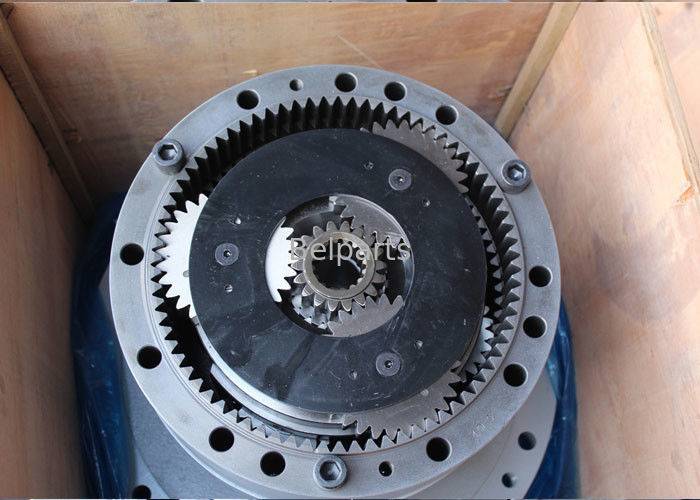

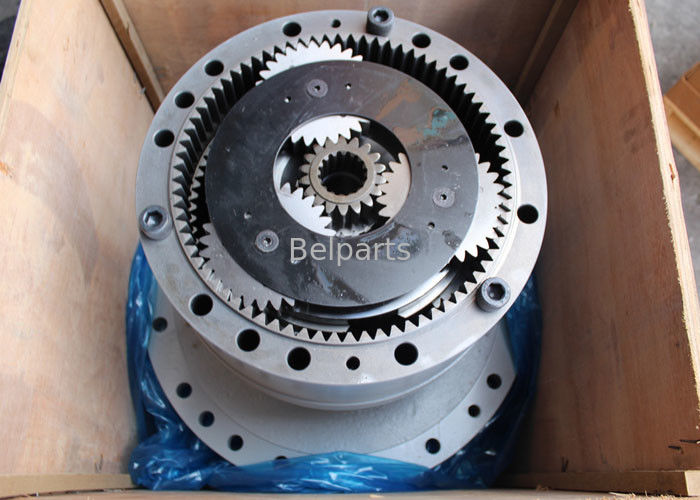

Excavator R305-9 swing drive gearbox R330-9 31Q9-19140 excavator swing device



Product name:

swing reduction

Place of Origin:

China(mainland)

 Model:

R305-9 R330-9 R290-9
Part Number:
31Q8-11141 31Q9-19140

MOQ:

1 PCS

Payment term:

T/T &  Paypal

Delivery time:

Within 2 days after receiving the payment

Packing:

Standard exporting packing or as required



31Q8-11141 31Q9-19140 Swing Device Excavator R305-9  R330-9 0

List of spare parts


Pos. Part No Qty Parts name
*-2. 31Q9-19140 [1] SWING REDUCTION GEAR
*-2. 31Q9-19140AR [1] SWING REDUCTION GEAR
1. XKAQ-00451 [1] CASING
2. XKAQ-00760 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00149 [1] SEAL-OIL
5. XKAQ-00027 [1] BEARING-ROLLER
6. XKAQ-00467 [1] CARRIER ASSY 2
7. XKAQ-00468 [1] CARRIER 2
8. XKAQ-00469 [4] GEAR-PLANET 2
9. XKAQ-00470 [4] PIN ASSY 2
N10. XKAQ-00471 [1] PIN 2
N11. XKAQ-00472 [1] BUSHING 2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00473 [1] CARRIER ASSY 1
15. XKAQ-00453 [1] CARRIER 1
16. XKAQ-00454 [3] GEAR-PLANET 1
17. XKAQ-00440 [3] PIN ASSY 1
N18. XKAQ-00441 [3] PIN 1
N19. XKAQ-00079 [3] BUSHING 1
20. XKAQ-00417 [3] PLATE 1-SIDE
21. XKAQ-00416 [3] PLATE 2-SIDE
22. XKAQ-00041 [3] RING-STOP
23. XKAQ-00048 [3] PIN-SPRING
24. XKAQ-00455 [1] GEAR 2-SUN
25. XKAQ-00456 [1] GEAR 1-SUN
26. XKAQ-00457 [1] RING-GEAR
27. XKAQ-00466 [12] BOLT-SOCKET
28. XKAQ-00626 [1] COVER PLATE
29. XKAQ-00064 [8] BOLT-HEX
30. XKAQ-00627 [1] SPACER
31. XKAQ-00628 [1] RING-SPACER
32. XKAQ-00447 [1] PLATE 3-THRUST
33. XKAQ-00629 [1] GEAR-PINION
34. XKAQ-00761 [1] PLATE-LOCK
35. XKAQ-00756 [4] BOLT-HEX
36. XKAQ-00049 [1] PLUG
37. XKAQ-00066 [2] PLUG
38. XKAQ-00072 [2] PIN-KNOCK
N39. XKAQ-00631 [4] BUSHING 2
40. XKAQ-00800 [1] AIR BREATHER ASSY
1. XKAQ-00451 [1] CASING
1. XKAQ-00996 [1] CASING
2. XKAQ-00760 [1] SHAFT-DRIVE
2. XKAQ-00997 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00149 [1] SEAL-OIL
5. XKAQ-00027 [1] BEARING-ROLLER
6. XKAQ-00467 [1] CARRIER ASSY 2
7. XKAQ-00468 [1] CARRIER 2
8. XKAQ-00469 [4] GEAR-PLANET 2
9. XKAQ-00470 [4] PIN ASSY 2
N10. XKAQ-00471 [1] PIN 2
N11. XKAQ-00472 [1] BUSHING 2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00473 [1] CARRIER ASSY 1
15. XKAQ-00453 [1] CARRIER 1
16. XKAQ-00454 [3] GEAR-PLANET 1
17. XKAQ-00440 [3] PIN ASSY 1
N18. XKAQ-00441 [3] PIN 1
N19. XKAQ-00079 [3] BUSHING 1
20. XKAQ-00417 [3] PLATE 1-SIDE
21. XKAQ-00416 [3] PLATE 2-SIDE
22. XKAQ-00041 [3] RING-STOP
23. XKAQ-00048 [3] PIN-SPRING
24. XKAQ-00455 [1] GEAR 2-SUN
25. XKAQ-00456 [1] GEAR 1-SUN
26. XKAQ-00457 [1] RING-GEAR
26. XKAQ-00998 [1] GEAR-RING
27. XKAQ-00466 [12] BOLT-SOCKET
28. XKAQ-00626 [1] COVER PLATE
29. XKAQ-00064 [8] BOLT-HEX
30. XKAQ-00627 [1] SPACER
30. XKAQ-00999 [1] SPACER
31. XKAQ-00628 [1] RING-SPACER
32. XKAQ-00447 [1] PLATE 3-THRUST
33. XKAQ-00629 [1] GEAR-PINION
33. XKAQ-01000 [1] GEAR-PINION
34. XKAQ-00757 [1] PLATE-LOCK
35. XKAQ-00756 [4] BOLT-HEX
36. XKAQ-00049 [1] PLUG
37. XKAQ-00066 [2] PLUG
38. XKAQ-00072 [2] PIN-KNOCK
38. XKAQ-01001 [2] PIN-KNOCK
39. XKAQ-00800 [1] AIR BREATHER ASSY
N40. XKAQ-00631 [4] BUSHING 2
N. @ [AR] NOT SUPPLIED PARTS
