2425U261F1 Small Slewing Ring , SK75UR Swing Bearing Excavator

2425U261F1 Small Slewing Ring , SK75UR Swing Bearing Excavator

2425U261F1 Small Slewing Ring

SK75UR Swing Bearing Excavator

2425U261F1 Swing Bearing Excavator

Place of Origin:

Made in china

Brand Name:

Belparts

Model Number:

2425U261F1

Contact Us
Request A Quote
Product Details
Model:
SK75UR
Warranty:
1 Year
Weight:
110Kg
Condition:
100% New
Quality:
High Quality
Part Name:
Slew Bearing
Texture:
Steel
Part Number:
2425U261F1
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiated price
Packaging Details
Wooden case
Delivery Time
1~7 days
Payment Terms
T/T,Alibaba trade assurance,PayPal
Supply Ability
1000PCS
Product Description

Excavator 2425U261F1 slewing ring bearing SK75UR swing bearing



Product Description


Appliion
Crawler excavator
Part name
Slew ring bearing
Model
SK75UR
Part number
2425U261F1
Warranty
Negotiable
Payment term
T/T, paypal, trade assurance or as required
After sales service
Online

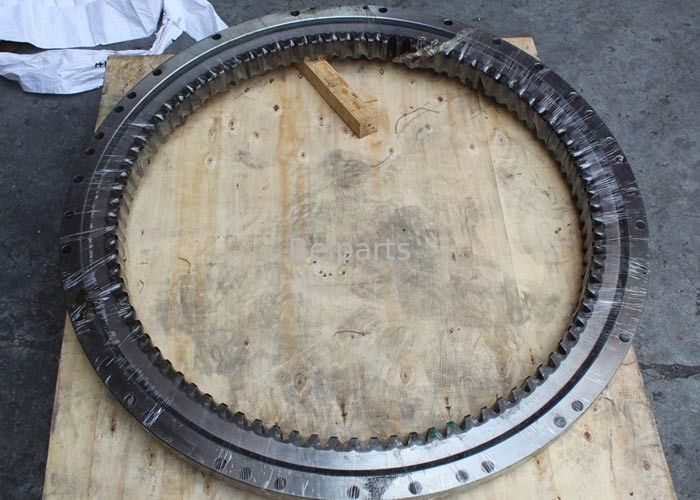

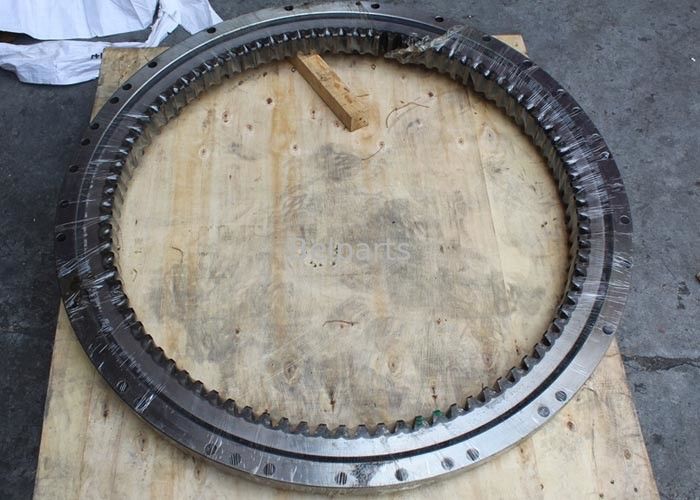

2425U261F1 Small Slewing Ring , SK75UR Swing Bearing Excavator 0

Pos. Part No Qty Parts name Comments
. . LP40F00001F1 [1] RING KOB Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1 Superseded by part number: LP40F00001F4
1. 24100N7529F1 [1] RING KOB Slewing Assembly, Incls. Refs. 1-1 - 1-9, Service Replacement
1-1. 2425N373F1 [1] RACE KOB Outer
1-1A. NA [1] NOT SERVICED FOR Race, Outer
1-1B. 2420T4543D2 [1] PLUG KOB
1-1C. 2419T1964D7 [1] PIN,10mm OD x 56mm L KOB Taper -- OD 10 x 56mm Long
1-2. 2401N443 [1] RACE KOB Inner
1-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
1-4. 2425T322 [108] RETAINER KOB
1-5. 2445P165D6 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-6. 2445P165D5 [1] SEAL KOB Superseded by part number: YN40F01024D4
1-7. 2432T1265 [1] LABEL KOB Name Plate Superseded by part number: YN22T00191P1
1-8. 4020Z64 [2] RIVET KOB OD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7
1-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
1-10. 2414Z307 [1] CAP KOB
3. ZS13C16045 [36] SCREW KOB Screw -- M16x2.0x45mm
. . 2445P114D7 [1] SEAL KIT KOB Kit -- Contains Items 1-5 & 1-6 Superseded by part number: YN40F01024D4
. . LP40F00001F2 [1] Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1
2. YW40F00001F1 [1] SLEWING RING KOB Superseded by part number: 24100N7529F1
2-1. NSS [1] NOT SOLD SEPARAT CON
2-2. NSS [1] NOT SOLD SEPARAT CON
2-3. 2425T321 [108] BALL KOB Ø25.4mm (1 in) Steel
2-4. 2425U238S4 [108] CAP
2-5. NSS [1] NOT SOLD SEPARAT CON
2-6. 2425U238S6 [1] PIN KOB TAPER
2-7. YW40F00001S007 [1] SEAL KOB
2-8. 2425U238S8 [1] SEAL KOB
2-9. ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight
