Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R60-7

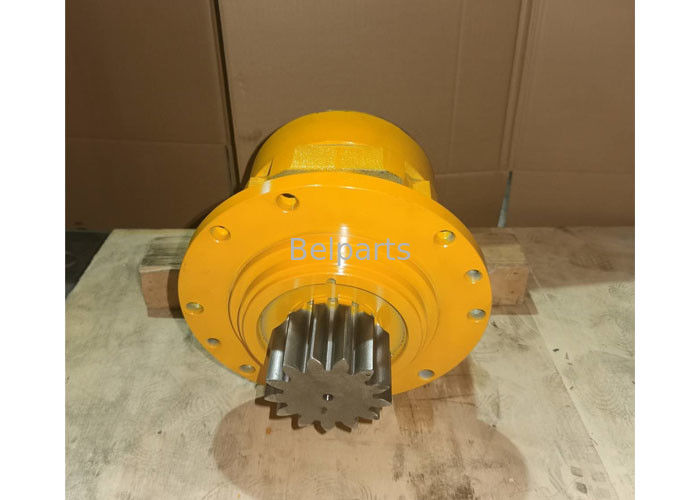

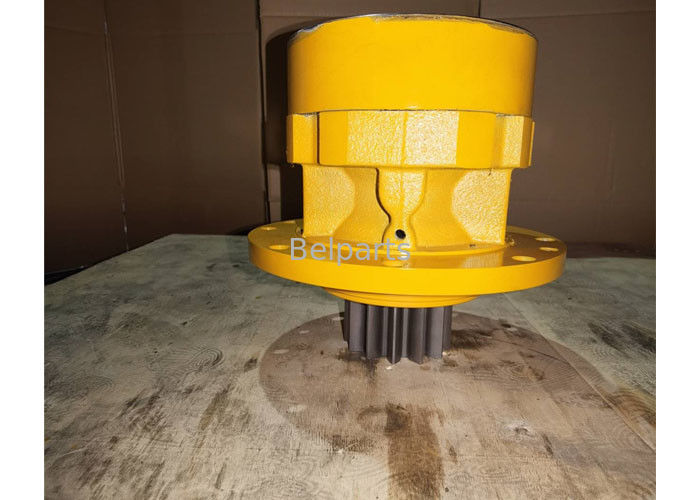

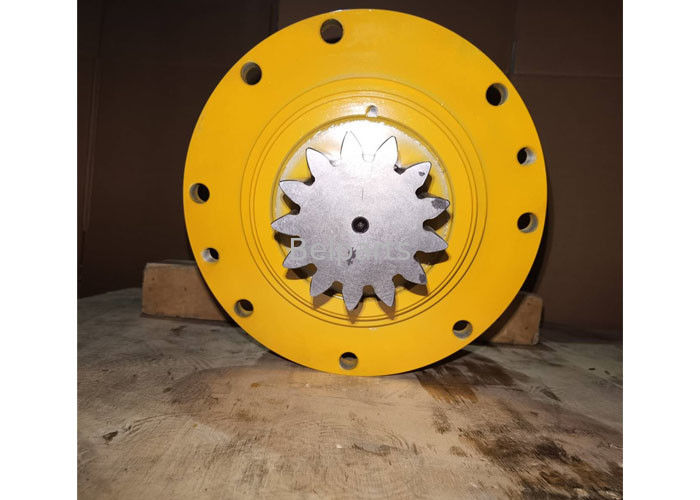

Excavator swing reduction R60-7 31M8-10140 excavator swing gearbox
Product Description
Appliion |
Excavator |
Part name |
Travel reduction gearbox |
Model |
R60-7 |
Part number |
31M8-10140 |
MOQ |
1PC |
Warranty |
6 months |
Payment term |
T/T, PayPal |
Delivery |
1 day after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of Spare Parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | @ | FUEL INJECTION PIPE & NOZZLE SEE 4210 |
1 | |
*-2 | 31M8-10140 | SWING REDUCTION GEAR | 1 | |
1 | XKBR-00001 | SHAFT-DRIVE | 1 | |
2 | XKBR-00002 | COVER-BEARING | 1 | |
3 | XKBR-00003 | BEARING-TAPER ROLLER | 1 | |
4 | XKBR-00004 | CASE | 1 | |
5 | XKBR-00005 | SEAL-OIL | 1 | |
6 | XKBR-00006 | BEARING-TAPER ROLLER | 1 | |
7 | XKBR-00007 | SUN GEAR NO.2 | 1 | |
8 | XKBR-00008 | BOLT-SOCKET | 6 | |
9 | XKBR-00009 | SUN GEAR NO.1 | 1 | |
10 | XKBR-00010 | CARRIER ASSY NO.1 | 1 | |
10-1 | XKBR-00020 | CARRIER NO.1 | 1 | |
10-2 | XKBR-00021 | GEAR-PLANET NO.1 | 3 | |
10-3 | XKBR-00022 | PIN NO.1 | 3 | |
10-4 | XKBR-00023 | BUSHING NO.1 | 3 | |
10-5 | XKBR-00024 | WASHER-THRUST NO.1 | 3 | |
10-6 | XKBR-00025 | WASHER-THRUST NO.3 | 1 | |
10-7 | XKBR-00032 | RING-SNAP | 3 | |
10-8 | XKBR-00033 | WASHER-THRUST NO.4 | 3 | |
11 | XKBR-00011 | GEAR-RING | 1 | |
12 | XKBR-00012 | CARRIER ASSY NO.2 | 1 | |
12-1 | XKBR-00026 | WASHER-THRUST NO.2 | 3 | |
12-2 | XKBR-00027 | CARRIER NO.2 | 1 | |
12-3 | XKBR-00028 | GEAR-PLANET NO.2 | 3 | |
12-4 | XKBR-00029 | PIN NO.2 | 3 | |
12-5 | XKBR-00030 | BUSHING NO.2 | 3 | |
12-6 | XKBR-00031 | PIN-SPRING | 3 | |
13 | XKBR-00013 | PIN-DOWEL | 2 | |
14 | XKBR-00014 | COLLAR-HALF | 1 | |
15 | XKBR-00015 | PLUG | 2 | |
16 | XKBR-00016 | PLUG | 2 | |
18 | XKBR-00018 | PIPE | 1 | |
19 | XKBR-00019 | GAUGE-LEVEL | 1 | |
*-1 | 31M8-10130 | SWING MOTOR UNIT SEE 4210 |
1 |
1. The gear parts are built to fit the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varieties of gear parts that cover final and swing drive.
