Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R220LC-9A

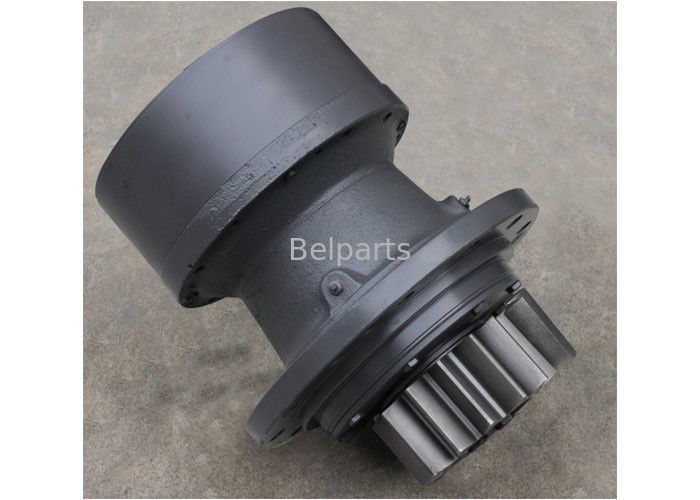

Excavator swing reduction R220LC-9A excavator 31Q6-10140 swing gearbox
Product Description
Appliion |
Excavator |
Part name |
Travel reduction gearbox |
Part number |
R220LC-9A |
Model |
31Q6-10140 |
MOQ |
1PC |
Warranty |
6 months |
Payment term |
T/T, PayPal |
Delivery |
1 day after the payment received |
Shipment |
by sea, by air, by express, or as required |

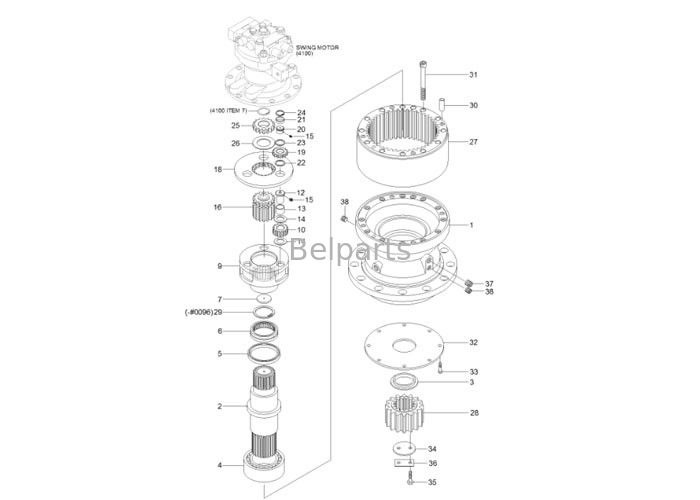

List of Spare Parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
N*. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
*-2. | 31Q6-10140 | [1] | SWING REDUCTION GEAR | |
*-2. | 31Q6-10141 | [1] | SWING REDUCTION GEAR | |
*-2. | 31Q6-10141AR | [1] | SWING REDUCTION GEAR | |
1. | XKAQ-00771 | [1] | CASING | |
1. | XKAQ-00962 | [1] | CASING | |
2. | XKAQ-00403 | [1] | SHAFT-DRIVE | |
2. | XKAQ-00780 | [1] | SHAFT-DRIVE | |
3. | XKAQ-00018 | [1] | SPACER | |
4. | XKAQ-00026 | [1] | BEARING-ROLLER | |
5. | XKAQ-00032 | [1] | SEAL-OIL | |
6. | XKAQ-00029 | [1] | BEARING-ROLLER | |
6. | XKAQ-00647 | [1] | BEARING-ROLLER | |
6. | XKAQ-00961 | [1] | BEARING-ROLLER | |
7. | XKAQ-00404 | [1] | PLATE-THRUST | |
8. | XKAQ-00753 | [1] | CARRIER ASSY 2 | NOT SHOWN |
9. | XKAQ-00075 | [1] | CARRIER 2 | |
10. | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
11. | XKAQ-00643 | [3] | PIN ASSY 2 | NOT SHOWN |
12. | XKAQ-00070 | [3] | PIN 2 | INLC 13 |
N13. | XKAQ-00291 | [1] | BUSHING 2 | |
14. | XKAQ-00071 | [6] | WASHER-THRUST | |
15. | XKAQ-00048 | [3] | PIN-SPRING | |
16. | XKAQ-00755 | [1] | GEAR-SUN 2 | |
17. | XKAQ-00754 | [1] | CARRIER ASSY 1 | NOT SHOWN |
18. | XKAQ-00531 | [1] | CARRIER 1 | |
19. | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
20. | XKAQ-00532 | [3] | PIN 1 | |
21. | XKAQ-00030 | [3] | CAGE-NEEDLE | |
22. | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
23. | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
24. | XKAQ-00041 | [3] | RING-STOP | |
25. | XKAQ-00010 | [1] | GEAR-SUN 1 | |
26. | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
27. | XKAQ-00529 | [1] | GEAR-RING | |
27. | XKAQ-00779 | [1] | GEAR-RING | |
28. | XKAQ-00977 | [1] | GEAR-PINION | |
29. | XKAQ-00074 | [1] | RING-STOP | |
30. | XKAQ-00072 | [2] | PIN-KNOCK | |
31. | XKAQ-00065 | [12] | BOLT-SOCKET | |
32. | XKAQ-00031 | [1] | PLATE-COVER | |
33. | XKAQ-00064 | [8] | BOLT-HEX | |
34. | XKAQ-00043 | [1] | PLATE-LOCK | |
35. | XKAQ-00042 | [2] | BOLT-HEX | |
36. | XKAQ-00292 | [1] | WASHER-LOCK | |
37. | XKAQ-00049 | [1] | PLUG | |
38. | XKAQ-00066 | [2] | PLUG | |
*-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
N. | @ | [AR] | NOT SUPPLIED PARTS |
1. The gear parts are built to fit the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varieties of gear parts that cover final and swing drive.
