Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R140-9

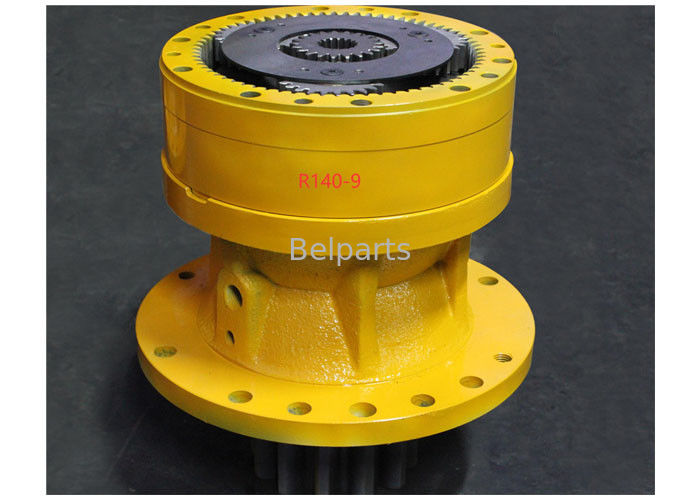

Excavator hydraulic swing motor R140-9 excavator swing 31Q4-11141 gearbox
Product Description
Appliion |
Excavator |
Part name |
Travel reduction gearbox |
Model |
R140-9 |
Part number |
31Q4-11141 |
MOQ |
1PC |
Warranty |
6 months-12months |
Payment term |
T/T, PayPal |
Delivery |
1 day after the payment received |
Shipment |
by sea, by air, by express, or as required |

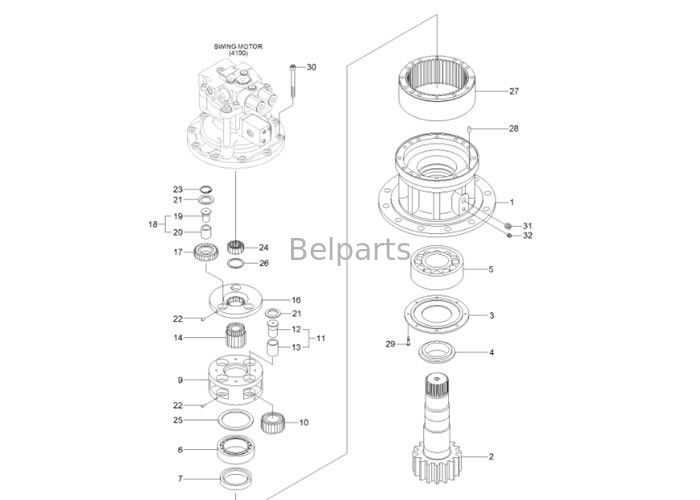

List of Spare Parts
Pos. | Part No | Qty | Parts name |
---|---|---|---|
N*. | @ | [1] | SWING MOTOR ASSY |
*-2. | 31Q4-11140 | [1] | SWING REDUCTION GEAR |
*-2. | 31Q4-11141 | [1] | SWING REDUCTION GEAR |
*-2. | 31Q4-11142 | [1] | SWING REDUCTION GEAR |
*-2. | 31Q4-11142AR | [1] | SWING REDUCTION GEAR |
1. | XKAQ-00511 | [1] | CASING |
2. | XKAQ-00512 | [1] | SHAFT-DRIVE |
3. | XKAQ-00513 | [1] | PLATE-COVER |
4. | XKAQ-00514 | [1] | SPACER |
5. | XKAQ-00515 | [1] | BEARING-SPH ROLLER |
6. | XKAQ-00089 | [1] | BEARING-CYL ROLLER |
7. | XKAQ-00087 | [1] | SEAL-OIL |
8. | XKAQ-00809 | [1] | CARRIER ASSY 2 |
9. | XKAQ-00516 | [1] | CARRIER 2 |
10. | XKAQ-00517 | [4] | GEAR-PLANET 2 |
10. | XKAQ-00810 | [4] | GEAR-PLANET 2 |
11. | XKAQ-00518 | [4] | PIN ASSY 2 |
11. | XKAQ-00811 | [4] | PIN ASSY 2 |
N12. | XKAQ-00812 | [1] | PIN 2 |
N13. | XKAQ-00813 | [1] | BUSHING 2 |
21. | XKAQ-00093 | [4] | WASHER-THRUST(B) |
22. | XKAQ-00086 | [4] | PIN-SPRING |
14. | XKAQ-00519 | [1] | GEAR-SUN 2 |
15. | XKAQ-00814 | [1] | CARRIER ASSY 1 |
16. | XKAQ-00520 | [1] | CARRIER 1 |
17. | XKAQ-00521 | [3] | GEAR-PLANET 1 |
17. | XKAQ-00815 | [3] | GEAR-PLANET 1 |
18. | XKAQ-00522 | [3] | PIN ASSY 1 |
18. | XKAQ-00816 | [3] | PIN ASSY 1 |
N19. | XKAQ-00817 | [1] | PIN 1 |
N20. | XKAQ-00818 | [1] | BUSHING 1 |
21. | XKAQ-00093 | [3] | WASHER-THRUST(B) |
22. | XKAQ-00086 | [3] | PIN-SPRING |
23. | XKAQ-00085 | [3] | RING-STOP |
24. | XKAQ-00523 | [1] | GEAR-SUN 1 |
25. | XKAQ-00084 | [1] | RING-STOP |
26. | XKAQ-00524 | [1] | PLATE-SIDE 1 |
27. | XKAQ-00525 | [1] | GEAR-RING |
27. | XKAQ-00782 | [1] | GEAR-RING |
28. | XKAQ-00091 | [4] | PIN-KNOCK |
29. | XKAQ-00526 | [9] | BOLT-HEX |
30. | XKAQ-00527 | [10] | BOLT-SOCKET |
31. | XKAQ-00049 | [1] | PLUG |
32. | XKAQ-00066 | [2] | PLUG |
*-1. | @ | [1] | SWING MOTOR UNIT |
N. | @ | [AR] | NOT SUPPLIED PARTS |
