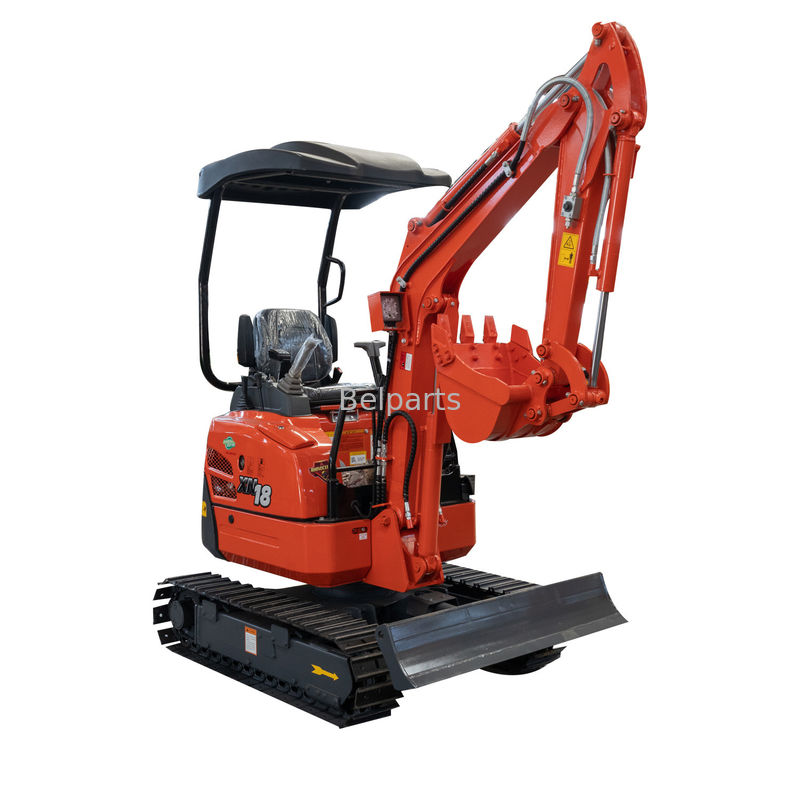

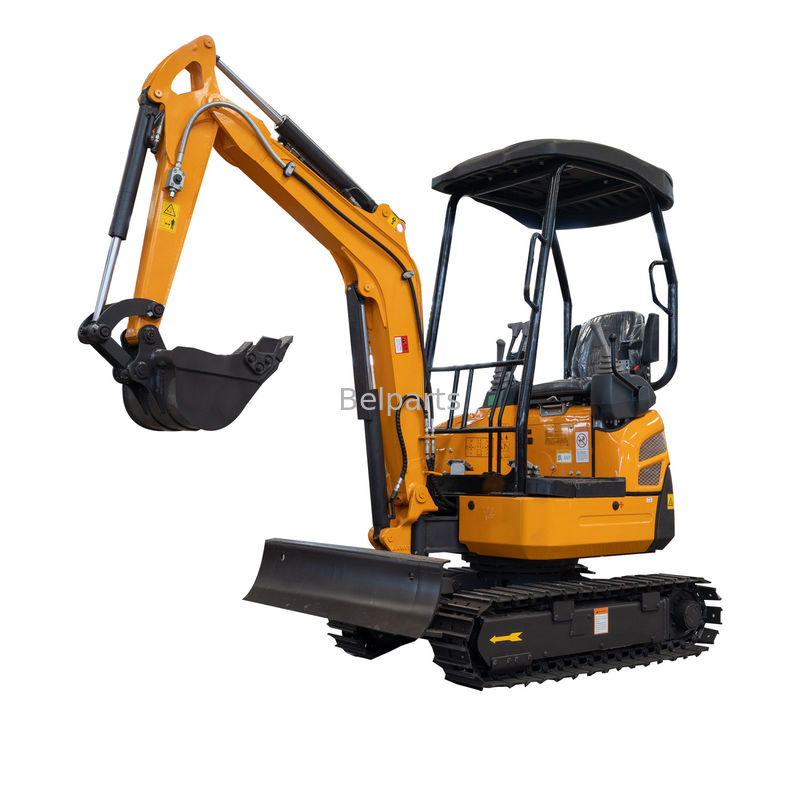

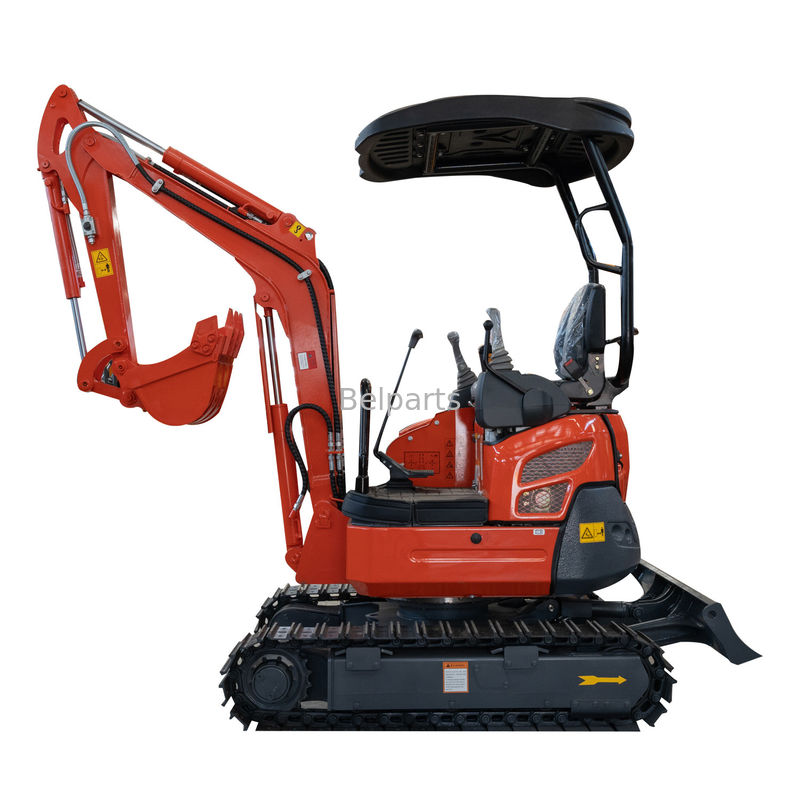

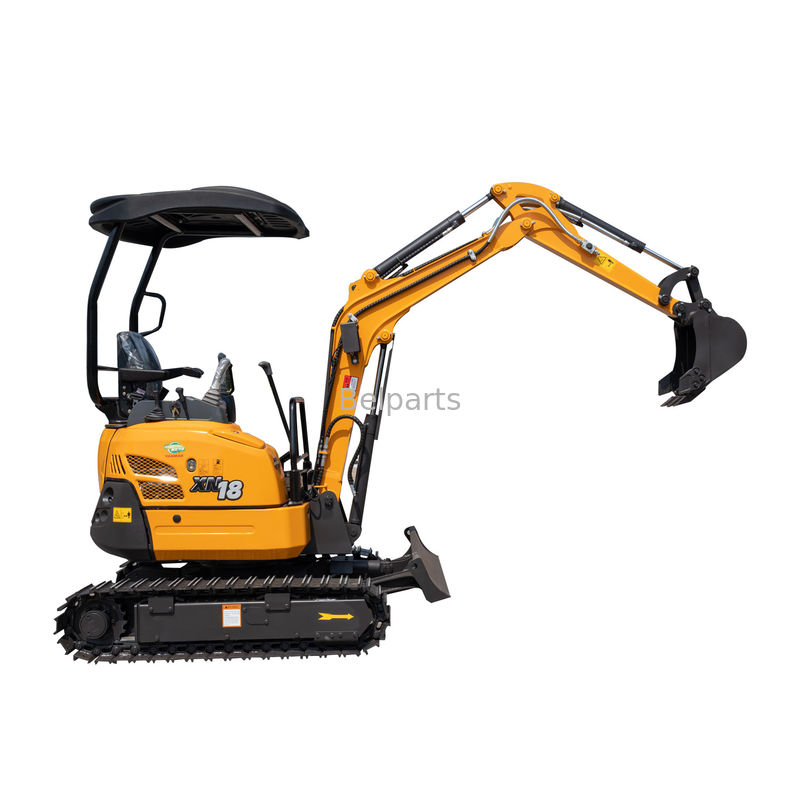

XN16 Mini Wheeled Excavator 1.6 Tons hydraulic backhoe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | XN18 | Weight | 1600kg |
|---|---|---|---|
| Warranty | 1 Year Or Working 1200 Hours | Color | Orange/Red/Green |
| Quality | High Quality | Condition | 100% New |
| Working Device Form | Backhoe | Rated Power | 10.3kw /11.2Kw |
| High Light | XN16 Mini Wheeled Excavator,1.6 Tons Mini Wheeled Excavator,xn16 mini excavator |
||
Product Description
Excavator XN16 1.6 tons hydraulic mini high quality wheeled excavator
Product Description
| Overall dimension ( LxWxH) | Unit (mm) | |
| a | Wheelbase | 1130 |
| b | Total length of track | 1450 |
| c | Platform ground clearance | 437 |
| d |
Counterweight turning radius |
790 |
| e | Chassis width | 1110 |
| f | Track width | 230 |
| g | Track height | 320 |
| h | Length | 3160 |
| i | Height (From seat to ground) | 1637 |
| j | Total height | 2377 |
| Range of working | Unit(mm) | ||||
| A | Max. Digging radius on ground | 3470 mm | |||
| B | Max. Digging radius | 3560mm | |||
| C | Max. Digging depth | 2150 mm | |||
| D | Max. Digging height | 3275 mm | |||
| E | Max. Dumping height | 2310 mm | |||
| F | Max. Vertical digging depth | 1740 mm | |||
| G | Min. Rotation radius | 1440 mm | |||
| H | Maximum Lift Of Dozer | 262mm | |||
| I | Maximum depth Of Dozer blade | 192mm | |||
| SPECIFIION | Unit | ||||
| Operating Weight | 1600 kg | ||||
| bucket capacity | 0.045m³ | ||||
| Working device form | 反铲 backhoe | ||||
|
engine |
Model | 洋马 Yanmar 3TNV70/ 3TNV74F | |||
| Displacement | 0.854L | ||||
| Rated power | 10.3kw /11.2Kw | ||||
| Maximum torque | 51.9N.m/1600 r/min | ||||
|
Speed/Di gging force |
Max.travel speed |
1.5km/h |
|||
| swing speed | 11rpm | ||||
| Max. Gradeability | 30° | ||||
| Bucket digging force | 10.5KN | ||||
| Bucket arm digging force | 6.5KN | ||||
| Maximum traction | 13.5KN | ||||
| Ground specific pressure | 40kgf/cm2 | ||||
| Track material | Rubber track | ||||
| Type of track tension device | Butter oil cylinder | ||||
|
Hydraulic and liquid capacity |
Pump type | Piston pump | |||
| Working pressure | 22Mpa | ||||
| Flow rate | 39.6 L/min | ||||
| Hydraulic oil tank capacity | 15.3L | ||||
| Engine fuel tank | 2.8(1.3)L | ||||
| capacity | |||||
| Fuel tank capacity | 19L | ||||
