Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
EC460

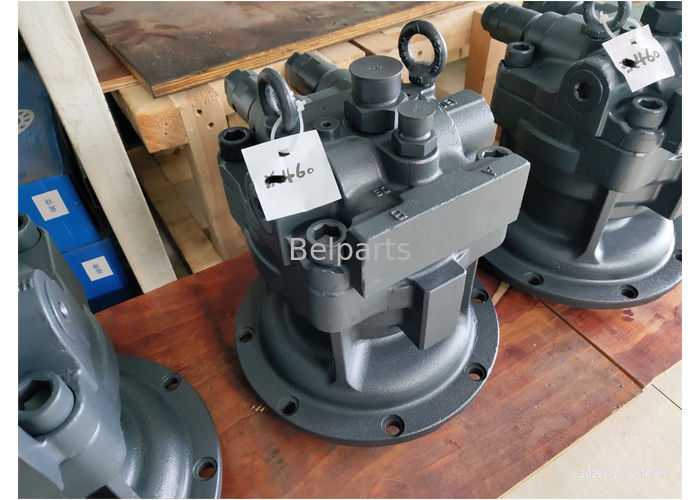

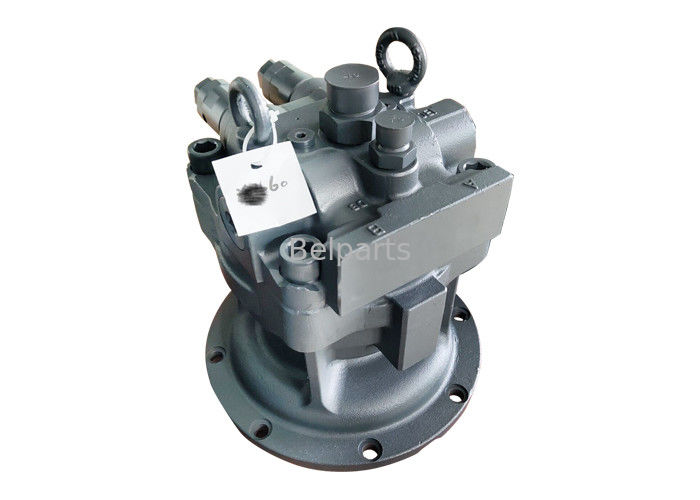

Excavator EC460 swing motor assy SA1142-07410 swing hydraulic slew motor
Product Description
|
Appliion |
Excavator |
|
Part name |
Belparts swing motor |
|
Material |
Steel |
|
Model |
EC460 |
|
MOQ |
1PC |
|
Payment term |
T/T, Paypal, Trade assurance, or as required |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |
![]()
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| DJ00A001 | ||||
| SA 1142-07410 | Swing Motor | 1 | ||
| 1 | SA 8230-35500 | Piston | 1 | |
| 2 | SA 14500016 | Piston | 9 | |
| 3 | SA 14500018 | Seat | 9 | |
| 4 | SA 8230-14390 | Casing | 1 | |
| 5 | SA 14500015 | Casing | 1 | |
| 6 | SA 7223-00660 | Spring Pin | 2 | |
| 7 | SA 8230-36570 | Valve | 1 | |
| 8 | SA 8230-29070 | Casing | 1 | |
| 9 | SA 8230-25640 | Plug | 2 | |
| 10 | SA 9511-12011 | O-ring | 2 | |
| 11 | SA 9511-12012 | O-ring | 2 | |
| 12 | SA 9511-12006 | O-ring | 2 | |
| 13 | SA 8240-03610 | Screw | 4 | |
| 14 | SA 8230-36560 | Valve | 2 | |
| 15 | SA 9511-12020 | O-ring | 1 | |
| 16 | SA 9566-10200 | Ring | 1 | |
| 17 | SA 8230-13640 | Shaft | 1 | |
| 18 | SA 8230-13890 | Cylinder | 1 | |
| 19 | SA 8230-14240 | Retainer | 1 | |
| 20 | SA 8230-14230 | Spring | 1 | |
| 21 | SA 8230-26350 | Piston rod | 12 | |
| 22 | SA 8230-14250 | Spacer | 1 | |
| 23 | SA 8230-14220 | Spacer | 2 | |
| 24 | SA 8230-13950 | Plate | 1 | |
| 25 | SA 8230-14190 | Plate | 1 | |
| 26 | SA 8230-13740 | Plate | 1 | |
| 27 | SA 8230-13590 | Casing | 1 | |
| 28 | SA 8230-14210 | Cover | 1 | |
| 29 | SA 8230-14160 | Plunger | 2 | |
| 30 | SA 8230-14150 | Spring | 2 | |
| 31 | SA 8230-25820 | Bolt | 4 | |
| 32 | SA 8230-25750 | Ring | 1 | |
| 33 | SA 8230-25730 | Ring | 1 | |
| 34 | SA 8230-26520 | Roller Bearing | 1 | |
| 35 | SA 8230-26600 | Roller Bearing | 1 | |
| 36 | SA 8230-25680 | Plug | 2 | |
| 37 | SA 8210-06281 | O-ring | 1 | |
| 38 | SA 9511-12028 | O-ring | 2 | |
| 39 | SA 8230-32140 | Seal | 1 | |
| 40 | SA 8230-13870 | Piston | 1 | |
| 41 | SA 8230-25530 | O-ring | 1 | |
| 42 | SA 8230-25540 | O-ring | 2 | |
| 43 | SA 8230-14200 | Spring | 24 | |
| 44 | SA 8230-13960 | Plate | 3 | |
| 45 | SA 8230-13970 | Plate | 4 | |
| 46 | SA 8230-26920 | Plug | 3 | |
| 47 | SA 8230-26930 | Plug | 1 | |
| 48 | SA 8240-03280 | Plug | 1 | |
| 49 | VOE 14511642
Replace: SA 8230-13440
|
Valve | 1 | |
| 50 | SA 8230-36550 | Relief valve | 2 | |
| 51 | SA 9511-22030 | O-ring | 1 | |
| 100 | SA 8230-13430 | Sealing Kit | 1 |
|
