20/925315 Swing Motor Parts For JS220 SH200 6 Months Warranty
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Model | SH200 JS220 | Part Name | Swing Motor Parts |
|---|---|---|---|
| Payment Term | T/T, Alibaba Trade Assurance, Paypal | Warranty | 6 Months |
| Part Number | 20/925315 | Appliion | Crawler Excavator |
| MOQ | 1 Piece | Model | SG08 |
| High Light | 20 925315,20 925315 Motor Parts,20 925315 Swing Motor Parts |
||
Product Description

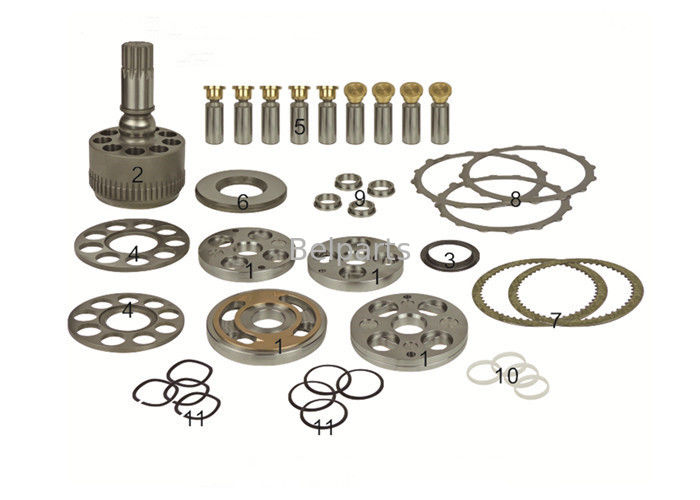

Excavator SG08 JS220 20/925315 swing motor parts SH200 hydrualic spare parts
Product description
| Product name | Swing motor parts |
| Place of Origin: | China(mainland) |
| Model: | JS220 SH200 |
| Part number: | 20/925315 |
| MOQ: | 1 PCS |
| Payment term: | T /T & Alibaba trade assurance & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Comment | Qty. |
|---|---|---|---|---|
| 3 | K9000924 | BEARING, ROLLER | 1 kg | 1 |
| - | 401-00457B | MOTOR, SWING | 68 kg | 1 |
| 1 | K9000949 | BODY | 1 | |
| 2 | K9000403 | SEAL, OIL | 1 | |
| 4 | S6510850 | RING, RETAINING | 1 | |
| 5 | K9000925 | SHAFT | 3 kg | 1 |
| 6 | K9000926 | PIN, PARALLEL | 1 | |
| 7 | K9000927 | RING, STOP | 1 | |
| 8 | K9000928 | PLATE, FRONT | 1 kg | 1 |
| 9 | K9000929 | KIT, ROTARY | 21 kg | 1 |
| 9A | K9000930 | CYLINDER BLOCK KIT | 6 kg | 1 |
| 9Aa | K9000931 | BLOCK, CYLINDER | 1 | |
| 9Ab | K9000932 | PLATE, VALVE | 1 | |
| 9B | 1.131-00070 | SPRING | 9 | |
| 9C | K9000933 | KIT, RETAINER | 1 kg | 1 |
| 9Ca | K9000934 | GUIDE, BALL | 1 | |
| 9Cb | K9000935 | PLATE, SET | 1 | |
| 9D | K9000936 | PISTON KIT | 3 kg | 1 SET |
| 14 | K9000937 | PLATE, FRICTION | 3 | |
| 15 | K9000938 | PLATE, FRONT | 3 | |
| 16 | K9000939 | PISTON, BRAKE | 3 kg | 1 |
| 17 | 2180-1216D155 | O-RING | E6481931 / 8 kg | 2 |
| 18 | K9000940 | SPRING | 18 | |
| 19 | K9000941 | COVER | 21 kg | 1 |
| 20 | 2.109-00176 | BEARING, NEEDLE | 1 | |
| 21 | S5711031 | PIN, PARALLEL | 2 | |
| 23 | S2227661 | BOLT:SOCKET (M20X2.5X50) | 2 | |
| 24 | 1.426-00010 | POPPET | 2 | |
| 25 | 1.131-00072 | SPRING | 8 kg | 2 |
| 26 | 1.181-00103 | PLUG, DRAIN | 2 | |
| 27 | S8000291 | O-RING | 2 | |
| 28 | K9000942 | VALVE, SWING REACTIONLESS | 2 | |
| 29 | K9000943 | PLUG | 2 | |
| 30 | S8000121 | O-RING | 2 | |
| 31 | S8000181 | O-RING | 1BP18 | 2 |
| 32 | K9000944 | RING, BACK UP | 2 | |
| 33 | K9000945 | RELIEF VALVE ASS`Y | 1 kg | 2 |
| 33A | S8000311 | O-RING | 1 | |
| 33B | S8060310 | RING, BACK-UP | 1 | |
| 33C | S8000261 | O-RING | 1BP26 | 1 |
| 33D | S8000241 | O-RING | 1 kg | 1 |
| 33E | S8060240 | RING, BACK-UP | 1 | |
| 34 | K9000946 | TIME DELAY VALVE ASS`Y | 1 kg | 1 |
| 34A | S8000071 | O-RING | 1BP7 | 1 |
| 34B | S8000151 | O-RING | 2 | |
| 35 | S2206161 | BOLT, HEX SOCKET HEAD | 3 | |
| 36 | 420-00112 | PLUG | 3 | |
| 37 | S8000111 | O-RING | 1BP11 | 3 |
| 38 | 2180-1216D154 | O-RING | 1 | |
| 39 | K9000948 | BUSHING | 1 | |
| * | K9000947 | SEAL KIT, SWING MOTOR | 1 |
