Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
K5V140DTP-YT6K-17T 2437U470F1

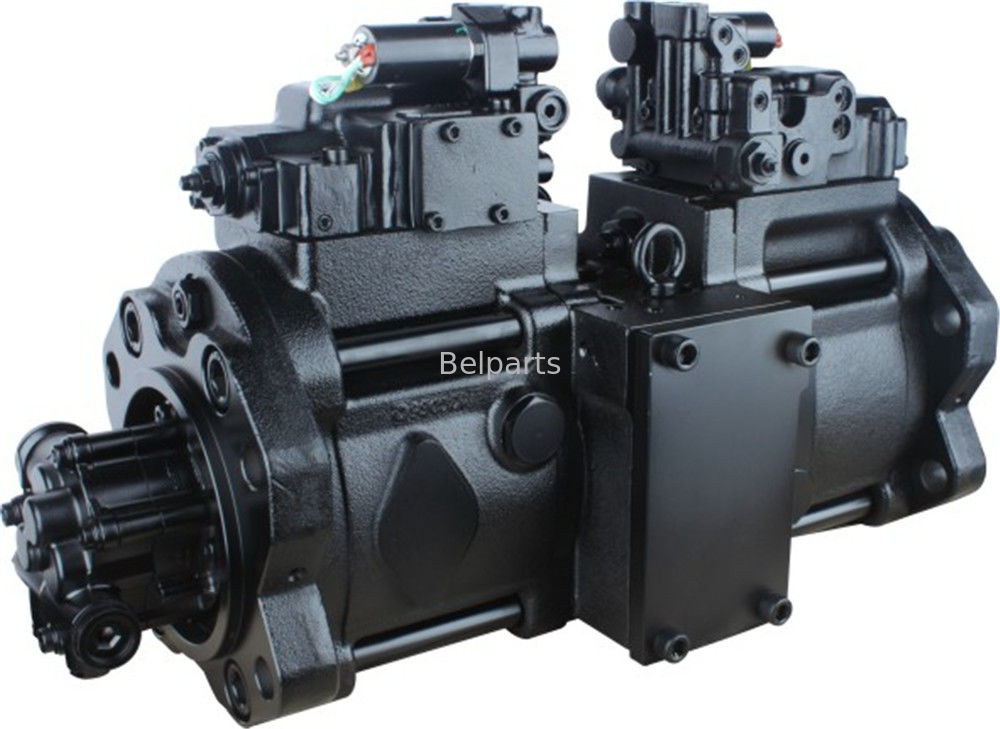

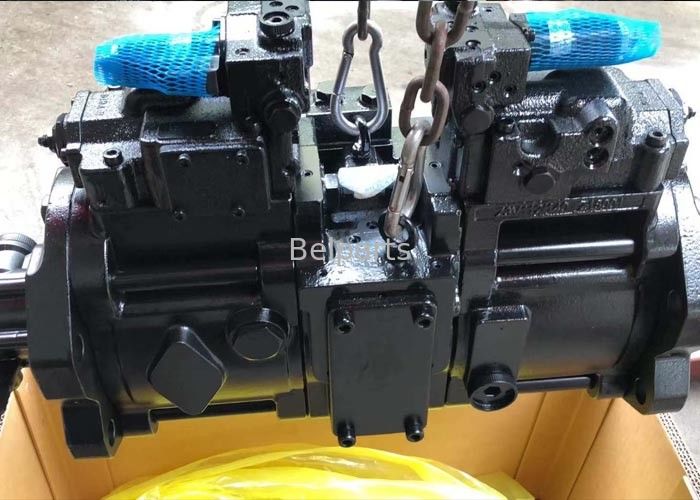

Excavator K5V140DTP 2437U470F1 hydraulic pump parts SK330-8 SK350-8 main pump
Product Description
| Model NO. | K5V140DTP-YT6K-17T |
| Description | Direct Factory Manufacture Hydraulic pump for SK330-8 SK350-8 Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 2437U470F1 | [1] | HYDRAULIC PUMP | KOB ASSY |
| . . | 2437U470F2 | [1] | PUMP ASSY | |
| 11. | 2437U470S11 | [2] | PISTON | KOB Consists of items 151, & 152 |
| 12. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 13. | 2437U219S01 | [1] | CYLINDER | KOB Consists of items 012, & 313 Superseded by part number: LS10V00006R200 |
| 14. | 2437U219S02 | [1] | CYLINDER | KOB Consists of items012, & 314 Superseded by part number: LS10V00006R300 |
| 30. | 2437U214S30 | [2] | PLATE | KOB Consists of items 012, & 214 |
| 111. | 2437U214S111 | [1] | SHAFT | KOB |
| 113. | 2437U214S113 | [1] | SHAFT | KOB |
| 114. | 2437U214S114 | [1] | COUPLING | KOB |
| 123. | 2437U214S123 | [2] | BEARING | KOB Superseded by part number: 2441U474S123 |
| 124. | 2437U214S124 | [2] | NEEDLE BEARING | KOB Superseded by part number: 24100U992S2 |
| 127. | 2437U219S127 | [2] | SPACER | KOB |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CON |
| 153. | 2437U214S153 | [2] | PLATE | KOB |
| 156. | 2437U214S156 | [2] | BUSHING | KOB |
| 157. | 2437U219S157 | [18] | SPRING | KOB |
| 158. | 2437U219S158 | [2] | SPACER | KOB |
| 211. | 2441U564S124 | [2] | PLATE | KOB |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 251. | 2437U219S251 | [2] | COVER | KOB |
| 261. | 2437U214S261 | [1] | CUP COVER | KOB (F) |
| 263. | 2437U214S263 | [1] | COVER | KOB (R) |
| 271. | 2437U214S271 | [2] | HOUSING | KOB |
| 312. | 2437U214S312 | [1] | BLOCK | KOB |
| NSS. | NSS | [1] | NOT SOLD SEPARAT | CON (R) |
| 325. | 2437U420S325 | [1] | CASE | KOB |
| 401. | 2437U214S401 | [8] | SCREW | KOB |
| 406. | ZS23C08020 | [8] | SCREW,Hex Socket Head, M8 x 20mm | KOB M08x1.25x20mm |
| 407. | ZS23C06065 | [3] | SCREW,Hex Socket Head, M6 x 65mm | KOB M06x1.0x65mm |
| 466. | 2441U667S466 | [3] | PLUG | KOB 1/4" PF |
| 468. | 2441U436S469 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [32] | PLUG | KOB 1/16" NPTF |
| 530. | 2437U214S530 | [2] | PIN | KOB REPAIR KIT Consists of items 531, & 548 |
| 531. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 532. | 2437U214S532 | [2] | PISTON | KOB |
| 534. | 2437U214S534 | [2] | STOP | KOB |
| 535. | 2437U214S535 | [2] | STOP | KOB |
| 541. | 2437U471S541 | [4] | SEAT/SLOT | KOB |
| 543. | 2437U471S543 | [2] | STOP | KOB |
| 544. | 2437U471S544 | [2] | STOP | KOB |
| 545. | 2436U969S964 | [4] | BALL | KOB |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CON |
| 702. | 2437U214S702 | [2] | O-RING | KOB |
| 710. | ZD12G10500 | [2] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOB ID 14.80 ± 0.20 x OD 19mm |
| 717. | 2441U741S472 | [2] | O-RING | KOB |
| 719. | 2437U219S719 | [2] | O-RING | KOB |
| 724. | ZD12P00800 | [16] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 725. | ZD12P01100 | [8] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 726. | ZD12P01400 | [1] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 728. | ZD12P02400 | [4] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 732. | 2437U214S732 | [2] | O-RING | KOB |
| 774. | 2437U214S774 | [1] | GASKET | KOB Superseded by part number: LC10V00010S019 |
| 789. | 2437U471S789 | [2] | BACK-UP RING | KOB |
| 792. | 2437U471S792 | [2] | BACK-UP RING | KOB |
| 808. | ZN11C20012 | [4] | NUT | KOB M20x2.50mm |
| 824. | ZR16X04500 | [2] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| 885. | 2441U474S888 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901. | 2441U413S902 | [2] | BOLT | KOB |
| 953. | 2437U219S953 | [2] | SCREW | KOB |
| 954. | 2437U214S954 | [2] | SET OF SCREWS | KOB |
| 981. | 2437U407S981 | [1] | LABEL | KOB NAME PLATE |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
| 100. | 2437U470R100 | [1] | SEAL KIT | KOB Consists of items 702, 710, 717, 719, 724-726, 732, 774, 789, & 792 |
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts. Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Our advantages
1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
Exhibition Strength
In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.
Factory Superiority
Hot products
Delivery and Packing
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
