Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
ZX850-3 M2X210CHB

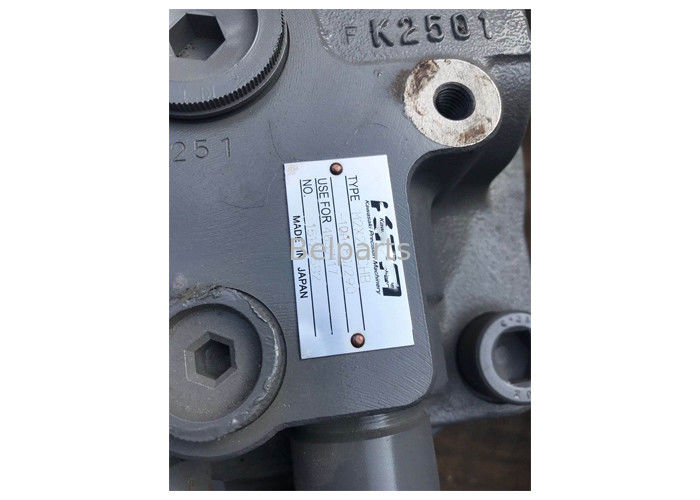

Excavator ZX850-3 M2X210 swing hydraulic slew motor 4637117 swing motor assy
Product Description
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
ZX850-3 M2X210CHB |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |

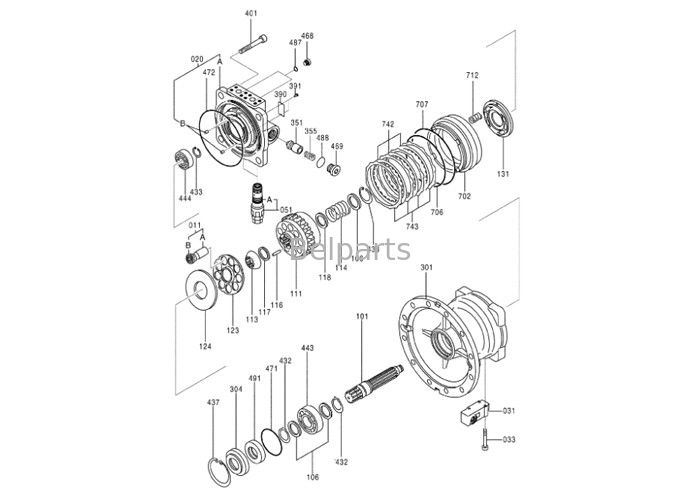

List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
4637117 | MOTOR; OIL | 1 | ||
011 | 0365401 | . PISTON SUB | 9 | |
011A | .. PISTON | 1 | ||
011B | .. SHOE | 1 | ||
020 | 0983301 | . CASING SUB | 1 | |
020A | .. CASING | 1 | ||
020B | .. PIN | 2 | ||
031 | 0960201 | . VALVE | 1 | |
033 | 0218824 | . BOLT; SOCKET | 3 | |
051 | 4654510 | . VALVE; RELIEF | 2 | |
051A | A811030 | .. O-RING | 1 | |
101 | 0803003 | . SHAFT | 1 | |
106 | 0365405 | . SPACER | 3 | |
111 | 0803004 | . CYLINDER | 1 | |
113 | 0365407 | . BUSHING | 1 | |
114 | 0365408 | . SPRING | 1 | |
116 | 0365409 | . ROD; PUSH | 12 | |
117 | 0365410 | . SPACER | 1 | |
118 | 0365411 | . SPACER | 1 | |
123 | 0803005 | . RETAINER | 1 | |
124 | 0365413 | . PLATE | 1 | |
131 | 0719603 | . PLATE; VALVE | 1 | |
301 | 0983302 | . CASING | 1 | |
304 | 0365416 | . COVER | 1 | |
351 | 0803007 | . PLUNGER | 2 | |
355 | 0803008 | . SPRING | 2 | |
390 | . PLATE | 1 | ||
391 | 0625509 | . PIN | 2 | |
401 | 0365417 | . BOLT; SOCKET | 4 | |
432 | 991345 | . RING; RETAINING | 2 | |
433 | 0747305 | . RING; RETAINING | 1 | |
437 | 973069 | . RING; RETAINING | 1 | |
438 | 931346 | . RING; RETAINING | 1 | |
443 | 0983303 | . BRG.; ROL. | 1 | |
444 | 0747306 | . BRG.; NEEDLE | 1 | |
468 | 0629404 | . PLUG | 2 | |
469 | 0803009 | . PLUG | 2 | |
471 | A811110 | . O-RING | 1 | |
472 | 0496103 | . O-RING | 1 | |
487 | 957366 | . O-RING | 2 | |
488 | 984614 | . O-RING | 2 | |
491 | 0251914 | . SEAL; OIL | 1 | |
702 | 0803010 | . PISTON | 1 | |
706 | 0365326 | . O-RING | 1 | |
707 | 0365427 | . O-RING | 1 | |
712 | 0747307 | . SPRING; BRAKE | 16 | |
742 | 0365428 | . PLATE | 3 | |
743 | 0365429 | . PLATE | 4 |
Company Information
Belparts is established in manufacturing the piston pump and motor for construction travel machinery, concrete machinery, and hoisting machinery. So far, we have already explored the piston pump, travel motor, swing motor, etc.
> Self - improvement
We will always remain active and positive to be self-improvement with great effort.
> Integrity
Belparts holds a belief: have faith in ourselves, have confidence in others. We are faithful and honest to everyone, and to all of our partners.
> Innovation
Belparts is committed to bringing in new methods to create innovation in its production.
> Share
Belparts is a team, we share difficulties and achievements.
