Excavator parts 31NA-10150 Swing reduction gear R360LC-7A swing gearbox for hyundai

Excavator parts 31NA-10150 Swing reduction gear R360LC-7A swing gearbox for hyundai

31NA 10150 Excavator Swing Motor

15Tx22T Excavator Swing Motor

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

R360LC-7A

Contact Us
Request A Quote
Product Details
Model Name:
R360LC-7A
Port:
Huangpu, Guangzhou
Part Number:
31NA-10150 15Tx22T
Place Of Origin:
Guangdong, China
Delivery Time:
1-7 Days
Brand Name:
Belparts
MOQ:
1PC
Condition:
New
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Trade Assurance
Supply Ability
1000pieces
Product Description

31NA-10150 Excavator Swing reduction R360LC-7A swing gearbox



Product Description


Appliion

Excavator

Part name

Belparts swing motor

Material

Steel

Model

R360LC-7A

MOQ

1PC

Payment term

T/T, Paypal, Trade assurance, or as required

Delivery

2 days after the payment received

Shipment

by sea, by air, by express, or as required

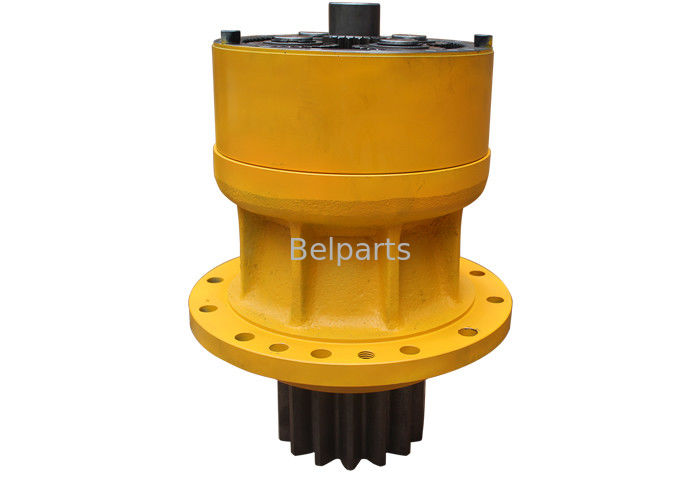

Excavator parts 31NA-10150 Swing reduction gear R360LC-7A swing gearbox for hyundai 0

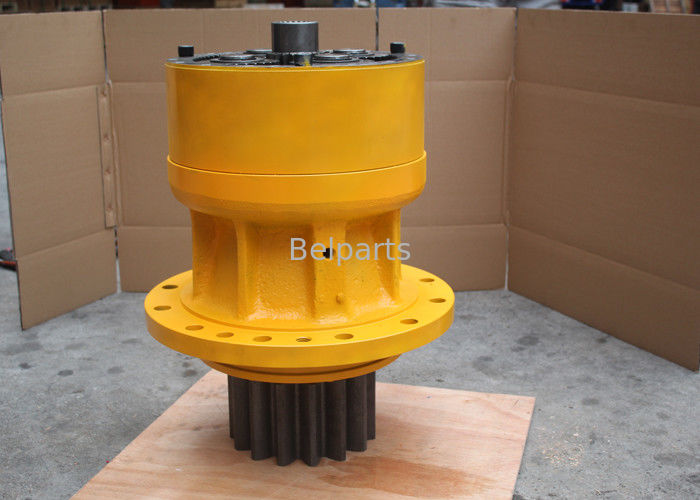

Excavator parts 31NA-10150 Swing reduction gear R360LC-7A swing gearbox for hyundai 1

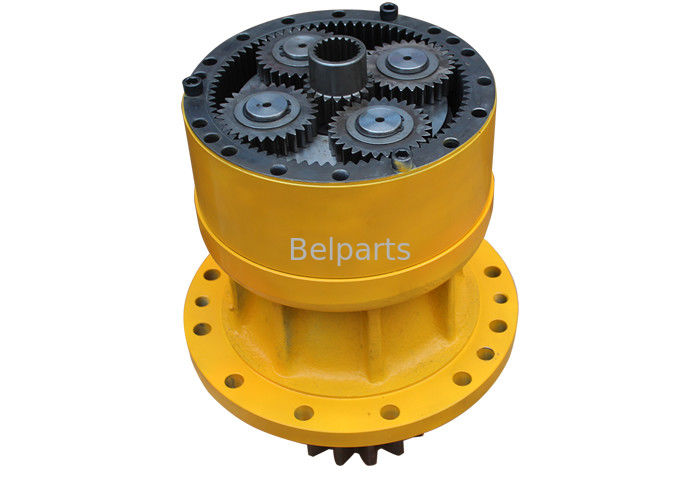

Excavator parts 31NA-10150 Swing reduction gear R360LC-7A swing gearbox for hyundai 2

List of spare parts


Pos. Part No Qty Parts name Comments
*-2. 31NA-10150 [1] SWING REDUCTION GEAR
*-2. 31NA-10151 [1] SWING REDUCTION GEAR
*-2. 31NA-10152 [1] REDUCTION GEAR
1. XKAQ-00144 [1] CASING
1. XKAQ-00773 [1] CASING
2. XKAQ-00300 [1] SHAFT-DRIVE
2. XKAQ-00739 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00147 [1] PLATE-COVER
4. XKAQ-00747 [1] PLATE-COVER
5. XKAQ-00148 [8] BOLT-HEX
6. XKAQ-00149 [1] SEAL-OIL
7. XKAQ-00027 [1] BEARING-ROLLER
*. XKAQ-00264 [1] CARRIER ASSY-NO 2
8. XKAQ-00251 [1] CARRIER 2
8. XKAQ-00740 [1] CARRIER 2
10. XKAQ-00776 [4] GEAR-PLANET 2
10. XKAQ-00741 [4] GEAR-PLANETARY 2
11. XKAQ-00254 [4] PIN 2
N12. @ [4] BUSHING
N33. @ [4] PIN-SPRING
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00156 [4] WASHER-THRUST
14. XKAQ-00411 [4] WASHER
*. XKAQ-00262 [1] CARRIER ASSY-NO 1
15. XKAQ-00325 [1] CARRIER 1
15. XKAQ-00743 [1] CARRIER 1
16. XKAQ-00257 [1] GEAR-SUN 1
16. XKAQ-00746 [4] GEAR-SUN 1
17. XKAQ-00777 [4] GEAR-PLANET 1
17. XKAQ-00774 [4] GEAR-PLANET 1
18. XKAQ-00019 [4] PIN 1
18. XKAQ-00415 [4] PIN 1
19. XKAQ-00030 [4] CAGE-NEEDLE
20. XKAQ-00040 [4] PLATE-SIDE 2
20. XKAQ-00416 [4] PLATE 2-SIDE
21. XKAQ-00048 [4] PIN-SPRING
22. XKAQ-00258 [1] GEAR-RING
22. XKAQ-00420 [1] GEAR-RING
23. XKAQ-00072 [2] PIN-KNOCK
24. XKAQ-00259 [16] BOLT-SOCKET
25. XKAQ-00162 [1] SPACER
25. XKAQ-00775 [1] SPACER
26. XKAQ-00163 [1] GEAR-PINION
26. XKAQ-00749 [1] GEAR-PINION
27. XKAQ-00299 [1] PLATE-LOCK
28. XKAQ-00042 [4] BOLT-HEX
29. XKAQ-00041 [4] RING-STOP
30. XKAQ-00273 [1] PLUG
31. XKAQ-00274 [2] PLUG
32. XKAQ-00057 [4] PLATE-SIDE 1
32. XKAQ-00417 [4] PLATE 1-SIDE
33. XKAQ-00165 [4] PIN-SPRING
34. XKAQ-00166 [1] BAR-GAUGE
35. XKAQ-00167 [1] PIPE-GAUGE
36. XKAQ-00292 [2] WASHER-LOCK
37. XKAQ-00169 [1] COVER
37. XKAQ-00750 [1] COVER
38. XKAQ-00170 [4] BOLT-SOCKET
39. XKAQ-00155 [1] PLUG-SOCKET
40. XKAQ-00171 [1] RING-SPACER
42. XKAQ-00143 [1] POST-AIR BREATHER
42. XKAQ-00798 [1] AIR BREATHER ASSY
42-1. XKAQ-00797 [1] CAP-ARI BREATHER
42-2. XKAQ-00799 [1] POST AIR BREATHER
43. XKAQ-00260 [1] RING-THRUST
43. XKAQ-00422 [1] RING-THRUST
44. XKAQ-00252 [1] GEAR-SUN 2
44. XKAQ-00745 [1] GEAR-SUN 2
45. XKAQ-00751 [1] O-RING
N. @ [1] NOT SUPPLIED PARTS
