Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R290LC-9

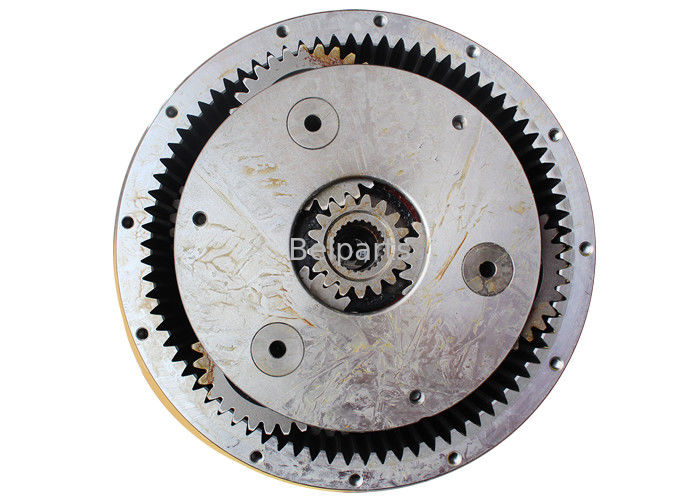

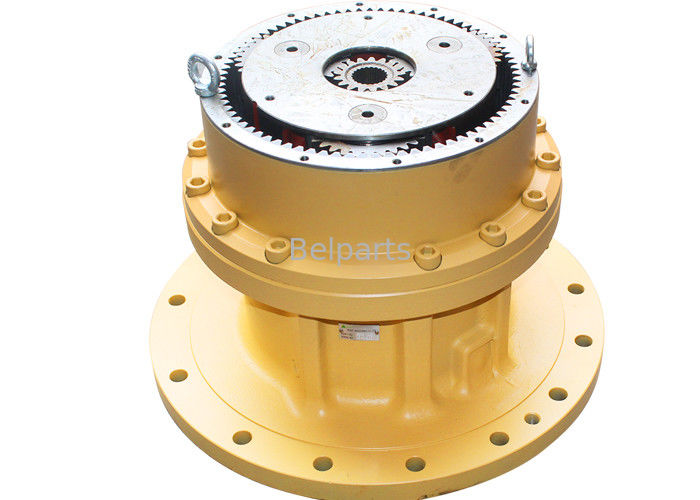

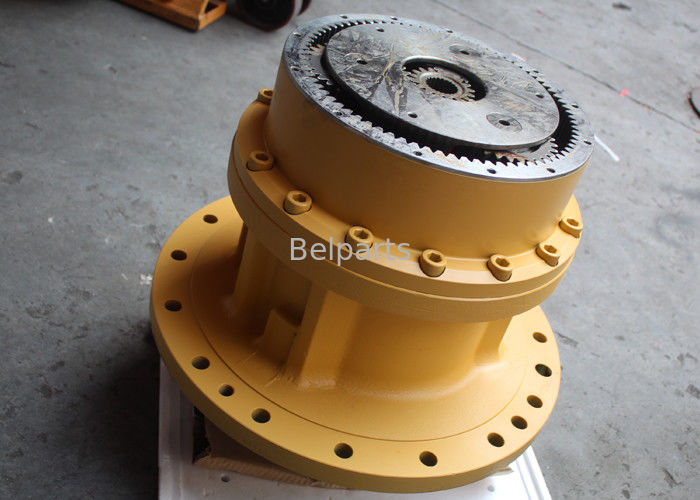

Excavator swing gearbox R290LC-9 39Q8-12100 hydraulic gear motor
Product Description
Appliion |
Excavator |
Part name |
Travel reduction gearbox |
Part number |
|
Model |
39Q8-12100 |
MOQ |
1PC |
Warranty |
6 months/12months |
Payment term |
T/T, PayPal |
Delivery |
1 day after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of Spare Parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
*-2. | 39Q8-12100 | [1] | SWING REDUCTION GEAR | SEE 4107 |
*-2. | 39Q8-12101 | [1] | SWING REDUCTION GEAR | SEE 4107 |
1. | 39Q8-12110 | [1] | GEAR RING | |
2. | 39Q8-12120 | [1] | SHAFT-DRIVE | |
3. | 39Q8-12130 | [1] | BEARING-SPH.ROLLER | |
4. | 39Q8-12140 | [1] | BEARING-SPH.ROLLER | |
5. | 39Q8-12150 | [1] | PLATE-THRUST | |
6. | 39Q8-12160 | [1] | RING-SNAP | |
7. | 39Q8-12170 | [1] | COVER | |
8. | S017-120306 | [12] | BOLT-HEX | |
9. | 39Q8-12180 | [1] | CASING | |
10. | S632-290001 | [1] | O-RING | |
11. | S109-100306 | [12] | BOLT-SOCKET | |
K12. | 39Q8-12201 | [1] | CARRIER NO.2 | |
K13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 | |
K14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 | |
K15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 | |
K16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 | |
K17. | S472-910404 | [4] | PIN-SPRING | |
K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 | |
K19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 | |
K20. | 39Q8-12281 | [1] | CARRIER NO.1 | |
K21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 | |
K22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 | |
K23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 | |
K24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 | |
K25. | S472-800404 | [3] | PIN-SPRING NO.1 | |
K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 | |
K27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 | |
28. | 39Q8-12350 | [1] | SLEEVE | |
29. | S632-140001 | [1] | O-RING | |
30. | 39Q6-12350 | [1] | SEAL-OIL | |
31. | 39Q6-41450 | [2] | PIN-PARALLEL | |
32. | S109-18050D | [14] | BOLT-SOCKET | |
33. | 39Q8-12360 | [1] | NAME PLATE | |
34. | 39Q6-41800 | [2] | RIVET | |
35. | P220-430204 | [1] | PLUG-HEX | |
K. | 39Q8-12190 | [1] | CARRIER ASSY NO.2 | SEE ILLUST |
K. | 39Q8-12270 | [1] | CARRIER ASSY NO.1 | SEE ILLUST |
