DX255LC K1004037A Excavator Swing Gearbox

DX255LC K1004037A Excavator Swing Gearbox

K1004037A Excavator Swing Gearbox

DX255LC Excavator Swing Gearbox

K1004037A Excavator Swing Reducer

Place of Origin:

Made in China

Brand Name:


Model Number:

DX260 DX255LC

Contact Us
Request A Quote
Product Details
Model Name:
DX260 DX255LC
Part Name:
Brand Name:
T/T, PayPal, Alibaba Trade Assurance
High Guarantee
Packing Size:
Wooden Case/Carton Box
Means Of Transport:
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Negotiable price
Packaging Details
Wooden packing
Delivery Time
Payment Terms
T/T, Paypal and Alibaba Trade Assurance
Supply Ability
Product Description

Excavator swing reducer DX255LC K1004037A excavator swing gearbox


Product Description



Part name

Travel reduction gearbox


DX260 DX255LC

Part number





6 months

Payment term

T/T,  PayPal


1 day after the payment received


by sea, by air, by express, or as required

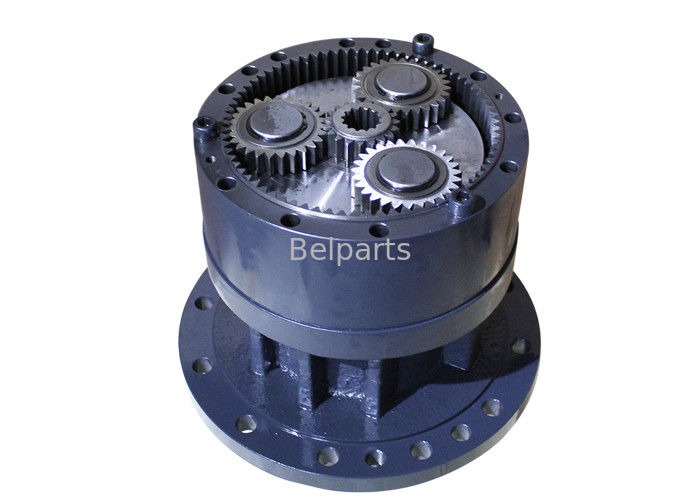

DX255LC K1004037A Excavator Swing Gearbox 0

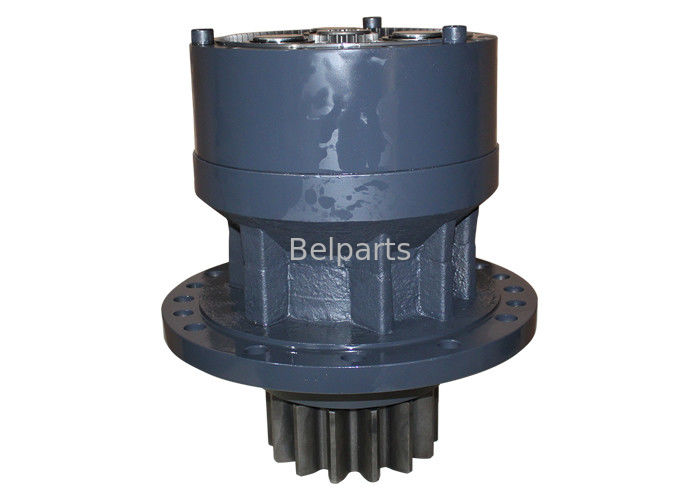

DX255LC K1004037A Excavator Swing Gearbox 1

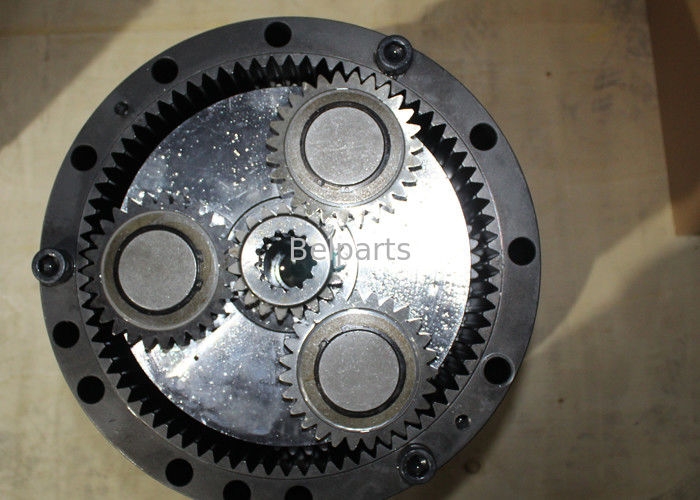

DX255LC K1004037A Excavator Swing Gearbox 2

List of Spare Parts

# Part No Part Name Comment Qty. Price request
- K1004037A REDUCTION GEAR, SWING 243 kg 1
1 K1004038B SHAFT 28 kg 1
2 K1002539A CASING, GEAR   1
3 K1002540A CARRIER, NO.2 19 kg 1
4 K1002541A GEAR, SUN NO.2 4 kg 1
5 K1002542 GEAR, PLANETARY, NO.2 4 kg 4
6 K1002543 PLATE, SIDE NO.2   4
7 K1002544 PIN, NO.2 1 kg 4
8 K1002545 BUSHING, NO.2   4
9 K1002546 CARRIER, NO.1 7 kg 1
10 K1004040B GEAR, SUN NO.1 2 kg 1
11 K1002548 GEAR, PLANETARY, NO.1 2 kg 3
12 K1002549 PLATE, SIDE NO.1   3
13 K1002550 PIN, NO.1 1 kg 3
14 K1006981 GEAR, RING 35 kg 1
15 K1002552 PLATE, THRUST   1
17 K1003384A PIN, LOCK   4
18 K1002554A SPACER 1 kg 1
19 K1004041A COLLAR   1
20 K1002556 PLATE 1 kg 1
21 K1002558 RING, LOCKING   1
22 K1002559 BEARING, SPHERICAL, 23224 12 kg 1
23 K1003682A BEARING, ROLLER, NJ224E 16 kg 1
24 K1005719 SEAL, OIL 1 kg 1
25 S5741361 PIN, SPRING   4
26 2181-1116D4 PLUG, RECHECK 97123-04111 1
27 S5810010 PLUG   3
28 K1004042A GEAR, PINION 17 kg 1
29 S2226671 BOLT, HEX SOCKET   12
30 140-01343A PIPE, HYDRAULIC   1
31 119-00020 BAR, LEVEL   1
32 K1002567 PLATE, SIDE NO.3   3
33 S6500600 RING, RETAINING   3
34 2120-1363 BOLT   4
35 2403-1039A PLATE, LOCK 1 kg 1
36 2126-9001 WIRE (1.4X250)   1
37 K1003386 BUSHING, NO.1   3
40 K9004901 CARRIER NO.1 ASS'Y 14 kg 1
41 K9004902 CARRIER NO.2 ASS'Y 31 kg 1
  • 1. The gear parts are built to fit the genuine drive gearbox system.
  • 2. The gear parts are supplied strictly according to the genuine parts alog.
  • 3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
  • 4. Surplus stock and the various varieties of gear parts that cover final and swing drive.


Company Description

DX255LC K1004037A Excavator Swing Gearbox 3

  • Belparts set up the hydraulic valve branch, which specializes in manufacturing complete sets of hydraulic pumps & hydraulic motors. The branch manufacturing multiple unit valves, valve assy, magnetic valve, elevator, and regulator. To assure the high quality.

  • Belparts is established in manufacturing the piston pump and motor for construction travel machinery, concrete machinery, and hoisting machinery. So far, we have already explored the piston pump, travel motor, swing motor, etc.

  • > Self - improvement

  • We will always remain active and positive to be self-improvement with great effort.

  • > Integrity

  • Belparts holds a belief: have faith in ourselves, have confidence in others. We are faithful and honest to everyone, and to all of our partners.

  • > Innovation

  • Belparts is committed to bringing in new methods to create innovation in its production.

  • > Share

  • Belparts is a team, we share difficulties and achievements.


Customer Evaluation

DX255LC K1004037A Excavator Swing Gearbox 4

DX255LC K1004037A Excavator Swing Gearbox 5


DX255LC K1004037A Excavator Swing Gearbox 6


Our Service

DX255LC K1004037A Excavator Swing Gearbox 7

  • In-sale service:

  • 1: Once we receive the order list, we will confirm the exact model and quantity one by one, then place the order list to each factory.

  • 2: We will track the production progress and quality, check the exact model and quantity one by one before delivering. Because we’re exporting agent for factories, so our leading time is shorter, quality tracking is more strict.

  • And you can buy the all excavator spare parts from our company, because we’re professional in whole excavator spare parts, not only for some products like factories.

  • 3: Lowest sea freight cost and best service. We’re cooperating with our forwarders for many years, so we can get the best price and service for each customer.

  • After-sale service:

  • After-sale service is most important in each business, we will do the below things in each order:

  • 1: Tracking the shipment and inform the customer before the Arrival Date.

  • 2: Check the goods together with our customers and tracking the quality during the use condition.

  • 3: We will charge all questions if you buy from me because reputation is most important in exporting business.



DX255LC K1004037A Excavator Swing Gearbox 8

  • 1. Commodities will be sent to all the countries all over the world.

  • 2. Please make sure that your address and contact information is correct.

  • 3. Products will be carefully checked before shipment.

  • 4. Generally, items will be shipped 2 working days after the payment is received.

  • 5.Should any delay happen due to logistic company and local customers or duties, we will inform via message or email immediately and your understanding will be highly appreciated.

  • 6.Strong carton or wooden box for gear components. Wooden box for gearbox assembly

  • 7.Delivery methods: By Sea, By air to the local international airport, By express like DHL TNT FEDEX
