Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
DX300 K1002518B

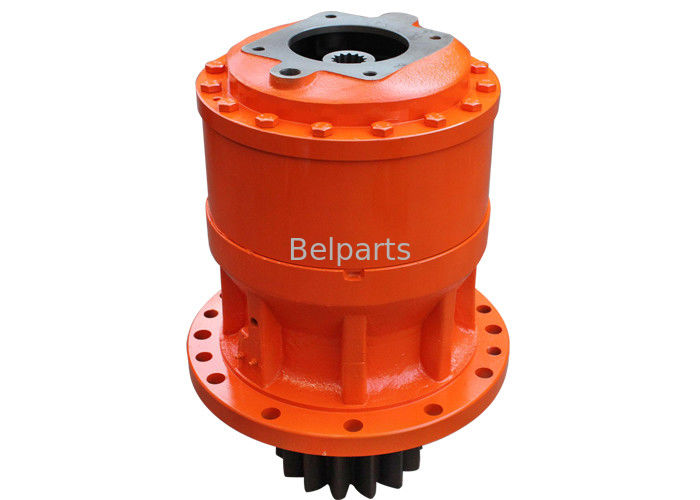

Excavator swing reducer DX300 K1002518B excavator swing gearbox
Product Description
|
Appliion |
Excavator |
|
Part name |
Travel reduction gearbox |
|
Model |
DX300 |
|
Part number |
K1002518B |
|
MOQ |
1PC |
|
Warranty |
6 months/12months |
|
Payment term |
T/T, PayPal |
|
Delivery |
1 day after the payment received |
|
Shipment |
by sea, by air, by express, or as required |
List of Spare Parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | K1002518 | REDUCTION GEAR, SWING | 32 kg | 1 | |
| - | K1002518A | REDUCTION GEAR, SWING | 328 kg | 1 | |
| - | K1002518B | REDUCTION GEAR, SWING | 330 kg / 500*500*760 | 1 | |
| 1 | 105-00011 | SHAFT | 38 kg | 1 | |
| 1 | 105-00011A | SHAFT | 43 kg | 1 | |
| 2 | 245-00001 | CASE, REDUCTION GEAR | 125 kg | 1 | |
| 3 | 230-00059 | CARRIER NO.2 | 21 kg | 1 | |
| 3 | 230-00059A | CARRIER NO.2 | 21 kg | 1 | |
| 4 | 104-00045 | GEAR, SUN NO.2 | 4 kg | 1 | |
| 5 | 104-00044 | GEAR, PLANETARY NO.2 | 3 kg | 4 | |
| 6 | 223-00043 | PLATE, SIDE NO.2 | 4 | ||
| 7 | 123-00471 | SHAFT FOR PIN NO.2 | 1 kg | 4 | |
| 8 | 110-00231 | BUSH NO.2 | 4 | ||
| 9 | 230-00058 | CARRIER NO.1 | 7 kg | 1 | |
| 10 | 101-00024 | GEAR, SUN NO.1 | 2 kg | 1 | |
| 11 | 104-00041 | GEAR, PLANETARY NO.1 | 2 kg | 4 | |
| 12 | 223-00044 | PLATE, SIDE NO.1 | 4 | ||
| 13 | 123-00457 | PIN ASSY NO.1 | 1 kg | 4 | |
| 14 | 104-00046 | GEAR, RING | 31 kg | 1 | |
| 15 | 223-00045 | PLATE, THRUST | 1 | ||
| 17 | 705-00008 | PIN, LOCK | 1 kg | 4 | |
| 18 | 114-00543 | SPACER | 2 kg | 1 | |
| 19 | 114-00544 | COLLAR | 2 kg | 1 | |
| 20 | 159-00233 | PLATE | 2 kg | 1 | |
| 21 | 278-00090 | RING, LOCKING | 2 kg | 1 | |
| 22 | 109-00168 | BEARING, SPHERICAL ROLLER | 23 kg | 1 | |
| 23 | 109-00169 | BEARING, SPHERICAL ROLLER | 4 kg | 1 | |
| 24 | 180-00472 | SEAL, OIL | 1 | ||
| 25 | S5741361 | PIN, SPRING | 4 | ||
| 26 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 1 | |
| 27 | S5810010 | PLUG | 2 | ||
| 28 | 404-00092A | PINION, GEAR | 20 kg | 1 | |
| 29 | 120-00298 | BOLT, SOCKET M16X180 | 1 kg | 16 | |
| 30 | 140-01343A | PIPE, HYDRAULIC | 1 | ||
| 31 | 119-00020 | BAR, LEVEL | 1 | ||
| 32 | 223-00046 | PLATE, SIDE NO.3 | 4 | ||
| 33 | S6500400 | RING, RETAINING | 4 | ||
| 34 | 2120-1363 | BOLT | 4 | ||
| 35 | 2403-1046A | COVER | 1 kg | 1 | |
| 36 | 2126-9001 | WIRE (1.4X250) | 1 | ||
| 37 | S6500450 | RING, SNAP | 1 | ||
| 38 | 403-00013 | COVER, SWING R/G | 14 kg | 1 | |
| 39 | 120-00293 | BOLT, SOCKET M16X40 | 1 kg | 16 | |
| 40 | 230-00066 | CARRIER ASS'Y , NO.1 | 18 kg | 1 | |
| 41 | 230-00067 | CARRIER ASS'Y , NO.2 | 40 kg | 1 |
|
