2676799 Planetary Drive Gearbox Excavator E320C E320D

2676799 Planetary Drive Gearbox Excavator E320C E320D

2676799 Planetary Drive Gearbox

2676799 Planetary Gearbox

2676799 planetary gear drive

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

E320C

Contact Us
Request A Quote
Product Details
Model Name:
E320C E320D
Part Name:
2676799
Condition:
New
After-sales Services:
Online
Port:
Huangpu, Guangzhou
Place Of Origin:
Guangdong, China
Supply Ability:
1000pcs
Payments:
T/T, PayPal, Alibaba Trade Assurance
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Alibaba Trade Assurance
Supply Ability
1000pieces
Product Description

Excavator E320C E320D planetary carrier assy 2676799 travel device gear parts



Product Description


Product name:

planetary carrier assy

Place of Origin:

China(mainland)

Model:

E320C E320D

Part number:

2676799

MOQ:

1 PCS

Payment term:

T/T & PayPal&Alibaba Trade Assurance

Delivery time:

Within 2 days after receiving the payment

Packing:

Standard exporting packing or as required

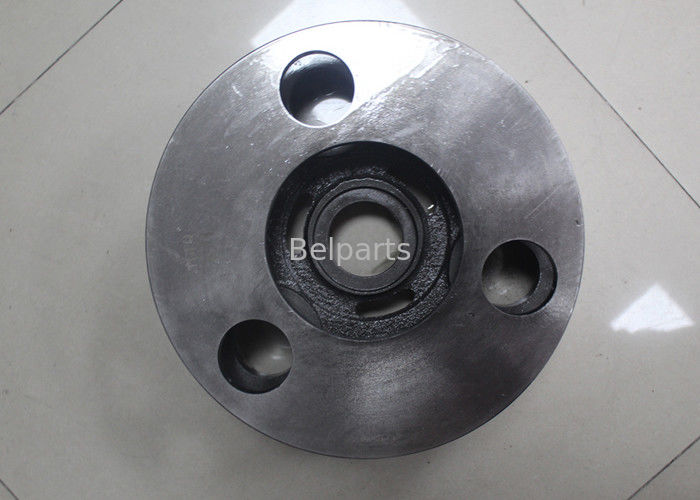

2676799 Planetary Drive Gearbox Excavator E320C E320D 0

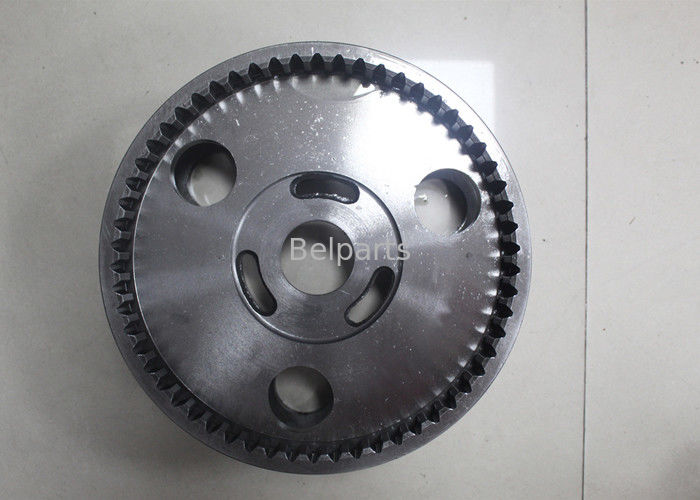

2676799 Planetary Drive Gearbox Excavator E320C E320D 1

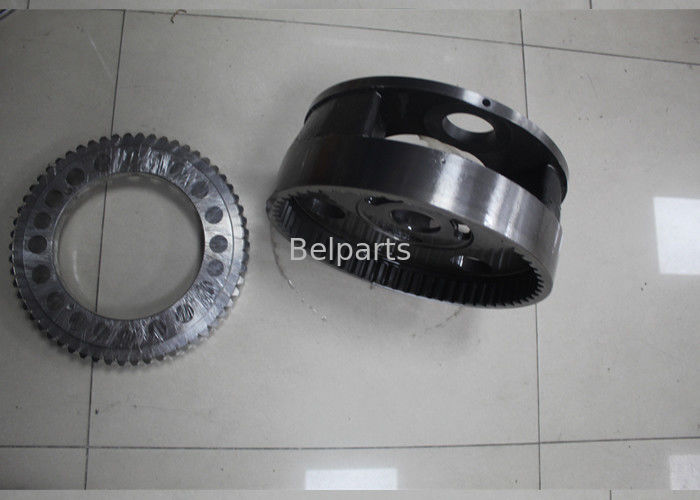

2676799 Planetary Drive Gearbox Excavator E320C E320D 2

2676799 Planetary Drive Gearbox Excavator E320C E320D 3

.

List of spare parts


# Part No Part Name Qty. Price request
1 3E2338 PLUG-PIPE 2
2 7Y0752 SHIM (0.80 MM THICK) 1
3 7Y0753 SHIM (1.00 MM THICK) 1
4 7Y0754 SHIM (1.60 MM THICK) 1
5 0940578 PLATE (8.0 mm THICK) 1
6 0940579 PLATE (9.0 mm THICK) 1
7 0940580 PLATE (10.0 mm THICK) 1
8 0941528 WASHER (53X84X1-MM THK) 12
9 1141540 PIN-DOWEL 4
10 1688452 BEARING (SPL BALL) 2
11 1695589 GEAR-SUN (24-TEETH) 1
12 1695590 GEAR-SUN (24-TEETH) 1
13 1695592 GEAR-PLANETARY (23-TEETH) 3
14 1695593 GEAR-PLANETARY (23-TEETH) 3
15 1695601 SHAFT-PLANETARY 3
16 1695602 SHAFT-PLANETARY 3
17 1719387 GEAR-RING (64-TEETH) 1
18 1912569 BEARING AS (CAGED ROLLER) 3
19 1912570 BEARING AS (CAGED ROLLER) 6
20 1912571 CARRIER-PLANETARY 1
21 1912676 GEAR-RING (72-TEETH) 1
22 1912683 GEAR-SUN (20-TEETH) 1
23 1912684 GEAR-PLANETARY (21-TEETH) 3
24 1912685 BEARING AS 3
25 1912686 CARRIER AS 1
  1912687 RACE-BEARING 3
26 1912689 WASHER (34X70X1-MM THK) 3
27 1912690 WASHER (42.3X70X1-MM THK) 3
28 1994503 COVER 1
29 2071571 SEAL GROUP-DUO-CONE 1
  2143570 RING-TORIC 2
30 2676797 HOUSING-MOTOR 1
31 2676798 HOUSING 1
32 2676799 CARRIER-PLANETARY 1
33 2676800 GEAR-COUPLING 1
34 2676863 SHIM (0.75-MM THK) 1
35 2676864 SHIM (0.85-MM THK) 1
36 2676865 SHIM (0.9-MM THK) 1
37 2676866 SHIM (0.95-MM THK) 1
38 2676867 SHIM (1.2-MM THK) 1
39 2676868 SHIM (1.4-MM THK) 1
40 2676869 SHIM (1.8-MM THK) 1
41 2676870 SHIM (2-MM THK) 1
42 2676871 SHIM (2.3-MM THK) 1
43 0931731 RING - RETAINING 2
44 0950891 PIN - SPRING 6
45 0960433 RING (RETAINING) 3
46 0963216 SETSCREW-SOCKET (M12X1.75X12-MM) 2
47 1719298 SEAL-O-RING 1
48 1798733 BOLT (M20X2.5X170-MM) 16
49 7M8485 SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 2
50 7Y0595 SPACER (58X79.6X6-MM THK) 3
51 7Y5217 BOLT-SOCKET HEAD (M20X2.5X70-MM) 16
52 8T3282 WASHER (HARD) (22X35X3.5mm THK) 16
53 8T4123 WASHER-PLATED (22X35X3.5-MM THK) 16
54 9X6032 BOLT (HEX SOCKET HEAD) (M10X1.5X30mm) 12
55 1U8846 SEALANT (FOR LOIONS A)

    AVAILABLE REPAIR KIT(S):
  2676818 KIT-FINAL DRIVE BEARING 1
    USE AS REQUIRED
    KIT MARKED J SERVICES PART(S) MARKED J
    METRIC PART
