Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
EC210B M5X130

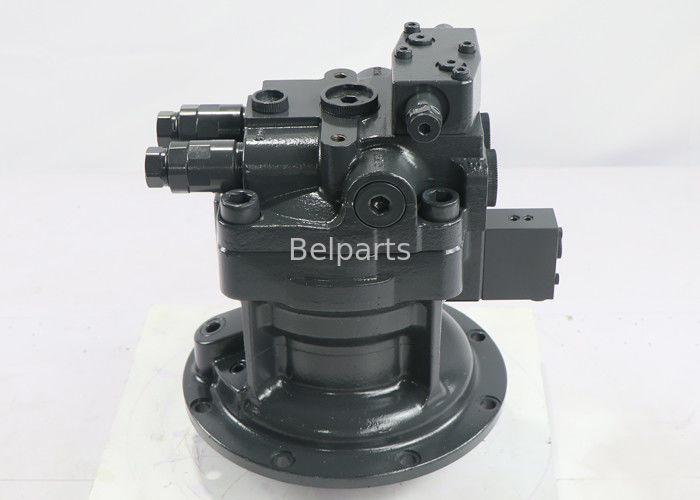

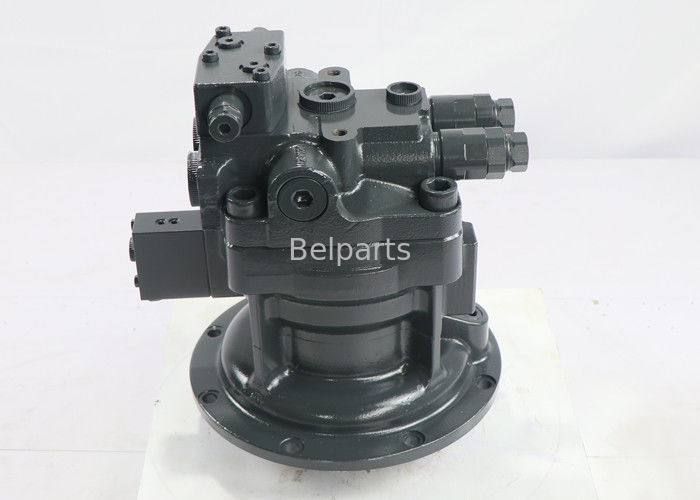

Excavator EC210B Hydraulic Swing Motor Assy SA1142-00930 M5X130
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
EC210B |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of spare part
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
8277784 | ||||
SA 1142-00930 | Swing Motor SER NO 10001-12467SER NO 30001-30273 |
1 | ||
VOE 14524189 | Motor SER NO 12468-14022SER NO 30274-30778 |
1 | ||
VOE 14521451 | Swing Motor SER NO 14023-SER NO 30779- |
1 | ||
1 | SA 8230-35500 | Piston SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529776 | Piston SER NO 14023-SER NO 30779- |
1 | ||
2 | VOE 14500016 | Piston | 9 | |
3 | VOE 14500018 | Seat | 9 | |
4 | SA 8230-14390 | Casing SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529775 | Casing SER NO 14023-SER NO 30779- |
1 | ||
5 | VOE 14500015 | Casing | 1 | |
6 | SA 7223-00660 | Spring Pin | 2 | |
7 | SA 8230-13440 | Valve SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14511642 | Valve SER NO 14023-SER NO 30779- |
1 | ||
SA 8230-33690 | Plug SER NO 14023-SER NO 30779- |
2 | ||
8 | VOE 14518516
Replace: SA 8230-27400
|
Relief valve | 2 | |
9 | SA 9511-22030 | O-ring | 1 | |
10 | SA 9566-20300 | Ring | 1 | |
11 | SA 9511-12028 | O-ring | 2 | |
12 | SA 8230-32140 | Seal SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529764 | Seal SER NO 14023-SER NO 30779- |
1 | ||
13 | SA 8230-13870 | Piston SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14512953 | Piston SER NO 14023-SER NO 30779- |
|||
14 | SA 8230-25530 | O-ring | 1 | |
15 | SA 8230-25540 | O-ring | 1 | |
16 | SA 8230-14200 | Spring SER NO 10001-14022SER NO 30001-30778 |
24 | |
VOE 14529763 | Spring SER NO 14023-SER NO 30779- |
20 | ||
17 | SA 8230-13960 | Plate SER NO 10001-14022SER NO 30001-30778 |
3 | |
VOE 14529762 | Plate SER NO 14023-SER NO 30779- |
3 | ||
18 | SA 8230-13970 | Plate SER NO 10001-14022SER NO 30001-30778 |
4 | |
VOE 14529761 | Plate SER NO 14023-SER NO 30779- |
4 | ||
19 | SA 8230-26920 | Plug | 3 | |
20 | SA 8230-26930 | Plug SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529760 | Plug SER NO 14023-SER NO 30779- |
1 | ||
21 | SA 8230-13640 | Shaft SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529774 | Shaft SER NO 14023-SER NO 30779- |
1 | ||
22 | SA 8230-13890 | Cylinder SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529773 | Cylinder SER NO 14023-SER NO 30779- |
1 | ||
23 | SA 8230-14240 | Retainer | 1 | |
24 | SA 8230-14230 | Spring SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529772 | Spring SER NO 14023-SER NO 30779- |
1 | ||
25 | SA 8230-26350 | Piston rod | 12 | |
26 | SA 8230-14250 | Spacer | 1 | |
27 | SA 8230-14220 | Spacer | 2 | |
28 | SA 8230-13950 | Plate SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529771 | Plate SER NO 14023-SER NO 30779- |
1 | ||
29 | SA 8230-14190 | Plate SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529770 | Plate SER NO 14023-SER NO 30779- |
1 | ||
30 | SA 8230-13740 | Plate SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529769 | Plate SER NO 14023-SER NO 30779- |
1 | ||
31 | SA 8230-13590 | Casing SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529768 | Casing SER NO 14023-SER NO 30779- |
1 | ||
32 | SA 8230-14210 | Cover SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529767 | Cover SER NO 14023-SER NO 30779- |
1 | ||
33 | SA 8230-14160 | Plunger | 2 | |
34 | SA 8230-14150 | Spring | 2 | |
35 | SA 8230-25820 | Bolt | 4 | |
36 | SA 8230-25750 | Ring SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529766 | Ring SER NO 14023-SER NO 30779- |
1 | ||
37 | SA 8230-25730 | Ring | 1 | |
38 | SA 8230-26520 | Roller Bearing | 1 | |
39 | SA 8230-26600 | Roller Bearing SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529765 | Bearing SER NO 14023-SER NO 30779- |
1 | ||
40 | SA 8230-25680 | Plug | 2 | |
41 | SA 8210-06281 | O-ring | 1 | |
42 | SA 8230-27360 | Block | 1 | |
43 | SA 8230-29070 | Casing | 1 | |
44 | SA 8230-25640 | Plug | 2 | |
45 | SA 9511-12011 | O-ring | 2 | |
46 | SA 9511-12012 | O-ring SER NO 10001-14022SER NO 30001-30778 |
2 | |
VOE 14529757 | O-ring SER NO 14023-SER NO 30779- |
2 | ||
47 | SA 9511-12006 | O-ring SER NO 10001-14022SER NO 30001-30778 |
2 | |
VOE 14529756 | O-ring SER NO 14023-SER NO 30779- |
2 | ||
48 | SA 8240-03610 | Screw | 4 | |
49 | VOE 14500037 | Valve | 2 | |
50 | SA 9511-12020 | O-ring | 1 | |
51 | SA 9566-10200 | Ring | 1 | |
52 | SA 8240-03280 | Plug SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529759 | Plug SER NO 14023-SER NO 30779- |
1 | ||
53 | VOE 14511643 | Screw | 3 | |
100 | SA 8230-13430 | Sealing Kit SER NO 10001-14022SER NO 30001-30778 |
1 | |
VOE 14529758 | Seal SER NO 14023-SER NO 30779- |
1 |
