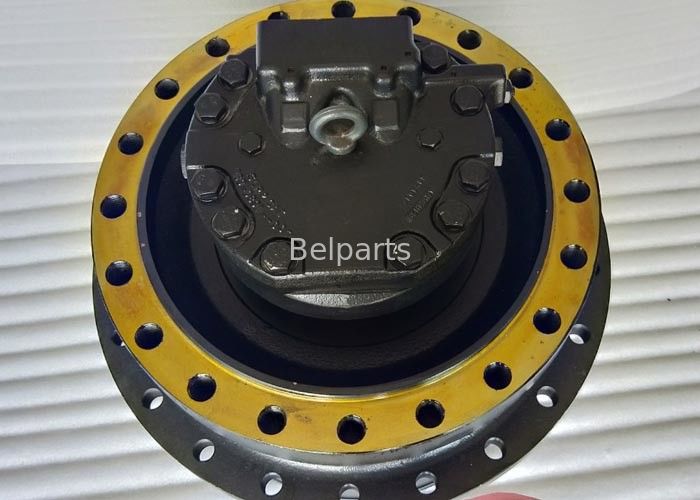

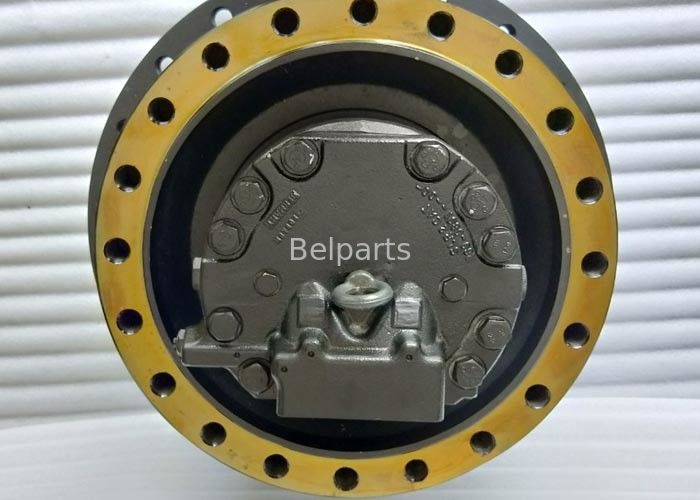

315-4480 E374D E374DL Travel Motor Assy Travel Device

Place of Origin Made in china
Brand Name Belparts
Model Number E374DL
Certifiion OEM
Minimum Order Quantity 1PCS
Price Negotiated price
Packaging Details Wooden case
Delivery Time 1~3 days
Payment Terms T/T,Alibaba trade assurance,PayPal
Supply Ability 1000PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model E374DL Part Number 315-4480
Part Name Final Drive Color Black
Warranty 1 Year Weight 850KG
MOQ 1PCS Brand Belparts
High Light

E374DL Travel Motor Assy

,

E374D Travel Motor Assy

,

315-4480 Travel Motor Assy

Leave a Message
Product Description

Excavator travel motor assy 9254462 travel device ZX650LC-3 travel reduction




Product name Belparts excavator parts E374D E374DL travel motor ass'y 315-4480 final drive
Part name Final drive
Excavator model Crawler Excavator
Appliion E374DL
MOQ 1pcs
Material Alloy Steel
Delivery By sea,By air,By express
Package Standard shipping package



315-4480  E374D E374DL Travel Motor Assy Travel Device 0315-4480  E374D E374DL Travel Motor Assy Travel Device 1



 315-4480  E374D E374DL Travel Motor Assy Travel Device 2

# 号码 名称 数量
1 1994727 HOUSING-MOTOR 1
2 2147880 SEAL GROUP-DUO-CONE 1
  2147879 RING-TORIC 2
3 1631657 CUP-SPECIAL TAPERED 2
4 1631656 CONE-SPECIAL TAPERED 2
5 8C3411 BOLT (M30X3.5X90-MM) 10
6 1362926 GEAR-PLANETARY (22-TEETH) 4
7 1362923 GEAR-SUN (20-TEETH) 1
8 7Y1469 COUPLING 1
9 1362944 SPACER (61X95.1X10-MM THK) 2
10 1362948 PIN-DOWEL 6
11 1994728 HOUSING 1
12 1362959 SHIM (0.3-MM THK) 1
  1362962 SHIM (0.6-MM THK) 1
  1362963 SHIM (0.7-MM THK) 1
  1362964 SHIM (0.8-MM THK) 1
  1362965 SHIM (1-MM THK) 1
  1362966 SHIM (1.6-MM THK) 1
17 1362949 GEAR-COUPLING (83-TEETH) 1
18 1362967 SEAL-O-RING 1
19 1362947 CARRIER-PLANETARY 1
20 1362945 SPACER (203X233X8.5-MM THK) 1
21 1362943 RING-RETAINING 1
22 1362930 CARRIER-PLANETARY 1
23 1362922 GEAR-SUN (19-TEETH) 1
24 1362927 GEAR-RING (86-TEETH) 1
25 7M8485 SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 2
26 3E2338 PLUG-PIPE 2
27 1362934 CARRIER AS 1
27A 1362931 SHAFT-PLANETARY 3
28 7Y0667 RING (RETAINING) 1
29 1362921 GEAR-SUN (22-TEETH) 1
30 7Y1493 SPACER (8.7X50X14-MM THK) 1
31 7Y0808 SHIM (1.6mm THICK) 1
32 1362946 BEARING-CAGED 3
33 8T4240 RING - RETAINING 3
34 0940584 WASHER (40.3X72X1-MM THK) 6
35 1362924 GEAR-PLANETARY (31-TEETH) 3
36 8T3957 BOLT (SOCKET HEAD) (M12X1.75X30MM) 12
37 1362920 COVER 1
38 1362932 SHAFT-PLANETARY 3
39 7Y5231 BOLT (M30X3.5X260-MM) 18
40 9X8258 WASHER (33X56X6-MM THK) 18
41 1362925 GEAR-PLANETARY (23-TEETH) 3
42 1U8846 SEALANT (FOR LOIONS A)
43 1362928 GEAR-RING (68-TEETH) 1
44 7Y0912 BEARING-ROLLER AS 11
45 4I7576 WASHER (66.3X104X3-MM THK) 14
46 0995194 PIN-SPRING 7
47 1362933 SHAFT-PLANETARY 4
48 0963216 SETSCREW-SOCKET (M12X1.75X12-MM) 2

    AVAILABLE REPAIR KIT(S):
  1362957 KIT-SHIM (FINAL DRIVE) 1
    USE AS REQUIRED
    KIT MARKED J SERVICES PARTS MARKED J
    METRIC PART
