Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R305LC-7

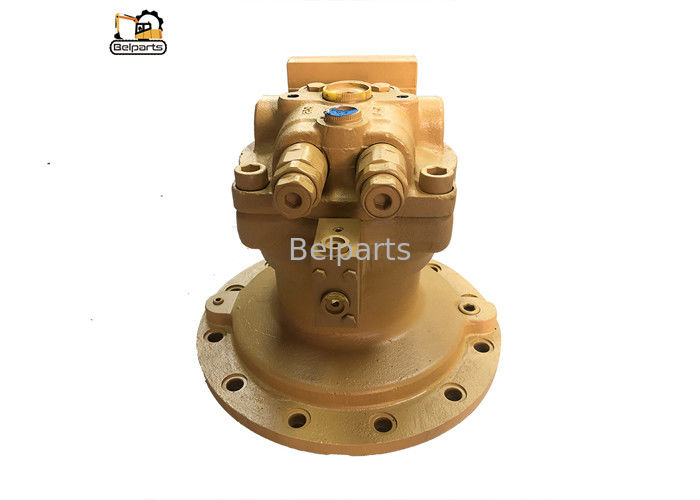

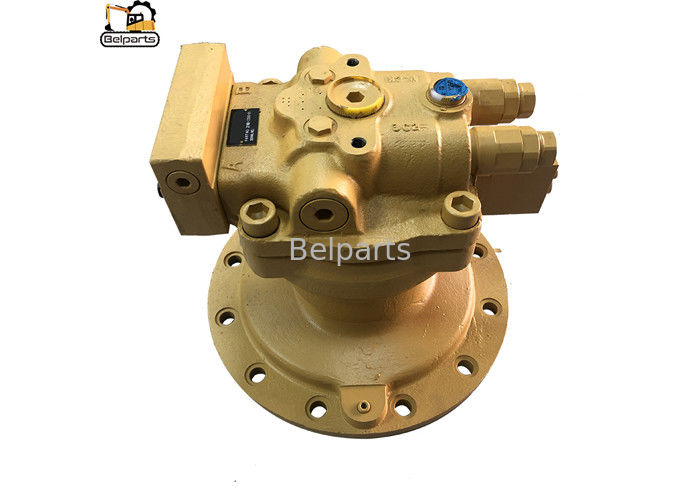

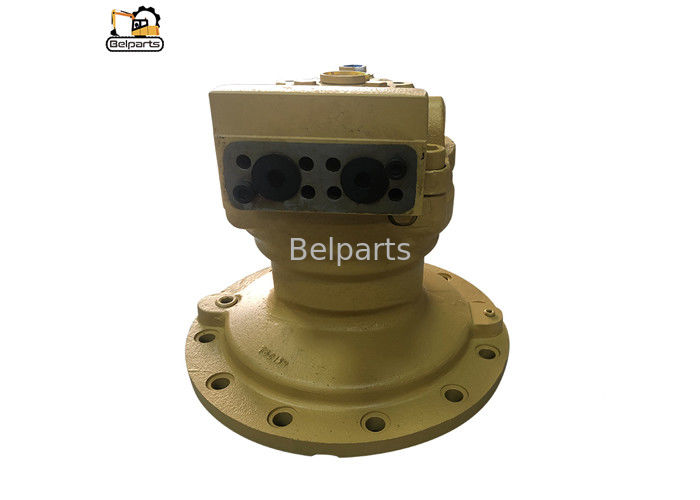

Excavator rotary motor 31N8-12010 R305LC-7 hydraulic swing gearbox assy
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| *-2 | 31N6-10150 | REDUCTION GEAR ILL.CHANGE |
1 | |
| 1 | XKAQ-00002 | CASING ASSY | 1 | |
| 2 | XKAQ-00005 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00018 | SPACER | 1 | |
| 5 | XKAQ-00026 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00032 | SEAL-OIL | 1 | |
| 7 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 8 | XKAQ-00076 | PLATE-THRUST | 1 | |
| 9 | XKAQ-00075 | CARRIER-2 | 1 | |
| 10 | XKAQ-00074 | RING-STOP | 1 | |
| 11 | XKAQ-00073 | GEAR-RING | 1 | |
| 12 | XKAQ-00072 | PIN-KNOCK | 4 | |
| 13 | XKAQ-00014 | GEAR-PINION | 1 | |
| 14 | XKAQ-00071 | WASHER-THRUST | 6 | |
| 15 | XKAQ-00023 | GEAR-PLANET 2 | 3 | |
| 16 | XKAQ-00070 | PIN & BUSHING INCL 23 |
3 | |
| 17 | XKAQ-00048 | PIN-SPRING | 6 | |
| 18 | XKAQ-00011 | GEAR-SUN 2 | 1 | |
| 19 | XKAQ-00015 | CARRIER-1 | 1 | |
| 20 | XKAQ-00057 | PLATE-SIDE 1 | 3 | |
| 21 | XKAQ-00019 | PIN 1 | 3 | |
| 22 | XKAQ-00030 | CAGE-NEEDLE | 3 | |
| N23 | @ | FUEL INJECTION PIPE & NOZZLE | 3 | |
| 24 | XKAQ-00025 | GEAR-PLANET 1 | 3 | |
| 25 | XKAQ-00044 | WASHER-LOCK | 2 | |
| 26 | XKAQ-00068 | PLATE-SIDE 3 | 1 | |
| 27 | XKAQ-00067 | GEAR-SUN 1 | 1 | |
| 29 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 30 | XKAQ-00066 | PLUG | 2 | |
| 31 | XKAQ-00065 | BOLT-SOCKET | 2 | |
| 32 | XKAQ-00035 | PIPE-GAUGE | 1 | |
| 33 | XKAQ-00034 | BAR-GAUGE | 1 | |
| 34 | XKAQ-00031 | PLATE-COVER | 1 | |
| 35 | XKAQ-00064 | BOLT-HEX | 8 | |
| 36 | XKAQ-00043 | PLATE-LOCK | 1 | |
| 37 | XKAQ-00042 | BOLT-HEX | 4 | |
| 38 | XKAQ-00041 | RING-STOP | 3 | |
| 39 | XKAQ-00040 | PLATE-SIDE 2 | 3 | |
| 40 | XKAQ-00143 | AIR BREATHER ASSY | 1 | |
| 40-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 40-2 | HHI22-WP41 | CAP-BREATHER | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4100 |
1 |
Company Information
Factory
Packing & Delivery
Packaging Details:
1.According to orders, pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed with oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
