Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
ZX470-5G

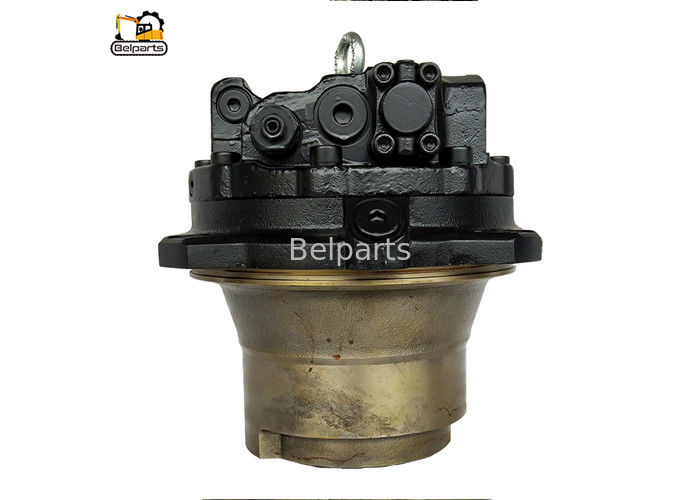

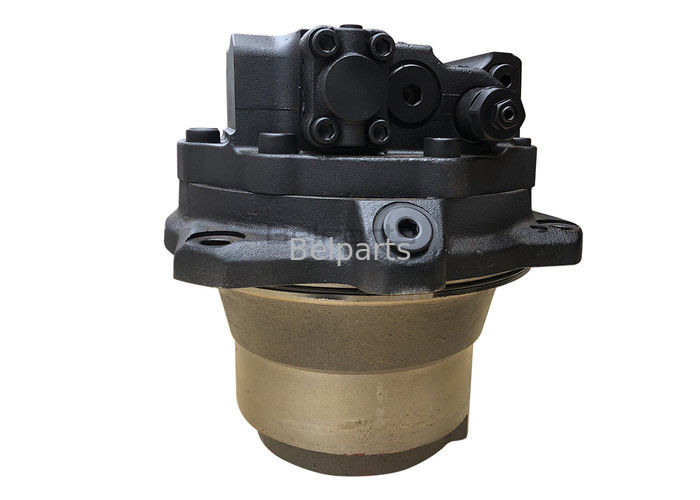

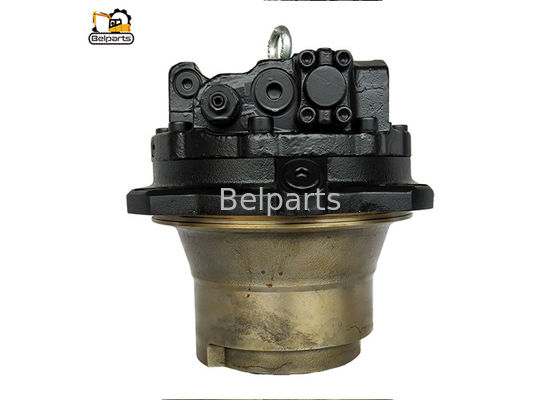

Excavator ZX470-5G 4699092 travel motor assy final drive motor oil
Appliion |
Excavator |
Part name |
Belparts travel motor |
Material |
Steel |
Model |
ZX470-5G |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of spare parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
4699092 | [1] | MOTOR;OIL (2/2) | This PART NO. consisits of all parts shown in MOTOR;OIL (1/2) to (2/2). | |
2. | +++++++ | [1] | PLATE | |
2-1. | +++++++ | [1] | PLATE | |
2-2. | +++++++ | [1] | SPOOL | |
2-2-1. | +++++++ | [1] | SPOOL | |
2-2-2. | +++++++ | [2] | VALVE;CHECK | |
2-2-3. | +++++++ | [2] | SPRING | |
2-2-4. | +++++++ | [2] | PLUG | |
2-2-5. | +++++++ | [2] | O-RING | |
2-3. | 0356914 | [2] | SEAT;SPRING | |
2-4. | 0417802 | [2] | SPRING | |
2-5. | 0809601 | [2] | SEAT;SPRING | |
2-6. | 0979101 | [2] | CAP; | |
2-6-1. | +++++++ | [1] | CAP | |
2-6-2. | +++++++ | [1] | O-RING | |
2-6-3. | +++++++ | [4] | BOLT;SOCKET | |
2-7. | 0806602 | [2] | VALVE;RELIEF | |
2-7-1. | +++++++ | [1] | SEAT | |
2-7-2. | +++++++ | [1] | HOUSING;RELIEF | |
2-7-3. | +++++++ | [1] | POPPET | |
2-7-4. | +++++++ | [1] | SEAT;SPRING | |
2-7-5. | +++++++ | [1] | SPRING | |
2-7-6. | +++++++ | [1] | PLUG | |
2-7-7. | +++++++ | [1] | GUIDE;SPRING | |
2-7-8. | +++++++ | [1] | SCREW;SET | |
2-7-9. | +++++++ | [1] | NUT;LOCK | |
2-7-10. | +++++++ | [1] | PISTON | |
2-7-11. | +++++++ | [1] | O-RING | |
2-7-12. | +++++++ | [1] | O-RING | |
2-7-13. | +++++++ | [1] | O-RING | |
2-7-14. | +++++++ | [1] | O-RING | |
2-7-15. | +++++++ | [1] | RING;BACK-UP | |
2-7-16. | +++++++ | [2] | RING;BACK-UP | |
2-7-17. | +++++++ | [2] | RING;BACK-UP | |
2-9. | +++++++ | [1] | SPOOL | |
2-11. | +++++++ | [2] | ORIFICE | |
2-13. | XB00001457 | [1] | SPRING | |
2-14. | 0671002 | [2] | PLUG | |
2-15. | 4506418 | [2] | O-RING | |
2-19. | 0352304 | [2] | VALVE;CHECK | |
2-20. | 0352305 | [2] | SPRING | |
2-21. | 0352306 | [2] | PLUG | |
2-22. | 4506429 | [2] | O-RING | |
2-23. | +++++++ | [2] | ORIFICE | |
2-24. | +++++++ | [1] | ORIFICE | |
2-25. | 0436608 | [6] | PLUG | |
2-26. | 957366 | [6] | O-RING | |
2-27. | +++++++ | [1] | PLUG | |
2-28. | +++++++ | [7] | PLUG | |
16. | 0682803 | [1] | PIN | |
26. | 0809604 | [10] | SPRING | |
27. | 0251319 | [4] | PIN | |
33. | 0168008 | [9] | BOLT;SOCKET | |
51. | +++++++ | [1] | NAME-PLATE | |
52. | +++++++ | [2] | SCREW;DRIVE | |
400. | XB00001431 | [1] | PLATE | NOTE) The KIT;SEAL of this system is indied at 「MOTOR;OIL (1/2)」. |
