Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
PC400-8

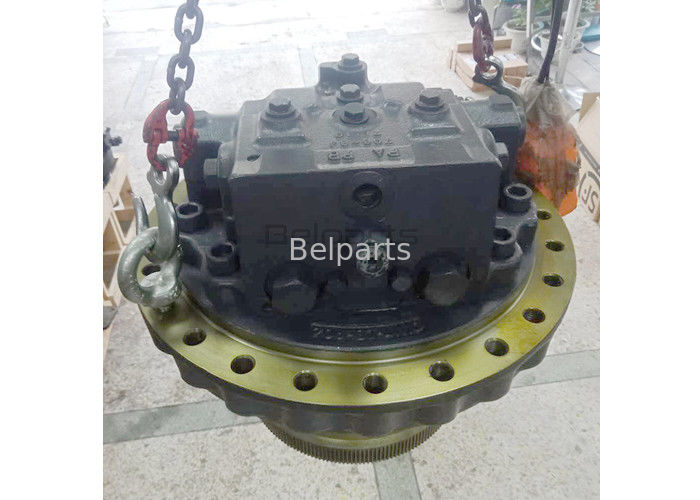

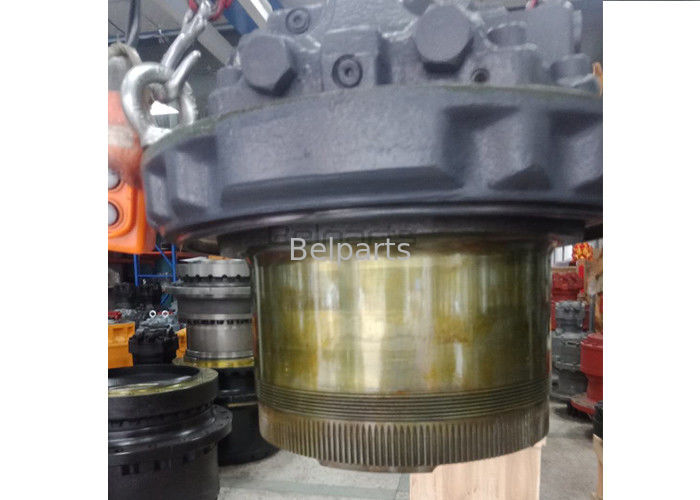

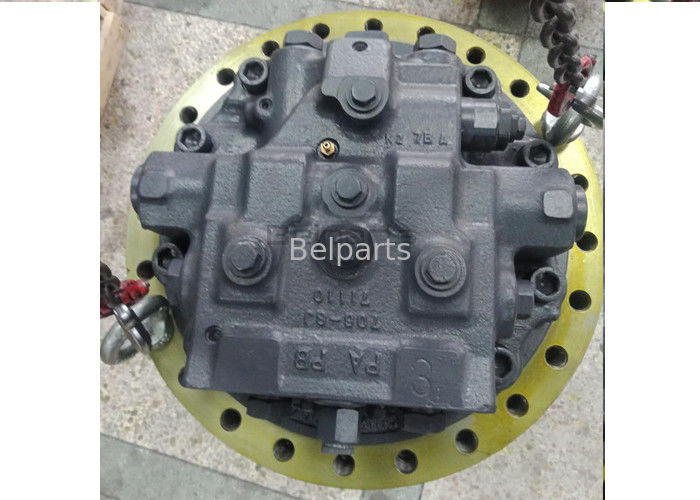

PC400-8 Excavator Final Drive 706-8J-01012 Travel motor assy for komatsu
Appliion |
Excavator |
Part name |
Belparts travel motor |
Material |
Steel |
Model |
PC400-8 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
1 | (706-8J-01012) | MOTOR ASS'Y | 1 | |
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-11A0 TO Y1641-13A0 | ||||
1 | (*706-8J-41610) | SHAFT,DRIVE | 1 | |
2 | (*706-8J-41010) | Bearing | 1 | |
3 | (*706-77-42890) | Bearing | 1 | |
4 | (*706-8J-41810) | Retainer | 1 | |
5 | (*706-8J-41660) | SPACER KIT | 1 | |
5 | SPACER? 2.1MM | 1 | ||
5 | SPACER? 2.3MM | 1 | ||
5 | SPACER? 2.5MM | 1 | ||
5 | SPACER? 2.7MM | 1 | ||
5 | SPACER? 1.9MM | 1 | ||
6 | 04064-06525 | RING, RETAINING | 1 | |
7 | 706-8J-41620 | SEAL,OIL | 1 | |
8 | 706-8J-41820 | Spacer | 1 | |
9 | (*04065-09030) | RING,SNAP | 1 | |
10 | (*706-8J-41280) | SHAFT,CENTER | 1 | |
11 | (*706-8J-41270) | RING,CENTER | 1 | |
12 | (*706-8J-41290) | Spring | 1 | |
13 | (*706-8J-41260) | Retainer | 1 | |
14 | (*708-23-12350) | Screw | 7 | |
15 | (*706-8J-41161) | PISTON SUB ASS'Y | 7 | |
16 | (*706-7K-91340) | Plate | 5 | |
17 | (*706-7K-91350) | Disc | 4 | |
18 | (*706-8J-91110) | PISTON,BRAKE | 1 | |
19 | (*07000-15230) | O-ring | 1 | |
20 | (*07001-05230) | RING,BACK-UP | 1 | |
21 | (*708-8H-15220) | O-ring | 1 | |
22 | (*706-8J-91120) | RING,BACK-UP | 1 | |
23 | (*706-8J-91130) | Spring | 6 |
|
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
