Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
EC210BLC
Video

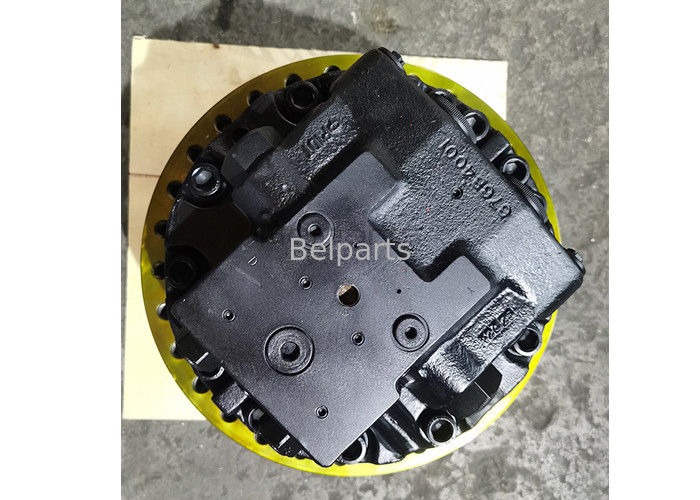

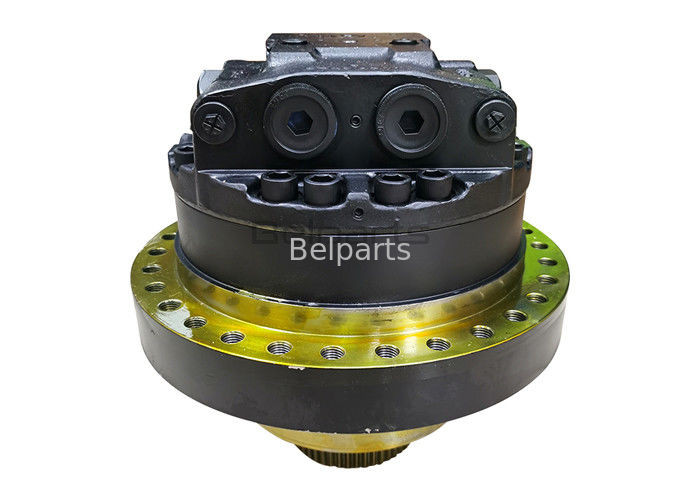

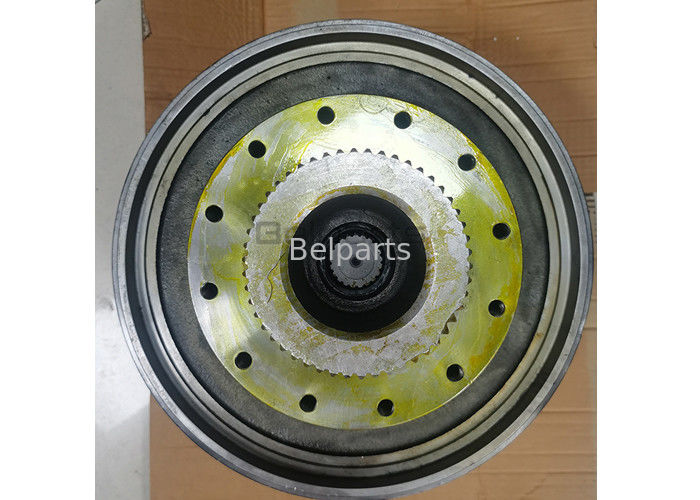

Excavator EC210BLC motor oil SA1143-01270 hydraulic travel motor
|
Name or description of a commodity |
Travel Motor |
|
Production address |
China |
|
Type
|
EC210BLC |
|
Minimum Order Quantity |
1 piece |
|
Payment Method |
T/T & Paypal |
|
Shipping Time |
Within 2 days after receiving The payment |
|
Packaging |
The first layer is packed in plastic and the second in wooden cases |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 8277784 | ||||
| SA 1143-01270 | Travel motor SER NO 10001-12714SER NO 30001-30315 |
1 | ||
| VOE 14524184 | Travel motor SER NO 12715-14677SER NO 30316-30780 |
1 | ||
| VOE 14533651 | Travel motor SER NO 14678-SER NO 30781- |
1 | ||
| 1 | SA 8230-21631 | Piston | 1 | |
| 2 | SA 8230-28900 | Piston | 9 | |
| 3 | VOE 14500075 | Piston | 1 | |
| 4 | VOE 14500076 | Seat | 1 | |
| 5 | Block | 1 | ||
| 6 | SA 8230-21530 | Plate | 1 | |
| 7 | SA 8230-21540 | Ball | 1 | |
| 8 | SA 8230-31160 | Washer | 2 | |
| 9 | SA 8230-21560 | Washer | 1 | |
| 10 | SA 8230-21570 | Spring | 1 | |
| 11 | VOE 14500077 | Ring | 1 | |
| 12 | VOE 14500078 | Bearing | 5 | |
| 13 | SA 8230-15140 | Piston | 1 | |
| 14 | VOE 14500079 | Piston | 1 | |
| 15 | VOE 14500080 | Seat | 1 | |
| 16 | SA 8230-33140 | Shaft | 1 | |
| 17 | SA 8230-21520 | Plate | 1 | |
| 18 | SA 8230-21550 | Plate | 1 | |
| 19 | SA 8230-21650 | Piston | 1 | |
| 20 | SA 8230-21660 | Spring | 12 | |
| 21 | SA 8230-21670 | Plate | 2 | |
| 22 | SA 8230-03560 | Plate | 2 | |
| 23 | SA 8230-27160 | Sealing ring | 1 | |
| 24 | SA 9511-12175 | O-ring | 1 | |
| 25 | SA 9511-12210 | O-ring | 1 | |
| 26 | SA 8230-21580 | Ball Bearing | 1 | |
| 27 | SA 8230-21590 | Ball Bearing | 1 | |
| 28 | SA 8230-21600 | Support | 2 | |
| 29 | SA 8230-21610 | Pin | 4 | |
| 30 | SA 8230-15150 | Spring | 1 | |
| 31 | VOE 14500089 | Spindle SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14535473 | Spindle SER NO 14678-SER NO 30781- more |
1 | ||
| 32 | SA 9511-12008 | O-ring more | 2 | |
| 33 | SA 9511-22230 | O-ring | 1 | |
| 34 | SA 8220-13340 | Pin | 1 | |
| 35 | VOE 14500083 | Flange | 1 | |
| 36 | SA 8230-21790 | Flange | 1 | |
| 37 | VOE 14500084 | Flange | 1 | |
| 38 | VOE 14500085 | Spool | 1 | |
| 39 | VOE 14535476 | Piston | 1 | |
| 40 | SA 8230-02710 | Plug | 2 | |
| 41 | SA 8230-21700 | Stop | 2 | |
| 42 | SA 8230-03590 | Plug | 2 | |
| 43 | SA 8230-03600 | Check valve | 2 | |
| 44 | SA 8230-02760 | Spring | 2 | |
| 45 | SA 8230-03610 | Spring | 2 | |
| 46 | SA 8220-14930 | Plug | 4 | |
| 47 | SA 9511-12032 | O-ring more | 2 | |
| 48 | SA 9511-1222A | O-ring | 2 | |
| 49 | SA 8230-30410 | Plug | 2 | |
| 50 | SA 8230-19210 | Plug | 2 | |
| 51 | SA 8220-14920 | Plug | 8 | |
| 52 | SA 8230-20520 | Plug | 2 | |
| 53 | SA 8230-21710 | Spool | 1 | |
| 54 | VOE 14500087 | Spring | 1 | |
| 55 | SA 9676-38000 | Ball SER NO 10001-14677SER NO 30001-30780 more |
2 | |
| VOE 14535475 | Ball SER NO 14678-SER NO 30781- more |
2 | ||
| 56 | SA 8230-08630 | Filter | 1 | |
| 57 | SA 8230-23140 | Plug | 2 | |
| 58 | SA 8230-21890 | Plug | 2 | |
| 59 | SA 9511-12005 | O-ring | 2 | |
| 60 | SA 9511-12008 | O-ring more | 2 | |
| 61 | VOE 14500088 | Ball | 2 | |
| 62 | SA 9511-12011 | O-ring more | 2 | |
| 63 | SA 9511-12018 | O-ring more | 2 | |
| 64 | SA 9511-12014 | O-ring more | 2 | |
| 65 | SA 8230-27130 | Orifice SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14535474 | Orifice SER NO 14678-SER NO 30781- more |
1 | ||
| 66 | SA 9016-11608 | Bolt | 12 | |
| 67 | SA 8230-21640 | Relief valve | 2 | |
| 100 | SA 8230-21810 | Sealing Kit more | 1 |
|
