Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
SK75UR SK60-5

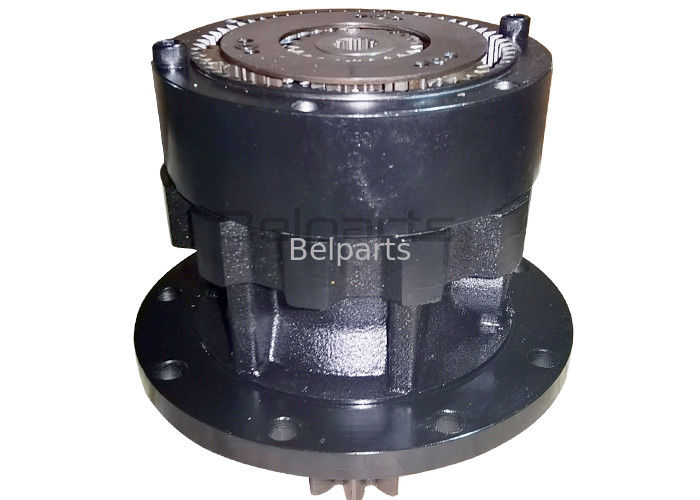

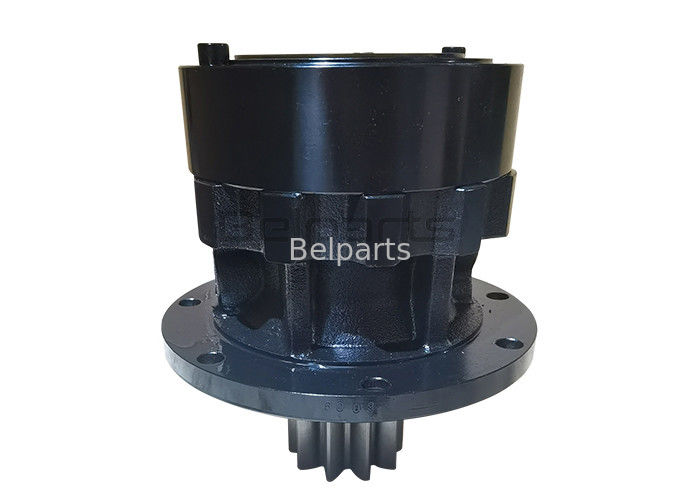

Excavator SK75UR SK60-5 swing gearbox 24100J11943F1 hydraulic swing device
Appliion |
Excavator |
Part name |
Belparts |
Material |
Steel |
Model |
SK75UR SK60-5 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of spare parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
. . | 24100J11943F1 | [1] | HYDRAULIC MOTOR | KOB Superseded by part number: 24100J11943F2 |
1. | 2401N559 | [1] | FINGER ASSY. | KOB |
2. | 2418T8471 | [1] | SLEEVE | KOB |
3. | 2418N1914 | [1] | RETAINER | KOB |
4. | 2414J1304 | [1] | HOUSING | KOB |
5. | R25P0046D1 | [1] | ROLLER BEARING | KOB |
6. | 25Z627D9 | [1] | BEARING | KOB ROLLER |
7. | 2413N460 | [1] | DIFF. SPIDER | KOB SPIDER |
8. | 2413N459F1 | [1] | SPIDER | KOB |
9. | 2401N476 | [1] | RING GEAR | KOB |
10. | 2425Z543 | [3] | NEEDLE BEARING | KOB |
11. | ZS23C10110 | [8] | SCREW,Hex Socket Head, M10 x 110mm | KOB M10x1.50x110mm |
12. | 2401P1319 | [1] | SUN GEAR | KOB |
13. | 2425Z544 | [4] | NEEDLE BEARING | KOB |
14. | 2401P1320 | [3] | PINION | KOB |
15. | 2401P1322 | [4] | PINION | KOB |
16. | ZD11G07000 | [1] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOB ID 69.40 ± 0.61 x OD 75mm |
17. | ZS23C08025 | [8] | SCREW,Hex Socket Head, M8 x 25mm | KOB M08x1.25x25mm |
18. | ZD21T10500 | [1] | OIL SEAL | KOB Superseded by part number: 2418R7D6 |
19. | 2418T8472 | [1] | SPACER | KOB |
20. | 2418T8473 | [2] | SPACER | KOB |
21. | 2401P1321 | [1] | SUN GEAR | KOB |
22. | 2418T20860 | [3] | LOCKING RING | KOB |
23. | 2418T20857 | [6] | THRUST WASHER | KOB |
24. | ZR16X05500 | [1] | RING | KOB SNAP |
25. | ZP26D08016 | [4] | ROLL PIN | KOB SPRING |
26. | ZS83C16018 | [2] | SCREW | KOB M16x2.0x18mm |
27. | 2418T20856 | [8] | THRUST WASHER | KOB |
28. | 2410T359 | [4] | SHAFT | KOB |
29. | 2441U834P1 | [1] | MOTOR | |
29-1. | 2436U1431F1 | [1] | CONTROL VALVE | KOB Superseded by part number: 2436U1431F5 |
29-2. | 2441U814F1 | [1] | HYDRAULIC MOTOR | KOB SEE(C.P.M) |
29-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOB BREAKE |
29-4. | ZS23C12135 | [6] | SCREW,Hex Socket Head, M12 x 135mm | KOB M12x1.75x135mm |
29-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
30. | 2420T6698D2 | [1] | PIPE | KOB |
31. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
32. | ZR16X03000 | [1] | SNAP RING | KOB SNAP |
33. | ZG31U12000 | [1] | ELBOW | KOB 90° |
. . | 24010P3F16 | [1] | KIT, SHAFT CONSISTS OF REF 28 | KIT, SHAFT CONSISTS OF REF 28 |
