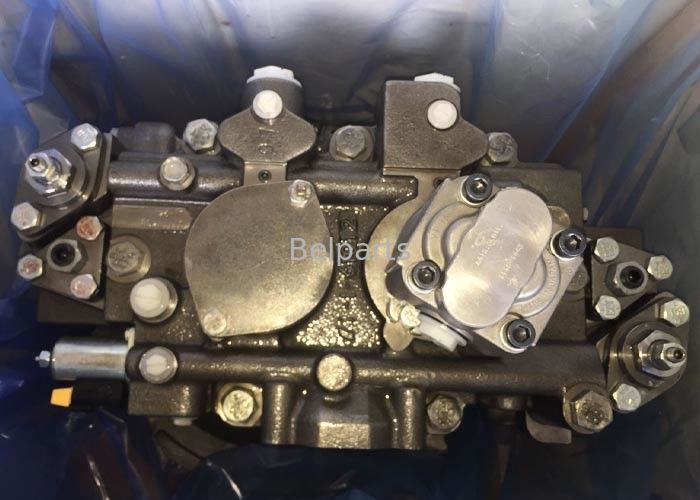

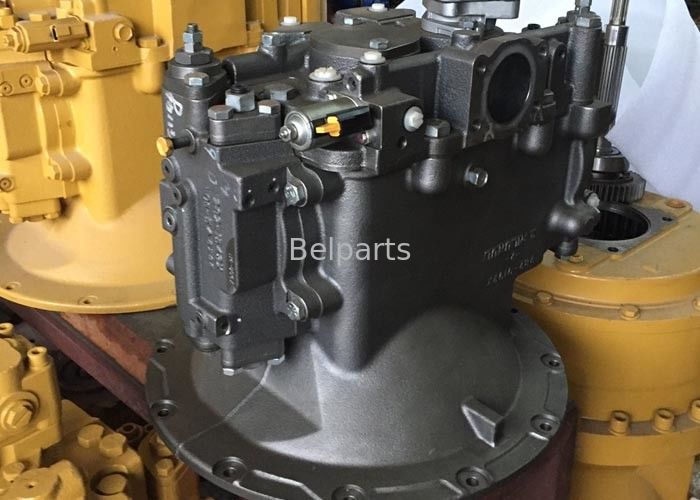

E315C main pump 176-3963 SBS80 Hydraulic Pump piston pump for excavator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | E315C | Weight | 150Kg |
|---|---|---|---|
| Color | Black | Warranty | 1 Year |
| Quality | High Quality | Texture | Steel |
| Condition | 100% New | Part Name | Hydraulic Pump/Main Pump |
| High Light | SBS80 Hydraulic Gear Pump,176-3963 Hydraulic Gear Pump,E315C Hydraulic Gear Pump |
||
Product Description
E315C main pump 176-3963 SBS80 Hydraulic Pump piston pump for excavator
| Model NO. | E315C main pump 176-3963 SBS80 Hydraulic Pump piston pump for excavator |
| Description | Direct Factory Manufacture Hydraulic pump for 315C Excavator |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | excavator |
| Condition | 100% brand new |
| Warranty | 1 Year |
| Packing | standard packing(fiberboad carton/wooden case)or as customzied |
| Payment term | T/T, PayPal,Alipay..etc. |
| Shipment | 1~7days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |
List of spare parts
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 1 | 2095894 | SHAFT | 1 |
| 2 | 0874743 | STOPPER | 2 |
| 3 | 0941399 | RING - RETAINING | 1 |
| 4 | 7Y4212 | BEARING | 1 |
| 5 | 0874757 | PISTON | 2 |
| 6 | 1076969 | BODY | 1 |
| 7 | 1225114 | GUIDE - BALL | 1 |
| 8 | 1844535 | PLATE-CAM | 1 |
| 9 | 1475860 | PISTON AS | 1 |
| 10 | 1336777 | BARREL AS | 1 |
| 11 | 1076954 | PLATE (FRICTION) | 4 |
| 12 | 1076955 | PLATE (SEPARATOR) | 5 |
| 13 | 1076976 | SHIM (1.20-MM THK) | 1 |
| 14 | 1076977 | SHIM (1.40-MM THK) | 1 |
| 15 | 1076970 | HEAD | 1 |
| 16 | 8T4944 | BOLT - SOCKET HEAD (M16 X X2 X 40 MM) | 10 |
| 17 | 1076978 | SHIM (1.60-MM THK) | 1 |
| 18 | 1076979 | SHIM (1.80-MM THK) | 1 |
| 19 | 1076980 | SHIM (1.0MM THK) | 1 |
| 20 | 1076981 | SHIM (0.80-MM THK) | 1 |
| 21 | 1076974 | WASHER SET-BELLEVILLE | 1 |
| 22 | 1076972 | GUIDE (PISTON) | 1 |
| 23 | 0965916 | SHEET | 2 |
| 24 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 2 |
| 25 | 0951572 | SEAL - O-RING (4.80 MM ID) | 2 |
| 26 | 0965919 | RING (5.00MM ID) | 2 |
| 27 | 0965915 | RETAINER | 2 |
| 28 | 0964003 | BEARING, NEEDLE | 1 |
| 29 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 1 |
| 30 | 1373723 | VALVE | 1 |
| 31 | 0961519 | SHEET | 1 |
| 32 | 0957380 | SPRING | 1 |
| 33 | 1373708 | RETAINER | 1 |
| 34 | 0941875 | PIN, ROLLER | 1 |
| 35 | 1076971 | PISTON (BRAKE) | 1 |
| 36 | 0941882 | PLUG, TAPERED | 11 |
| 37 | 0951575 | SEAL - O-RING (7.80 MM ID) | 3 |
| 38 | 0964378 | RING (BACK UP) | 1 |
| 39 | 0964377 | SEAL - O-RING (190.0 MM ID) | 2 |
| 40 | 1076986 | SEAL-O-RING (152.5MM ID) | 1 |
| 41 | 0957383 | SEAL-O-RING (ID=174.00mm) | 1 |
| 42 | 0957386 | RING (175.25MM ID) | 1 |
| 43 | 1076987 | RING-BACKUP (154.20MM ID) | 1 |
| 44 | 0951685 | SEAL - O-RING (179.3 MM ID) | 1 |
| 45 | 1184057 | SPRING | 9 |
| 46 | 7Y4215 | SPACER | 1 |
| 47 | 0951586 | SEAL - O-RING (19.80 MM ID) | 2 |
| 48 | 7Y4217 | RING (20.0MM ID) | 2 |
| 49 | 0964376 | SEAL (LIP TYPE) | 1 |
| 50 | 1232008 | KEY | 2 |
| 51 | 0874786 | ADAPTER | 1 |
| 52 | 1211558 | PIN | 2 |
| 53 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 1 |
| 54 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 1 |
| 55 | 0951700 | SEAL - O-RING (34.40 MM ID) | 2 |
| 56 | 7Y4224 | ORIFICE | 2 |
| 57 | 0963978 | SPRING | 1 |
| 58 | 7Y4216 | SPOOL | 1 |
| 59 | 2M9780 | SEAL--TO CONNECTOR PUMP OUTLET | 1 |
| AVAILABLE REPAIR KIT(S): | |||
| 1076988 | KIT-SEAL (TRAVEL MOTOR) | 1 | |
| USE AS REQUIRED | |||
| KIT MARKED J SERVICES PARTS MARKED J | |||
| METRIC PART |
