Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
DX300-7 DX340LC

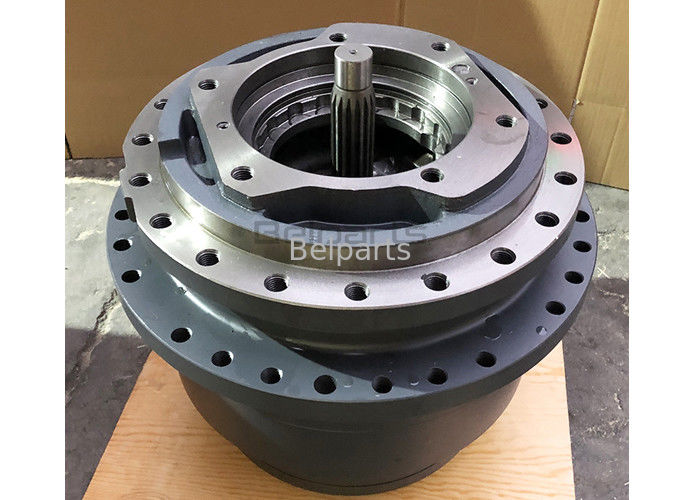

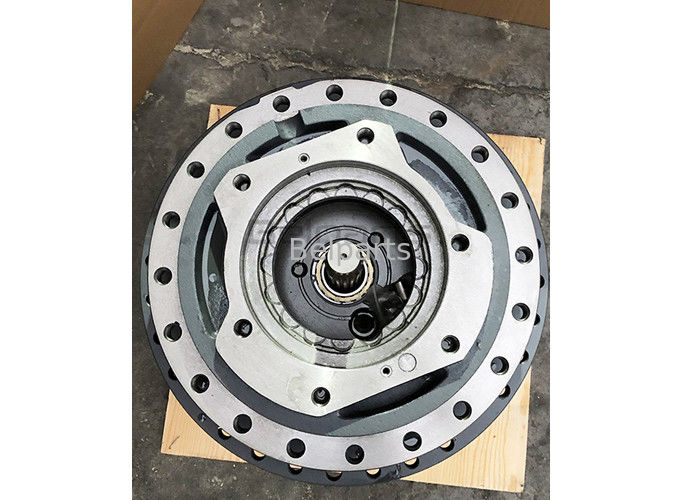

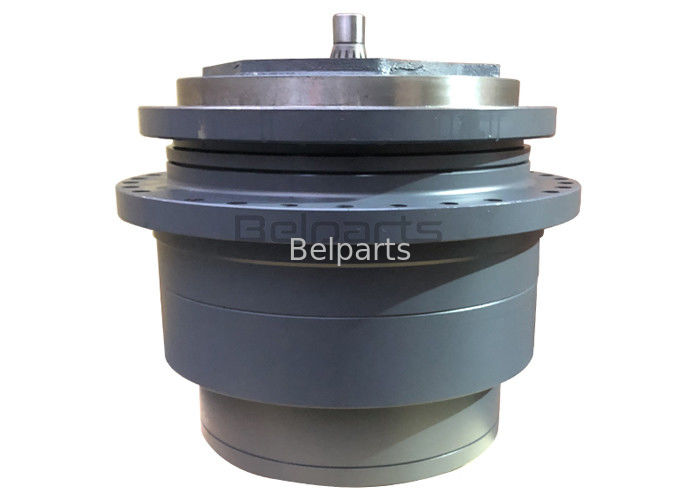

Excavator DX300-7 DX340LC hydraulic travel gearbox 123-00285 travel reducer
Appliion | Excavator |
Part name | Belparts swing motor |
Material | Steel |
Model | DX300-7 DX340LC |
MOQ | 1PC |
Payment term | T/T, Paypal, Trade assurance, or as required |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express, or as required |
List of spare parts
# | Part No | Part Name | Comment | Qty. | Price request |
---|---|---|---|---|---|
- | K1003134 | TRAVEL REDUCTION GEAR | 2 | ||
1 | 104-00035 | GEAR, RING | 33 kg | 1 | |
2 | 1.402-00129 | HOUSING | 49 kg | 1 | |
4 | 1.430-00216 | COVER, SIDE | 12 kg | 1 | |
5 | 1.230-00009 | CARRIER NO.1 | 54 kg | 1 | |
6 | 1.230-00015 | CARRIER NO.2 | 10 kg | 1 | |
9 | 404-00080 | GEAR, SUN NO.1 | 1 kg | 1 | |
10 | 404-00081 | GEAR, SUN NO.2 | 2 kg | 1 | |
11 | 404-00082 | GEAR, SUN NO.3 | 6 kg | 1 | |
12 | 1.403-00061 | GEAR, PLANETARY NO.1 | 1 kg | 3 | |
13 | 1.403-00065 | GEAR, PLANETARY NO.2 | 1 kg | 3 | |
14 | 104-00036 | GEAR, PLANETARY NO.3 | 3 kg | 4 | |
16 | K9002264 | PIN NO.2 | 1 kg | 3 | |
17 | 123-00285 | PIN NO.3 | 1 kg | 4 | |
18 | 1.412-00121 | PLATE, SIDE E | 3 | ||
19 | 1.412-00117 | PLATE, SIDE A | 6 | ||
20 | 412-00038 | PLATE, SIDE F | 8 | ||
21 | 1.216-00017 | CAGE, NEEDLE | 3 | ||
22 | 1.216-00015 | CAGE, NEEDLE | 3 | ||
23 | 1.216-00018 | CAGE, NEEDLE | 4 | ||
24 | 1.115-00232 | RING, INNER | 3 | ||
25 | 110-00126 | BUSH, FLOATING | 1 kg | 4 | |
26 | 114-00347 | RING, THRUST 60 | 2 | ||
27 | 114-00348 | RING, THRUST 90 | 1 | ||
29 | S2222671 | BOLT, SOCKET M16X100 | 28 | ||
30 | S2208871 | BOLT HEX SOCKET HD CL | 12 | ||
32 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 3 | |
33 | 109-00145 | BEARING, ANGULAR | 7 kg | 2 | |
34 | 180-00345 | SEAL, FLOATING | 3 kg | 1 | |
35 | 1.114-00054 | SHIM 1.0 | 1 | ||
36 | 1.123-00081 | PIN, SPRING | 3 | ||
37 | S6510420 | RING, RETAINING | 4 | ||
44 | S6500450 | RING, SNAP | 3 | ||
45 | 124-00150 | CLIP | 1 | ||
46 | 124-00151 | CLIPW | 1 | ||
47 | 1.115-00248 | NUT, RING | 3 kg | 1 | |
53 | 1.114-00306 | WASHER 1.0t | 1 | ||
53 | K9002676 | WASHER 1.5t | 1 | ||
54 | K9006417 | SCREW, SET | 6 | ||
81 | 1.180-00162 | O-RING | 1 | ||
82 | 1.180-00163 | O-RING | 1 | ||
83 | S8000181 | O-RING | 1BP18 | 3 | |
901 | 1.230-00012 | CARRIER NO.1 SUB ASS'Y | 9 kg | 1 | |
902 | 1.230-00018 | CARRIER NO.2 SUB ASS'Y | 17 kg | 1 |
|
