EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction

EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction

EX60-1 Hydraulic Travel Gearbox

9069295 Hydraulic Travel Gearbox

9069295 Travel Reduction

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

EX60-1

Contact Us
Request A Quote
Product Details
Model Name:
EX60-1
Price:
Negotiable Price
Port:
Huangpu, Guangzhou
Part Number:
9069295
Place Of Origin:
Guangdong, China
Delivery Time:
1-7 Days
Brand Name:
Belparts
MOQ:
1PC
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Trade Assurance
Supply Ability
1000pieces
Product Description

Excavator EX60-1 hydraulic travel gearbox 9069295 travel reduction



Appliion

Excavator

Part name

Belparts

Material

Steel

Model

EX60-1

MOQ

1PC

Payment term

T/T, Paypal, Trade assurance, or as required

Delivery

2 days after the payment received

Shipment

by sea, by air, by express, or as required

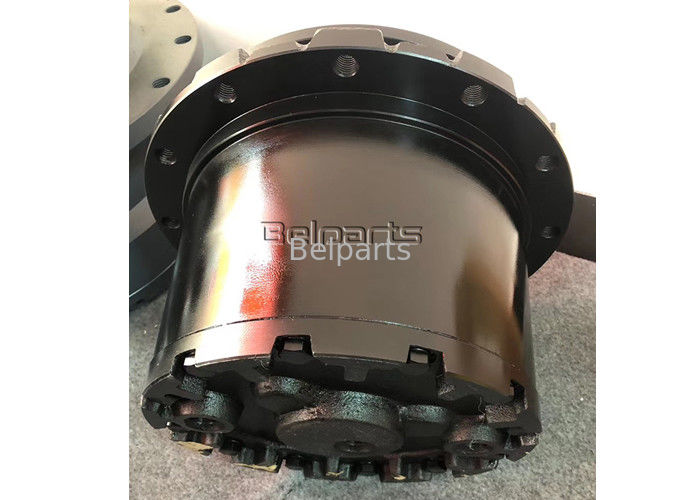

EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 0

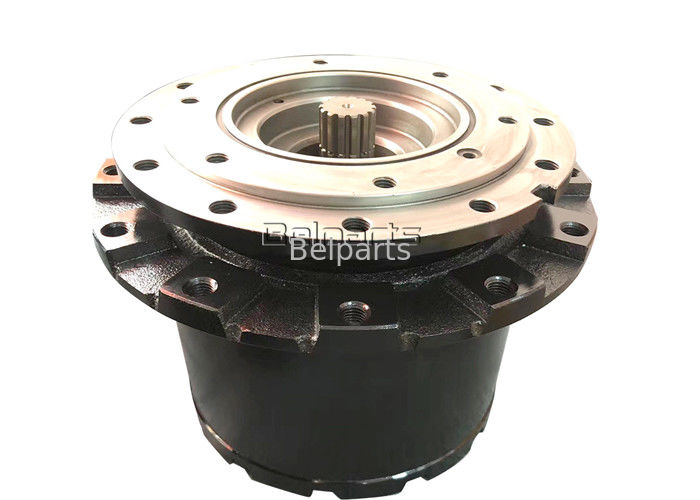

EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 1

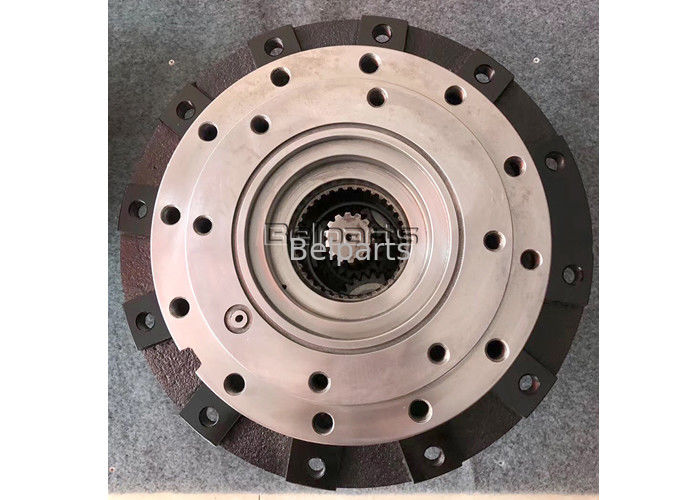

EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 2



List of spare parts



Pos. Part No Qty Parts name Comments
00. 9069509 [1] MOTOR;OIL I 9123069
00. 9123069 [1] MOTOR;OIL Y 9138838
00. 9138838 [1] MOTOR;OIL
00-49. 9069295 [2] TRAVEL DEVICE ASS'Y Y 9096479
00-54. 9096479 [2] TRAVEL DEVICE ASS'Y I 9138927
00-54. 9138927 [2] TRAVEL DEVICE ASS'Y
01. 1011457 [1] HOUSING
02. 4092443 [1] SPACER
03. 991726 [1] RING;RETAINING
04. 4148014 [2] BRG.;ROL
05. 4092483 [1] SEAL;GROUP
06. 1011458 [1] DRUM
07. 1010447 [1] SPROCKET
08. J931635 [12] BOLT Y J931640
08. J931635 [12] BOLT
08. J931640 [12] BOLT Y J931635
09. A590916 [12] WASHER;SPRING
11. 2023132 [1] GEAR;RING
12. 3027147 [1] NUT
13. 4148012 [1] PIN;KNOCK
16. 2023175 [1] CARRIER
17. 3027146 [1] GEAR;SUN
18. 959499 [1] RING;RETAINING
19. 3027148 [3] GEAR;PLANETARY
20. 4177007 [3] BRG.;NEEDLE
21. 4192910 [6] PLATE;THRUST
22. 4178202 [3] PIN
23. 4169566 [3] PIN;SPRING
23. 4173093 [3] PIN;SPRING Y 4169566
25. 1010450 [1] CARRIER
26. 3027149 [3] GEAR;PLANETARY
27. 4148013 [3] BRG.;NEEDLE
28. 4148016 [3] PIN
29. 4144017 [3] PIN;SPRING
30. J011230 [12] BOLT;SEMS
30. M221232 [12] BOLT I J011230
31. A590912 [12] WASHER;SPRING
33. 4245797 [3] PLUG
33. 94-2013 [2] PLUG
33. 94-2013 [3] PLUG Y 4245797
34. 4148080 [6] PLATE;THRUST
35. 2017872 [1] SHAFT;PROP.
36. 4092444 [1] SPACER
37. 3036156 [6] PLATE T 3070674
37. 3036156 [6] PLATE T 3070675
37. 3070675 [6] PLATE
38. 3036157 [5] PLATE;FRICTION T 3070674
38. 3036157 [5] PLATE;FRICTION T 3070675
38. 3070674 [5] PLATE;FRICTION
39. 3036158 [1] PISTON
40. 4092712 [1] D-RING
41. 4092713 [1] D-RING
42. 3017067 [1] SPRING;DISC
44. 4154877 [1] O-RING
45. 957366 [1] O-RING
46. 929231 [1] RING
47. 94-2010 [1] PLUG
48. 4192042 [6] BOLT;SOCKET
49. A590914 [6] WASHER;SPRING
53. M492564 [2] SCREW;DRIVE
54. 3053559 [1] NAME-PLATE Y 3071686
54. 3071686 [1] NAME-PLATE (FOR TRANSMISSION)
60. J931650 [24] BOLT
61. A590916 [24] WASHER;SPRING

Company Information


EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 3

Company Profile




EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 4

GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.

> Self-improvement
We will always remain active and positive to be self-improvement with great effort.

> Integrity
Belparts holds a belief: have faith in ourselves, have confidence in others. We are faithful and honest to everyone, and to all of our partners.

> Innovation
Belparts is committed to bringing in new methods to create innovation in its production.

> Share
Belparts is a team, we share difficulties and achievements.





Exhibition


EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 5

Delivery


EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 6

EX60-1 Hydraulic Travel Gearbox 9069295 Travel Reduction 7

  • 1.Outside packing: standard export carton packing;
  • 2.According to orders, pack the spare parts one by one in a small plastic bag;
  • 3.Put them into small carton boxes one by one;
  • 4.Put the packed small carton boxes into bigger carton boxes one by one;
  • 5.Put the bigger carton boxes into wooden boxes if necessary especially for
  • the shipments by sea.
