Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
SK330-6

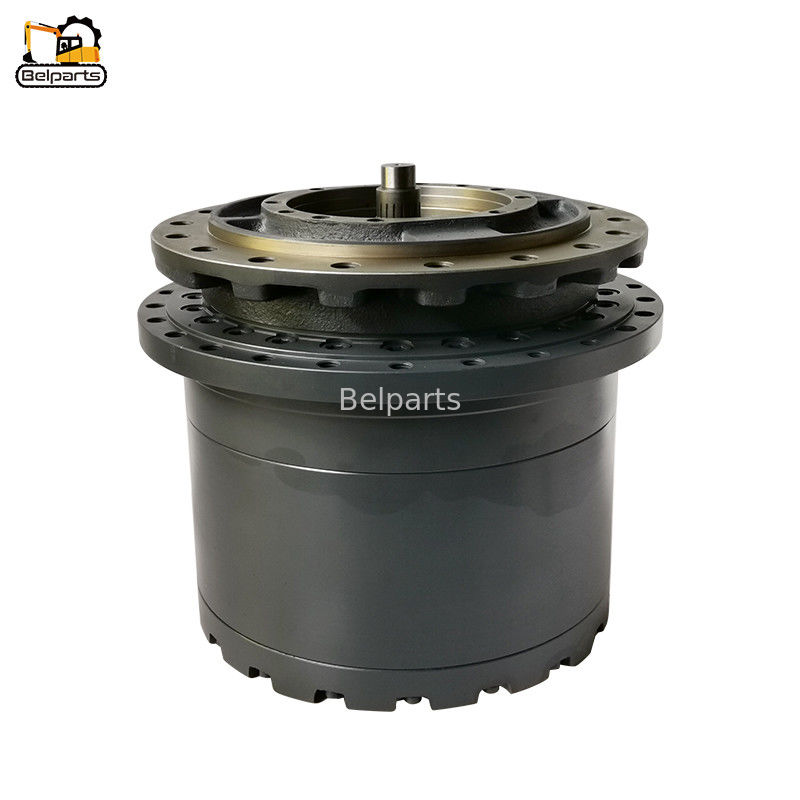

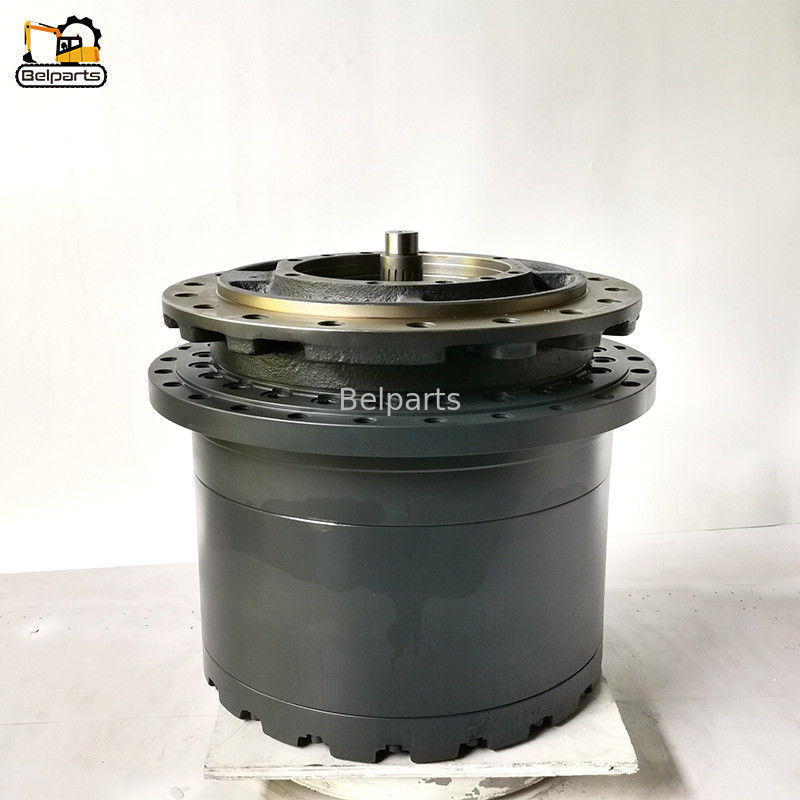

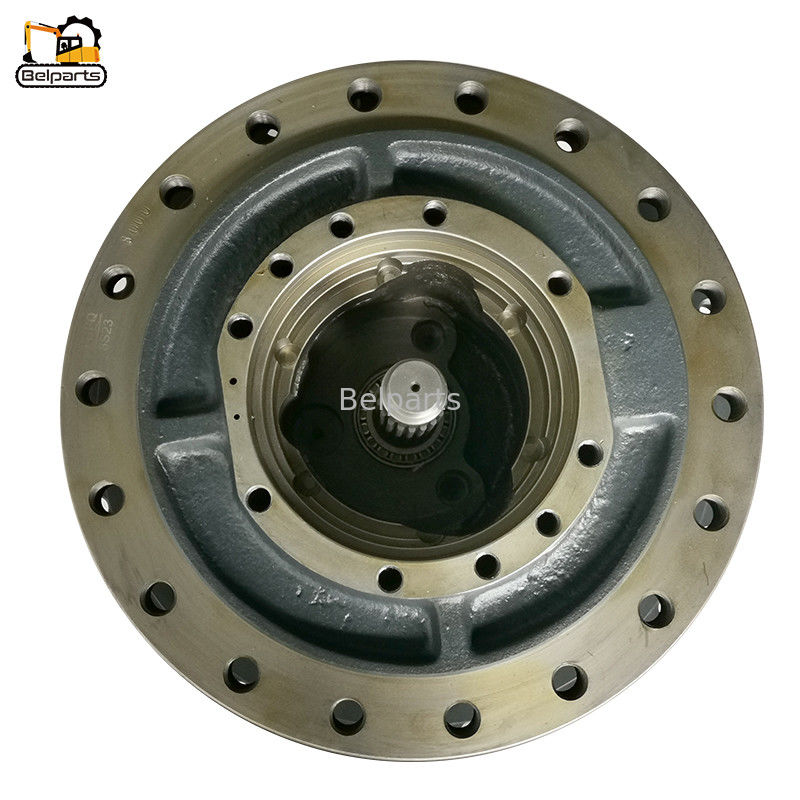

Excavator SK330-6 hydraulic travel gearbox LC15V00026F1 LC15V00026F2
|
Name or description of a commodity |
Travel Gearbox |
|
Production address |
China |
|
Type
|
sk330-6 |
|
Minimum Order Quantity |
1 piece |
|
Payment Method |
T/T & Paypal |
|
Shipping Time |
Within 2 days after receiving The payment |
|
Packaging |
The first layer is packed in plastic and the second in wooden cases |
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LC15V00023F1 | [1] | HYDRAULIC MOTOR | KOB Assembly, Incls. LC15V00026F1 -- Not Shown Superseded by part number: LC15V00023F2 |
| . . | LC15V00023F2R | [1] | REMAN-HYD MOTOR | KOB SK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN FOR NEW PN LC15V00023F1 |
| . . | LC15V00023F2C | [1] | CORE-MOTOR HYDRAULIC | KOB Return Number |
| . . | LC15V00026F1 | [1] | HYDRAULIC MOTOR | KOB Hydraulic Motor Superseded by part number: LC15V00026F2 |
| 1. | LC53D00007S018 | [1] | HOUSING | KOB |
| 2. | 24100U1682S19 | [2] | BALL BEARING | KOB |
| 3. | LC53D00007S017 | [1] | GEAR | KOB RING |
| 4. | ZS23C18110 | [25] | SCREW,Hex Socket Head, M18 x 110mm | KOB M18x2.50x110mm |
| 5. | 24100U1743S24 | [1] | SEAL | KOB |
| 6. | 24100U1682S20 | [1] | SHIM | KOB |
| 7. | 24100U1682S21 | [2] | LOCK WASHER | KOB |
| 8. | 24100U1682S22 | [1] | RING | KOB |
| 9. | LC53D00007S011 | [1] | CARRIER | KOB |
| 10. | LC15V00023S010 | [3] | PLANETARY GEAR | KOB |
| 11. | LC53D00007S016 | [6] | WASHER | KOB THRUST |
| 12. | LC15V00023S012 | [3] | BEARING | KOB NEEDLE |
| 13. | LC53D00007S012 | [3] | CARRIER | KOB |
| 14. | ZP26D10050 | [3] | PIN | KOB SPRING |
| 15. | LC15V00023S015 | [1] | GEAR | KOB SUN |
| 16. | LC53D00007S002 | [1] | CARRIER | KOB |
| 17. | LC15V00023S017 | [3] | PLANETARY GEAR | KOB |
| 18. | LC53D00007S005 | [6] | WASHER | KOB THRUST |
| 19. | LC15V00023S019 | [3] | BEARING | KOB NEEDLE |
| 20. | LC53D00007S003 | [3] | PIN | KOB |
| 21. | ZP26D06036 | [3] | PIN | KOB Roll -- OD 06 x 36mm Long |
| 22. | LC15V00023S022 | [1] | GEAR | KOB SUN |
| 23. | LQ15V00005S008 | [1] | PLATE | KOB |
| 24. | LC15V00023S024 | [1] | COVER | KOB |
| 25. | ZS28C10030 | [18] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10x1.50x30mm |
| 26. | YR30V00001S116 | [2] | PLUG | KOB |
| 27. | ZD12P02400 | [2] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 28. | LC15V00023S028 | [1] | CASE | KOB |
| 29. | LC15V00023S029 | [1] | PLUG | KOB |
| 30. | 2441U1040S27 | [1] | RING | KOB |
| 31. | 2441U1040S19 | [1] | COVER | KOB |
| 32. | 2436U1749S17 | [1] | PLUG | KOB |
| 33. | NSS | [1] | NOT SOLD SEPARAT | CON PISTON |
| 34. | NSS | [1] | NOT SOLD SEPARAT | CON SEAL,PISTON |
| 35. | LC15V00023S035 | [1] | BALL | KOB |
| 36. | 2441U1040S9 | [1] | SHAFT | KOB |
| 37. | 2441U1040S31 | [1] | ROLLER BEARING | KOB |
| 38. | NSS | [2] | NOT SOLD SEPARAT | CON PIVOT |
| 39. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,SHOE |
| 40. | LC15V00023S040 | [1] | BLOCK | KOB CYLINDER |
| 41. | 2441U1030S29 | [9] | SPRING | KOB |
| 42. | LC15V00023S042 | [1] | HOLDER | KOB |
| 43. | LC15V00021S024 | [1] | BALL JOINT | KOB |
| 44. | LC15V00021S004 | [1] | RETAINER | KOB SHOE |
| 45. | GK15V00003S014 | [9] | PISTON | KOB ASSY |
| 46. | 2441U1040S7 | [7] | PLATE | KOB SEPARATOR |
| 47. | 2441U1040S5 | [6] | PLATE | KOB |
| 48. | 2441U1040S6 | [1] | PISTON | KOB |
| 49. | LS15V00004S052 | [1] | O-RING | KOB O-RING |
| 50. | LS15V00004S053 | [1] | O-RING | KOB |
| 51. | LC15V00023S051 | [1] | COVER | KOB |
| 52. | 2436U1427S25 | [14] | PLUG | KOB |
| 53. | LC15V00023S053 | [1] | SPOOL | KOB |
| 54. | LC15V00023S054 | [2] | SPRING SEAT | KOB |
| 55. | YN15V00017S053 | [2] | SPRING | KOB |
| 56. | LC15V00023S056 | [2] | COVER | KOB |
| 57. | ZD12G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB ID 39.40 ± 0.37 x OD 45mm |
| 58. | LC15V00023S058 | [1] | SPOOL | KOB |
| 59. | 2436R874S6 | [1] | PIN | KOB |
| 60. | 2436R874S5 | [1] | SPRING SEAT | KOB |
| 61. | 2436R874S7 | [1] | SPRING | KOB |
| 62. | LC15V00023S062 | [1] | PLUG | KOB |
| 63. | ZD12P01400 | [2] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 64. | 2436R874S3 | [1] | FLEXIBLE JOINT | KOB |
| 65. | 2436U1317S13 | [2] | PLUG | KOB |
| 66. | ZD12P01100 | [2] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 67. | LC15V00023S067 | [2] | RESTRICTOR | KOB |
| 68. | LC15V00023S068 | [2] | SPRING | KOB |
| 69. | YN15V00017S038 | [5] | PLUG | KOB |
| 70. | ZD12P00800 | [5] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 71. | YN15V00017S017 | [3] | CHECK VALVE | KOB |
| 72. | YN15V00017S026 | [3] | SPRING | KOB |
| 73. | GN15V00010S024 | [2] | RESTRICTOR | KOB |
| 74. | ZD12P01250 | [1] | O-RING | KOB ID 12.3mm X OD 14.7mm |
| 75. | GN15V00010S025 | [1] | RESTRICTOR | KOB |
| 76. | ZD12P01500 | [1] | O-RING | KOB ID 14.80 ± 0.20 x OD 19mm |
| 77. | 2441U1040S40 | [1] | O-RING | KOB |
| 78. | 2441U1040S32 | [1] | ROLLER BEARING | KOB |
| 79. | LS15V00014S033 | [2] | SHIM | KOB Superseded by part number: 2441U1040S34 |
| 80. | 2441U1040S35 | [1] | PIN | KOB |
| 81. | LC15V00021S008 | [1] | PLATE | KOB VALVE |
| 82. | YN15V00003S030 | [10] | SPRING | KOB |
| 83. | ZS23C18050 | [10] | SCREW,Hex Socket Head, M18 x 50mm | KOB M18x2.50x50mm |
| 84. | LC22V00006F1 | [2] | VALVE | KOB ASSY,OVERLOAD RELIEF SEE(HC385) |
| 85. | 2441U1040S10 | [1] | COUPLING JOINT | KOB |
| 86. | ZR26X04000 | [1] | RING | KOB Retaining -- ID 40 x OD 43.5 x Th 1.8mm |
| 87. | YR30V00001S115 | [2] | PLUG | KOB |
| 88. | ZD12P01800 | [2] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| K. | LC15V00023R100 | [1] | KIT | SM Ref 33x1 34x1 |
| K. | LC15V00023R200 | [1] | KIT | SM Ref 38x2 39x1 |
| K. | LC15V00023R300 | [1] | KIT | SM Ref 46x7 47x6 |
