Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
EC210BLC

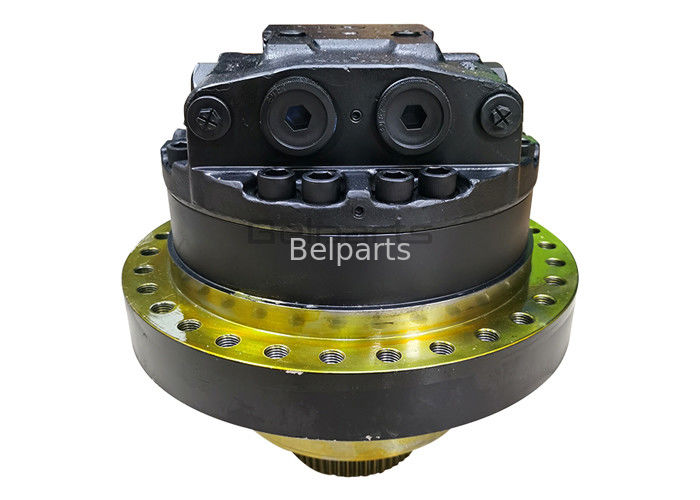

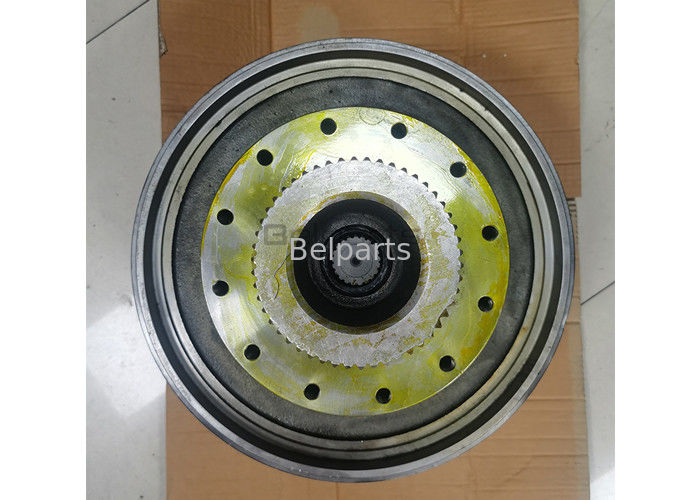

Excavator EC210BLC VOE14533651 travel motor hydraulic motor oil
Appliion |
Excavator |
Part name |
Travel reduction gearbox |
Part number |
EC210BLC |
MOQ |
1PC |
Warranty |
6 months/12months |
Payment term |
T/T, PayPal |
Delivery |
1 day after the payment received |
Shipment |
by sea, by air, by express, or as required |
List of Spare Parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
VOE14533651 | [1] | Travel motor | ||
1. | SA8230-21631 | [1] | Cylinder | |
2. | SA8230-28900 | [9] | Piston | |
3. | VOE14500075 | [1] | Piston | |
4. | VOE14500076 | [1] | Seat | |
5. | SA8230-28890 | [1] | Block | |
6. | SA8230-21530 | [1] | Plate | |
7. | SA8230-21540 | [1] | Ball | |
8. | SA8230-31160 | [2] | Washer | |
9. | SA8230-21560 | [1] | Washer | |
10. | SA8230-21570 | [1] | Spring | |
11. | VOE14500077 | [1] | Ring | |
12. | VOE14500078 | [5] | Bearing | |
13. | SA8230-15140 | [1] | Piston | |
14. | VOE14500079 | [1] | Piston | |
15. | VOE14500080 | [1] | Seat | |
16. | SA8230-33140 | [1] | Drive shaft | |
17. | SA8230-21520 | [1] | Protecting plate | |
18. | SA8230-21550 | [1] | Protecting plate | |
19. | SA8230-21650 | [1] | Piston | |
20. | SA8230-21660 | [12] | Spring | |
21. | SA8230-21670 | [2] | Friction plate | |
22. | SA8230-03560 | [2] | Plate | |
23. | VOE14621703 | [1] | Seal | |
24. | VOE990656 | [1] | O-ring | |
25. | VOE990660 | [1] | O-ring | |
26. | VOE14551534 | [1] | Ball bearing | |
27. | VOE14531426 | [1] | Bearing | |
28. | SA8230-21600 | [2] | Support | |
29. | SA8230-21610 | [4] | Pin | |
30. | SA8230-15150 | [1] | Spring | |
31. | VOE14535473 | [1] | Spindle | |
32. | VOE983495 | [2] | O-ring | |
33. | VOE960259 | [1] | O-ring | |
34. | SA8220-13340 | [1] | Pin | |
35. | VOE14500083 | [1] | Flange | |
36. | [1] | Flange | ||
37. | [1] | Flange | ||
38. | [1] | Spool | ||
39. | [1] | Piston | ||
40. | SA8230-02710 | [2] | Plug | |
41. | SA8230-21700 | [2] | Stop | |
42. | SA8230-03590 | [2] | Plug | |
43. | SA8230-03600 | [2] | Non-return valve | |
44. | SA8230-02760 | [2] | Spring | |
45. | SA8230-03610 | [2] | Spring | |
46. | SA8220-14930 | [4] | Plug | |
47. | VOE990607 | [2] | O-ring | |
48. | VOE983523 | [2] | O-ring | |
49. | SA8230-30410 | [2] | Plug | |
50. | VOE14573795 | [2] | Plug | |
51. | SA8220-14920 | [8] | Plug | |
52. | VOE14573793 | [2] | Plug | |
53. | SA8230-21710 | [1] | Coil | |
54. | VOE14500087 | [1] | Spring | |
55. | SA9676-38000 | [2] | Ball | |
56. | VOE14617170 | [1] | Filter | |
57. | SA8230-23140 | [2] | Plug | |
58. | SA8230-21890 | [2] | Plug | |
59. | VOE990551 | [2] | O-ring | |
60. | VOE983495 | [2] | O-ring | |
61. | VOE14500088 | [2] | Ball | |
62. | VOE983502 | [2] | O-ring | |
63. | VOE990557 | [1] | O-ring | |
64. | VOE983505 | [2] | O-ring | |
65. | VOE14535474 | [1] | Orifice | |
66. | VOE14550652 | [1] | Plug | |
67. | VOE993321 | [1] | O-ring | |
68. | VOE13968816 | [12] | Allen Hd Screw | |
69. | SA8230-21640 | [2] | Relief valve | |
VOE14533743 | [1] | Sealing ring | ||
100. | VOE14550656 | [1] | Seal |
