Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
LC30V00010F2

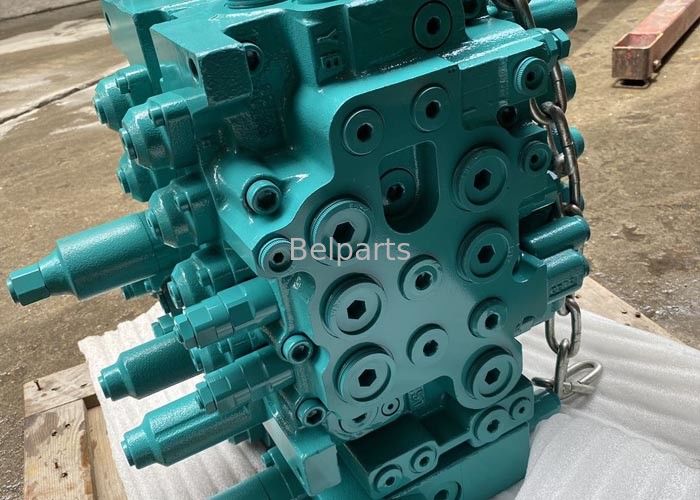

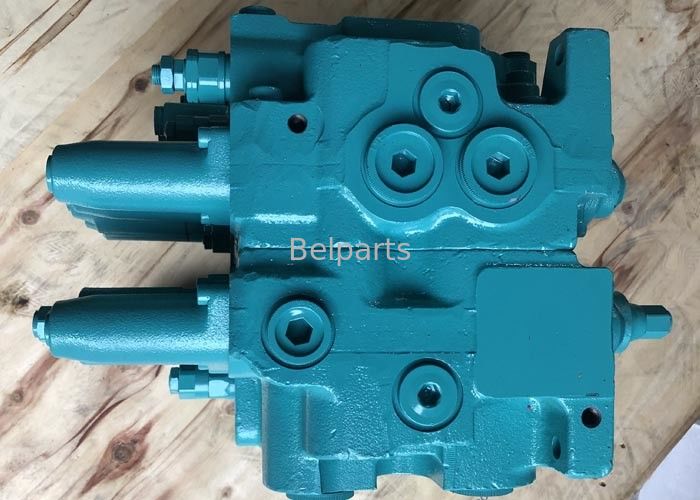

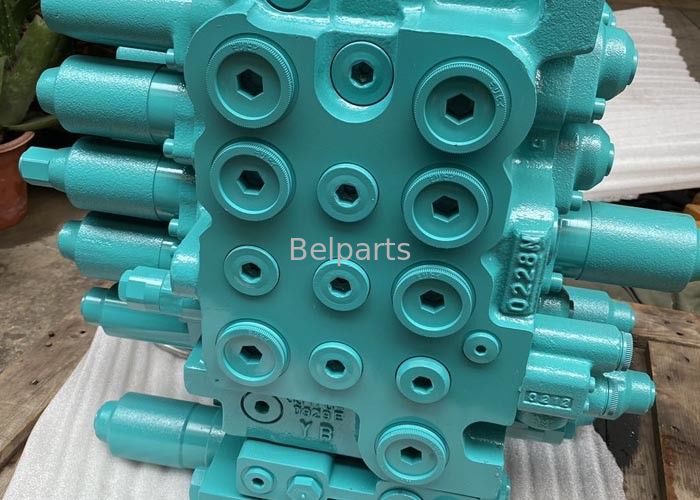

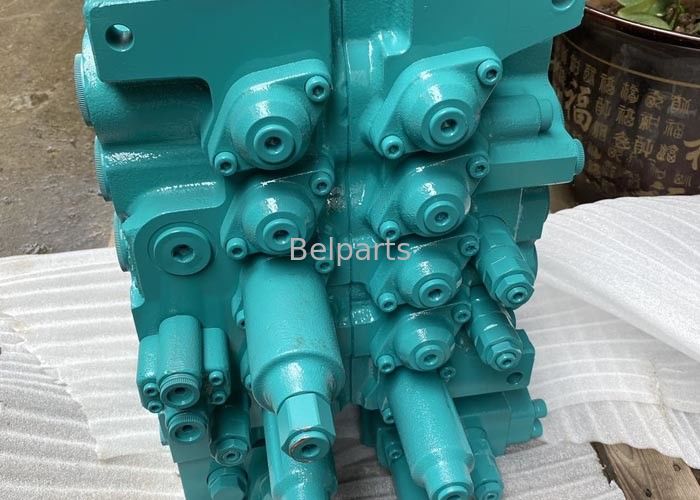

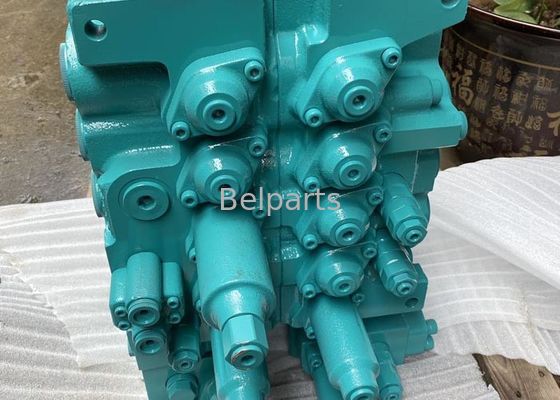

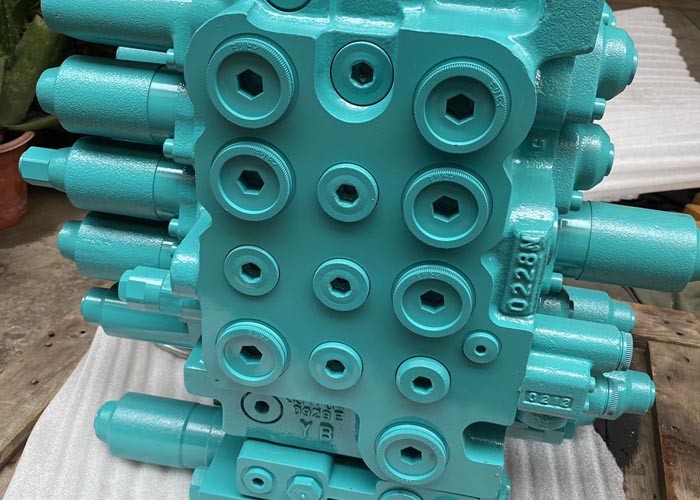

Excavator Control Valve LC30V00010F2 high quality SK330-6E main disturibute valve
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| .. | LC30V00010F2 | [1] | VALVE | KOB ASSEMBLY Superseded by part number: LC30V00006F2 |
| 154. | YN30V00001S154 | [3] | PLUG | KOB |
| 156. | YN30V00001S156 | [1] | PLUG | KOB Superseded by part number: YW30V00001S156 |
| 157. | YW30V00001S157 | [1] | PLUG | KOB |
| 158. | YN30V00001S158 | [1] | PLUG | KOB |
| 161. | ZD12P03800 | [7] | O-RING | KOB ID 37.70 ± 0.37 x OD 44.7mm |
| 162. | ZD12G03000 | [4] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01500 | [7] | O-RING | KOB ID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P02400 | [4] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 166. | ZD12P01400 | [6] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 167. | ZD12P01100 | [14] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 168. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 201. | 2436U1165S201 | [6] | COVER | KOB |
| 203. | 2436U1265S201 | [3] | COVER | KOB Superseded by part number: 2436U2631S201 |
| 204. | YN30V00021S207 | [4] | COVER | KOB |
| 205. | YN30V00001S205 | [7] | COVER | KOB |
| 211. | YX30V00009F1 | [2] | LOCK VALVE | KOB ASSEMBLY |
| 261. | 2436U1372S261 | [6] | O-RING | KOB Superseded by part number: YN30V00079S261 |
| 262. | 2436U1457S162 | [7] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 264. | ZD12G04000 | [7] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB ID 39.40 ± 0.37 x OD 45mm |
| 273. | ZS23C08025 | [40] | SCREW,Hex Socket Head, M8 x 25mm | KOB M08x1.25x25mm |
| 301. | LC30V00009S301 | [1] | SPOOL | KOB Superseded by part number: LC30V00009R100 |
| 302. | LC30V00009S302 | [1] | REPAIR KIT | KOB SPOOL ASSEMBLY Superseded by part number: LC30V00009R110 |
| 303. | LC30V00009S303 | [1] | SPOOL | KOB Superseded by part number: LC30V00009R130 |
| 305. | YN30V00050S305 | [1] | SPOOL | KOB |
| 306. | YN30V00050S306 | [2] | SPOOL | KOB Superseded by part number: LC30V00009R140 |
| 307. | YN30V00054S307 | [1] | KIT | KOB SPOOL |
| 308. | YN30V00001S308 | [1] | SPOOL | KOB Superseded by part number: YN30V00001R160 |
| 309. | LC30V00009S309 | [2] | SPOOL | KOB Superseded by part number: LC30V00009R170 |
| 310. | LC30V00009S310 | [1] | REPAIR KIT | KOB SPOOL Superseded by part number: LC30V00009R180 |
| 311. | LC30V00009S311 | [1] | SPOOL | KOB Superseded by part number: LC30V00009R190 |
| 312. | LC30V00010S312 | [1] | SPOOL | KOB Superseded by part number: LC30V00009R200 |
| 321. | 2436U1165S371 | [6] | SPRING | KOB |
| 322. | 2436U1165S372 | [3] | SPRING | KOB |
| 323. | 2436U1231S323 | [1] | SPRING | KOB |
| 324. | YN30V00001S324 | [2] | SPRING | KOB |
| 325. | YN30V00001S325 | [7] | SPRING | KOB |
| 326. | YN30V00001S326 | [3] | SPRING | KOB |
| 327. | YN30V00001S327 | [2] | SPRING | KOB |
| 328. | YN30V00001S328 | [1] | SPRING | KOB |
| 329. | LC30V00009S329 | [1] | SPRING | KOB |
| 331. | 2436U1443S332 | [12] | SPRING SEAT | KOB |
| 332. | 2436U1265S332 | [14] | SPRING SEAT | KOB |
| 333. | 2436U1165S336 | [6] | BOLT | KOB |
| 334. | 2436U1265S336 | [7] | BOLT | KOB |
| 336. | 2436U1165S335 | [4] | STOP | KOB PIPE |
| 337. | 2436U1265S335 | [4] | STOP | KOB |
| 338. | YN30V00001S338 | [3] | STOP | KOB |
| 339. | YN30V00001S339 | [2] | STOP | KOB |
| 511. | 2436U1165S511 | [6] | POPPET | KOB |
| 512. | 2436U1265S511 | [4] | POPPET | KOB |
| 513. | YN30V00051S513 | [2] | POPPET | KOB |
| 514. | YN30V00001S514 | [2] | POPPET | KOB |
| 515. | LC30V00009S515 | [1] | POPPET | KOB |
| 521. | 2436U1165S521 | [6] | SPRING | KOB |
| 522. | 2436U1265S521 | [5] | SPRING | KOB |
| 523. | YN30V00051S523 | [2] | SPRING | KOB |
| 524. | YN30V00001S524 | [2] | SPRING | KOB |
| 551. | LQ30V00002S551 | [7] | PLUG | KOB SPRING Superseded by part number: YN30V00001S551 |
| 552. | YN30V00001S552 | [5] | PLUG | KOB Superseded by part number: YN30V00021S552 |
| 554. | YN30V00051S554 | [2] | PLUG | KOB |
| 555. | YN30V00001S555 | [2] | PLUG | KOB |
| 556. | YN30V00001S556 | [2] | PLUG | KOB |
| 562. | ZD12P02000 | [5] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB ID 19.80 ± 0.22 x OD 24mm |
| 601. | YN22V00001F6 | [1] | VALVE | KOB ASSEMBLY, RELIEF, See Art CR8-57 |
| 602. | YN22V00002F1 | [3] | VALVE | KOB Overload RELIEF, See Art CR8-59 |
| 603. | YN22V00002F9 | [3] | VALVE | KOB OVERLOAD, See Art CR8-59 |
| 973. | ZS23C14140 | [6] | SCREW,Hex Socket Head, M14 x 140mm | KOB M14x2.0x140mm |
| 974. | ZS23C14100 | [2] | CAPSCREW,Hex Socket Head, M14 x 100mm | KOB SCREW M14x2.0x100mm |
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Exhibition Strength
In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.
Customer Review
We always adhere to the concept of customer first and try our best to provide customers with the best pre-sales and after-sales services.
Factory Superiority
Our advantages
1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
Hot products
Delivery&Packing
FAQ:
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and Alibaba trade assurance.
