Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R210LC-9

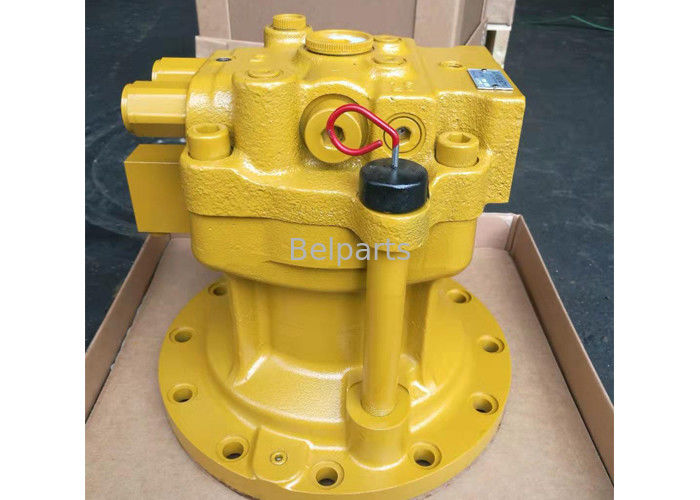

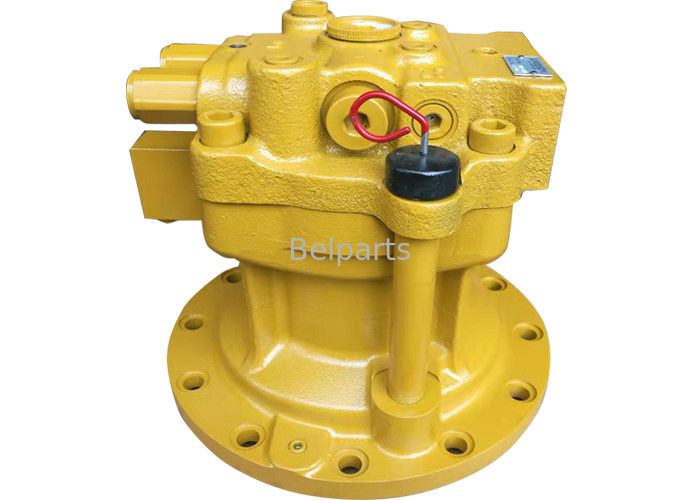

Excavator R210LC-9 Slew Motor Assembly 31Q6-10131 swing motor assy
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
R210LC-9 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
Pos. | Part No | Qty | Parts name |
---|---|---|---|
*. | 31Q6-10150 | [1] | SWING MOTOR ASSY |
*. | 31Q6-10151 | [1] | SWING MOTOR ASSY |
*. | 31Q6-10151SG8 | [1] | SWING MOTOR ASSY |
*-1. | 31Q6-10130 | [1] | SWING MOTOR UNIT |
*-1. | 31Q6-10131 | [1] | SWING MOTOR UNIT |
*-1. | 31Q6-10131AR | [1] | SWING MOTOR UNIT |
1. | XKAY-00637 | [1] | BODY |
1. | XKAY-02096 | [1] | BODY |
K2. | XKAY-00521 | [1] | SEAL-OIL |
3. | XKAY-00522 | [1] | BEARING-ROLLER |
4. | XKAY-00523 | [1] | RING-SNAP |
5. | XKAY-00524 | [1] | SHAFT |
6. | XKAY-00525 | [1] | BUSHING |
7. | XKAY-00526 | [1] | RING-STOP |
8. | XKAY-00625 | [1] | PIN |
9. | XKAY-00527 | [1] | PLATE-SHOE |
A. | XKAY-01927 | [1] | ROTARY KIT |
A. | XKAY-00635 | [1] | ROTARY KIT |
A-A. | XKAY-00634 | [1] | CYLINDER BLOCK KIT |
N10. | XKAY-00633 | [1] | BLOCK-CYLINDER |
N11. | XKAY-00531 | [9] | SPRING |
24. | XKAY-00544 | [1] | PLATE-VALVE |
A-B. | XKAY-00532 | [1] | RETAINER KIT |
N12. | XKAY-00533 | [1] | GUIDE-BALL |
N13. | XKAY-00534 | [1] | PLATE-SET |
A-C. | XKAY-00535 | [1] | PISTON KIT |
14. | XKAY-00536 | [9] | PISTON ASSY |
15. | XKAY-00537 | [3] | PLATE-FRICTION |
16. | XKAY-00538 | [3] | PLATE |
17. | XKAY-00632 | [1] | PISTON-BRAKE |
K18. | XKAY-00468 | [1] | O-RING |
K19. | XKAY-00540 | [2] | O-RING |
20. | XKAY-00541 | [20] | SPRING |
21. | XKAY-00630 | [1] | COVER-REAR |
22. | XKAY-00543 | [1] | BEARING-NEEDLE |
23. | XKAY-00382 | [2] | PIN |
25. | XKAY-00546 | [4] | BOLT-WRENCH |
26. | XKAY-00309 | [2] | PLUG |
K27. | XKAY-00141 | [2] | RING-BACK UP |
K28. | XKAY-00310 | [2] | O-RING |
29. | XKAY-00311 | [2] | SPRING |
30. | XKAY-00312 | [2] | CHECK |
31. | XKAY-00976 | [2] | RELIEF VALVE ASSY |
31. | XKAY-00976 | [2] | RELIEF VALVE ASSY |
32. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS |
33. | XKAY-00315 | [1] | TIME DELAY VALVE ASSY |
33. | XKAY-01470 | [1] | VALVE ASSY-TIME DELAY |
34. | XKAY-00149 | [3] | BOLT-WRENCH |
35. | XKAY-00150 | [1] | PLUG |
K36. | XKAY-00151 | [3] | O-RING |
37. | XKAY-00140 | [1] | PLUG |
38. | XKAY-00975 | [1] | PLUG |
39. | XKAY-00548 | [1] | PLUG |
N40. | XKAY-00549 | [1] | NAME PLATE |
40. | XKAY-01518 | [1] | NAME PLATE |
41. | XKAY-00277 | [2] | RIVET |
42. | XKAY-01986 | [1] | GAUGE-LEVEL |
42-1. | XKAY-01988 | [1] | PLUG |
43. | XKAY-00551 | [1] | FLANGE |
K44. | XKAY-00552 | [2] | O-RING |
45. | XKAY-00322 | [2] | PLUG |
K46. | XKAY-00324 | [2] | O-RING |
K47. | XKAY-00247 | [2] | O-RING |
K48. | XKAY-00605 | [2] | RING-BACK UP |
*-2. | @ | [1] | SWING REDUCTION GEAR |
K. | XKAY-00553 | [1] | SEAL KIT |
K. | XKAY-01517 | [1] | SEAL KIT |
N. | @ | [AR] | NOT SUPPLIED PARTS |
