Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
CX290

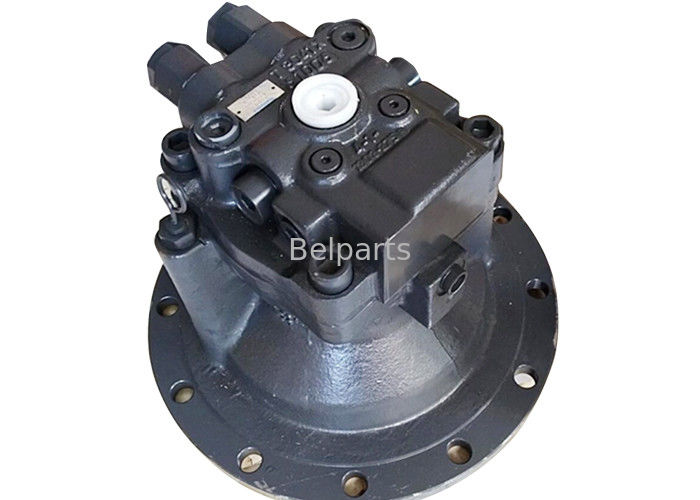

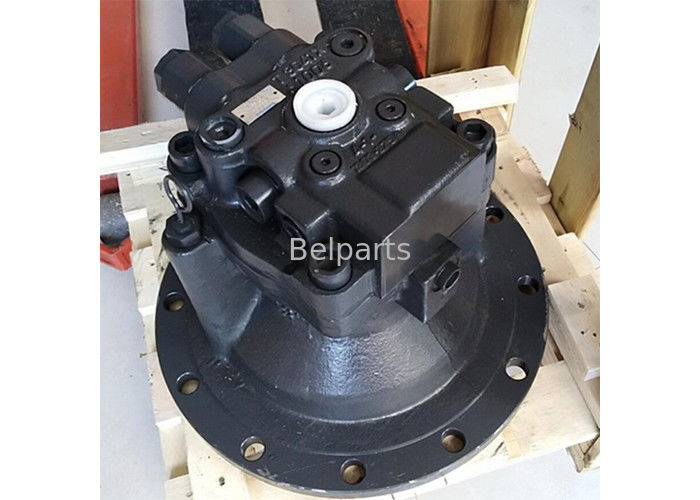

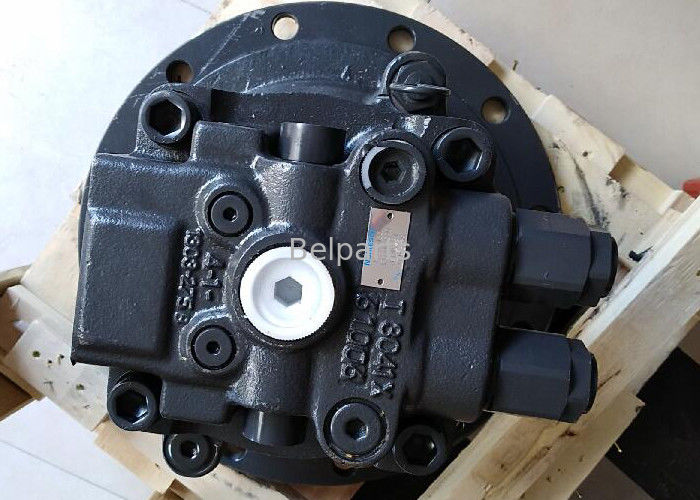

Excavator CX290 Slew Motor Assembly KBC0121 swing motor assy with high quality
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
CX290 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | KBC0121 | [1] | MOTOR, HYDRAULIC | SUM Swing, See Figure 08-66A; No Longer Available, Order KBC0155 Superseded by part number: KBC10200 |
1A. | KBC0155 | [1] | HYDRAULIC MOTOR | SUM Swing, Component Parts Not Available, REFERENCE ONLY - STD DCH29B0241 / NARROW DCH29B0240 / DAC0729186 ...AND AFTER Superseded by part number: KBC10200 |
1B. | KBC10130 | [1] | HYDRAULIC MOTOR | SUM Swing Superseded by part number: KBC10200 |
1B. | LJ016070R | [1] | REMAN-HYD MOTOR | RAC CX290 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Swing, Reman for New PN KBC10130 |
1B. | LJ016070C | [1] | CORE-MOTOR HYDRAULIC | RAC Return Number |
3. | KSC0235 | [1] | REDUCER | SUM Transmission, See Figure 08-67 Superseded by part number: KSC11010 |
3. | KSC10250R | [1] | REMAN-REDUCTION UNIT | RAC CX290 CASE CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KSC0235 Superseded by part number: KSC11010R |
3. | KSC10250C | [1] | CORE-REDUCTION UNIT | RAC Return Number |
31. | KBC0124 | [1] | GEAR | SUM Pinion |
32. | 150285A1 | [1] | PLATE, LOCKING | SUM |
33. | 167069A1 | [1] | WASHER | SUM |
34. | 627-16040 | [2] | BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 374835 |
35. | 153630A1 | [1] | LUBE NIPPLE | SUM |
36. | 150317A1 | [1] | HEADED PIN,24mm OD x 90mm L | SUM |
37. | 166477A1 | [12] | BOLT,Sems, M24 x 90mm | SUM With Attached Washer |
38. | KTJ0315 | [1] | HYDRAULIC HOSE,9.52 mm ID x 350.00 mm | SUM Superseded by part number: KNJ14580 |
39. | KHP0501 | [1] | PLUG | SUM |
40. | KHR2584 | [1] | CLAMP | SUM |
41. | KHJ1215 | [1] | BOLT,Spcl | SUM |
Company Information
In-sale service:
After-sale service:
Our Company
Loed in Guangzhou China, GZ Belparts Engineering Machinery Co., Ltd was founded in September 2013. Now, we have one shop, one warehouse, and one office as well as a professional team for purchasing, selling, packing, shipping, and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Ass'y, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy a high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
