Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R360LC-9

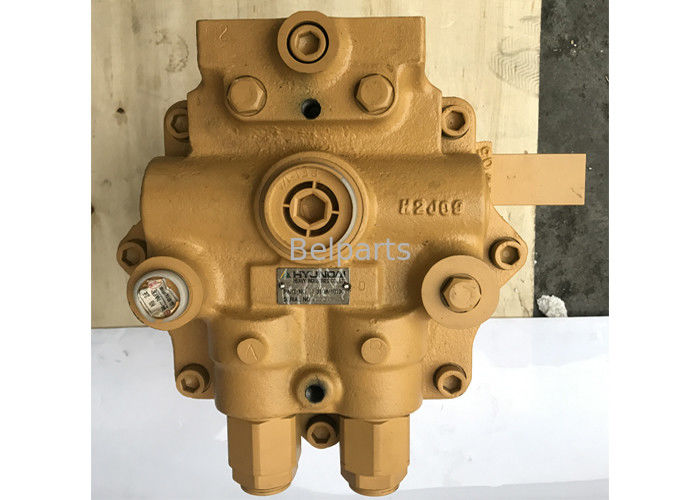

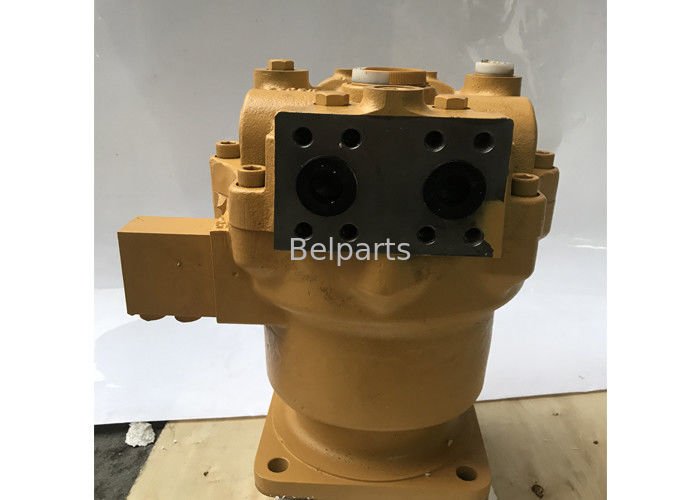

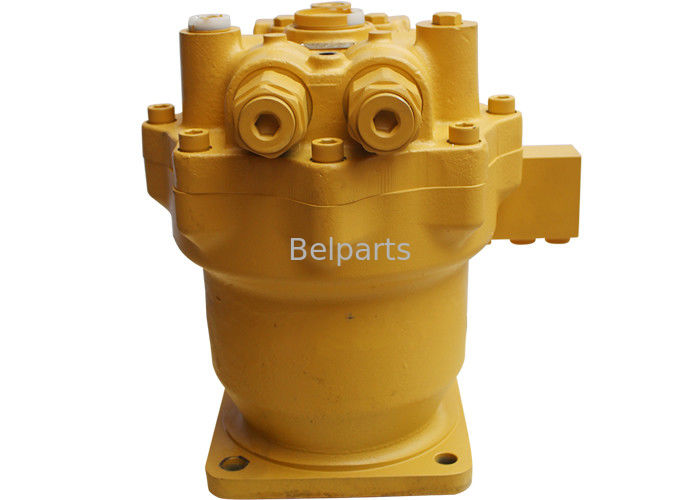

Excavator R360LC-9 Slew Motor Assembly 31QA-10130 swing motor assy
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
R360LC-9 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
Parts on group SWING MOTOR:
Pos. | Part No | Qty | Parts name |
---|---|---|---|
*. | @ | [1] | SWING MOTOR ASSY |
*-1. | 31QA-10130 | [1] | SWING MOTOR UNIT |
*-1. | 31QA-10130AR | [1] | SWING MOTOR |
1. | XKAY-00161 | [1] | BODY |
1. | XKAY-01143 | [1] | BODY |
2. | XKAY-00162 | [1] | SEAL-OIL |
3. | XKAY-00163 | [1] | BEARING-ROLLER |
4. | XKAY-00164 | [1] | RING-SNAP |
5. | XKAY-00165 | [1] | SHAFT |
6. | XKAY-00166 | [1] | PIN |
7. | XKAY-00167 | [1] | RING-STOP |
K8. | XKAY-00168 | [1] | PLATE-SHOE |
9. | XKAY-01473 | [1] | ROTARY KIT |
9-1. | XKAY-01474 | [1] | CYLINDER BLOCK KIT |
N9-11. | XKAY-01146 | [1] | CYLINDER BLOCK |
9-12. | XKAY-00170 | [9] | SPRING |
9-2. | XKAY-01147 | [1] | RETAINER KIT |
9-21. | XKAY-00171 | [1] | GUIDE SEAT-BALL |
9-22. | XKAY-00172 | [1] | GUIDE-BALL |
9-23. | XKAY-00173 | [1] | PLATE-SET |
9-3. | XKAY-00174 | [9] | PISTON ASSY |
9-3. | XKAY-01471 | [9] | PISTON ASSY |
15. | XKAY-00175 | [4] | PLATE-FRICTION |
16. | XKAY-00176 | [4] | PLATE |
17. | XKAY-00177 | [1] | PISTON-BRAKE |
18. | XKAY-01446 | [2] | O-RING |
19. | XKAY-00179 | [19] | SPRING |
20. | XKAY-00180 | [1] | PLATE-VALVE |
20. | XKAY-01469 | [1] | PLATE-VALVE |
21. | XKAY-00181 | [2] | PIN |
22. | XKAY-00182 | [1] | BEARING-NEEDLE |
23. | XKAY-01149 | [1] | COVER-REAR |
23. | XKAY-01472 | [1] | COVER-REAR |
23. | XKAY-02191 | [1] | COVER-REAR |
24. | XKAY-00184 | [7] | BOLT-WRENCH |
25. | XKAY-00185 | [1] | BOLT-WRENCH |
26. | XKAY-00186 | [2] | POPPET |
27. | XKAY-00187 | [2] | SPRING |
28. | XKAY-00188 | [2] | PLUG |
K29. | XKAY-01447 | [2] | O-RING |
30. | XKAY-01151 | [2] | RELIEF VALVE ASSY |
31. | XKAY-01470 | [1] | VALVE ASSY-TIME DELAY |
32. | XKAY-00149 | [3] | BOLT-WRENCH |
33. | XKAY-00140 | [3] | PLUG |
34. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS |
35. | XKAY-00322 | [2] | PLUG |
K36. | XKAY-00247 | [2] | O-RING |
K37. | XKAY-00605 | [2] | RING-BACK UP |
K38. | XKAY-00324 | [2] | O-RING |
K39. | XKAY-01448 | [1] | O-RING |
40. | XKAY-00193 | [1] | BUSHING |
N41. | XKAY-01154 | [1] | NAME PLATE |
N42. | RO205 | [2] | RIVET |
*-2. | @ | [1] | SWING REDUCTION GEAR |
K. | XKAY-00974 | [1] | SEAL KIT |
