Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
R210-7

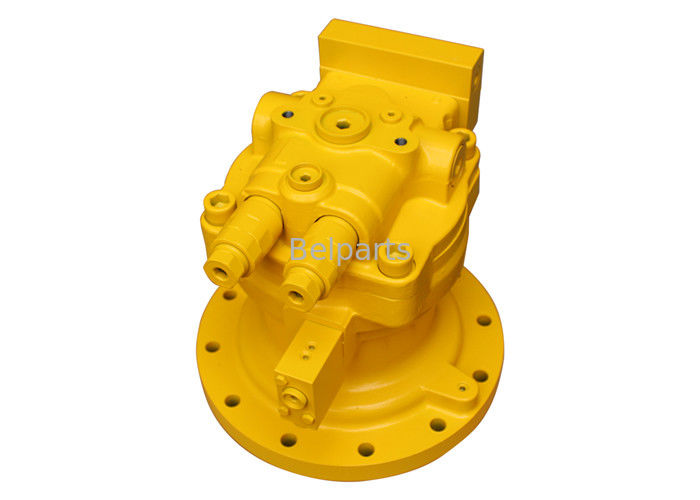

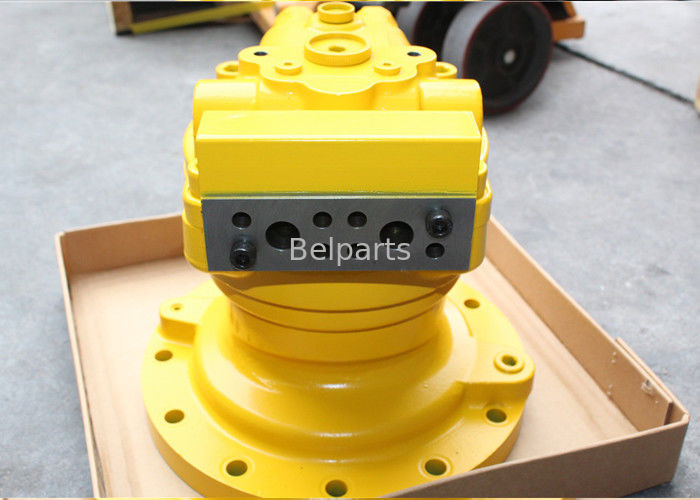

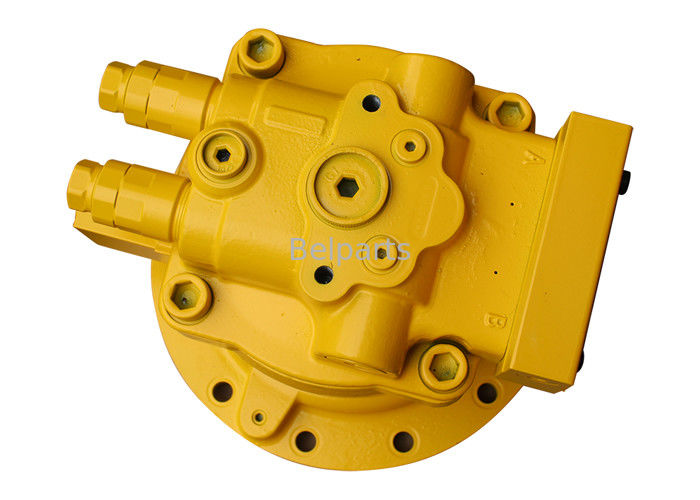

Excavator M2X150 R210-7 R210 Slew Motor Assembly 31N6-10210 Swing Motor Assy
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
R210-7 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
N*. | @ | [1] | SWING MOTOR ASSY | |
*-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
*-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
*-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
1. | XKAY-00520 | [1] | BODY | 31N6-10210-01 |
1. | XKAY-00637 | [1] | BODY | 31N6-10210-02 |
1. | XKAY-02096 | [1] | BODY | 31N6-10210-02 |
K2. | XKAY-00521 | [1] | SEAL-OIL | |
3. | XKAY-00522 | [1] | BEARING-ROLLER | |
4. | XKAY-00523 | [1] | RING-SNAP | |
5. | XKAY-00524 | [1] | SHAFT | |
6. | XKAY-00525 | [1] | BUSHING | |
7. | XKAY-00526 | [1] | RING-STOP | |
8. | XKAY-00286 | [1] | PIN | 31N6-10210 |
8. | XKAY-00625 | [1] | PIN | 31N6-10210-01 |
9. | XKAY-00527 | [1] | PLATE-SHOE | |
A. | XKAY-00528 | [1] | ROTARY KIT | 31N6-10210-01 |
A. | XKAY-00635 | [1] | ROTARY KIT | 31N6-10210-02 |
A-A. | XKAY-00529 | [1] | CYLINDER BLOCK KIT | 31N6-10210-01 |
A-A. | XKAY-00634 | [1] | CYLINDER BLOCK KIT | 31N6-10210-02 |
10. | XKAY-00530 | [1] | CYLINDER BLOCK | 31N6-10210-01 |
10. | XKAY-00633 | [1] | BLOCK-CYLINDER | 31N6-10210-02 |
11. | XKAY-00531 | [9] | SPRING | |
A-B. | XKAY-00532 | [1] | RETAINER KIT | |
12. | XKAY-00533 | [1] | GUIDE-BALL | |
13. | XKAY-00534 | [1] | PLATE-SET | |
A-C. | XKAY-00535 | [1] | PISTON KIT | |
N14. | XKAY-00536 | [9] | PISTON ASSY | |
15. | XKAY-00537 | [3] | PLATE-FRICTION | |
16. | XKAY-00538 | [3] | PLATE | |
17. | XKAY-00539 | [1] | PISTON-BRAKE | |
17. | XKAY-00631 | [1] | PISTON-BRAKE | 31N6-10210-01 |
17. | XKAY-00632 | [1] | PISTON-BRAKE | 31N6-10210-02 |
K18. | XKAY-00468 | [1] | O-RING | |
K19. | XKAY-00540 | [2] | O-RING | |
20. | XKAY-00541 | [20] | SPRING | |
21. | XKAY-00542 | [1] | COVER-REAR | 31N6-10210 |
21. | XKAY-00630 | [1] | COVER-REAR | 31N6-10210-01 |
22. | XKAY-00543 | [1] | BEARING-NEEDLE | |
23. | XKAY-00382 | [2] | PIN | |
24. | XKAY-00544 | [1] | PLATE-VALVE | |
27. | XKAY-00546 | [4] | BOLT-WRENCH | |
28. | XKAY-00309 | [2] | PLUG | |
K29. | XKAY-00547 | [2] | RING-BACK UP | |
K30. | XKAY-00310 | [2] | O-RING | |
31. | XKAY-00311 | [2] | SPRING | |
32. | XKAY-00312 | [2] | CHECK | |
33. | XKAY-00313 | [2] | RELIEF VALVE ASSY | |
34. | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
35. | XKAY-00315 | [1] | TIME DELAY VALVE ASSY | |
36. | XKAY-00149 | [3] | BOLT-WRENCH | |
37. | XKAY-00316 | [1] | PLUG | |
K38. | XKAY-00151 | [3] | O-RING | |
39. | XKAY-00140 | [1] | PLUG | |
41. | XKAY-00548 | [1] | PLUG | |
N42. | XKAY-00549 | [1] | NAME PLATE | |
43. | XKAY-00277 | [2] | RIVET | |
44. | XKAY-01986 | [1] | GAUGE-LEVEL | |
45. | XKAY-00551 | [1] | FLANGE | |
K46. | XKAY-00552 | [2] | O-RING | |
47. | XKAY-00322 | [2] | PLUG | |
K48. | XKAY-00324 | [2] | O-RING | |
K49. | XKAY-00247 | [2] | O-RING | |
K50. | XKAY-00248 | [2] | RING-BACK UP | |
*-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4111 |
K. | XKAY-00553 | [1] | SEAL KIT | SEE ILLUST |
N. | @ | [AR] | NOT SUPPLIED PARTS |
