Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
ZX130

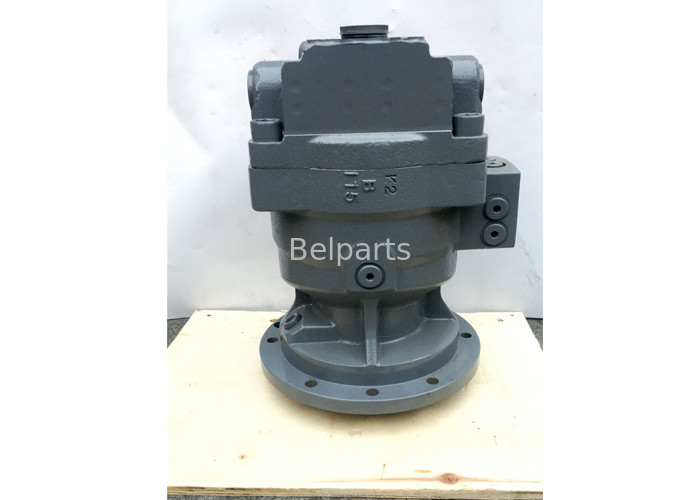

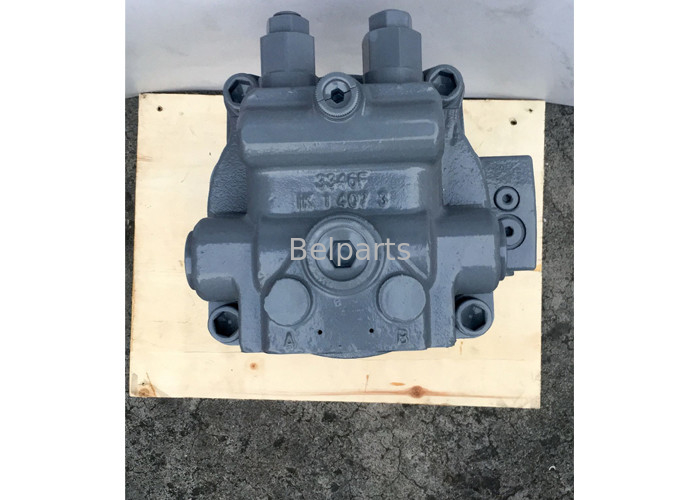

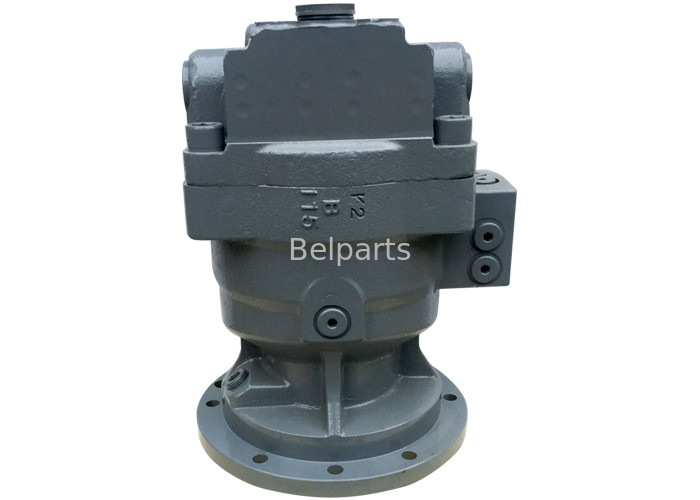

Excavator Slew motor ZX130 Swing Motor Assy 9196961 PG200553
Appliion |
Excavator |
Part name |
Belparts swing motor |
Material |
Steel |
Model |
ZX130 |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
9196961 | [1] | MOTOR;OIL (SWING) | <for both assembly of machine and transportation> | |
01. | 8080152 | [1] | CASING | |
01A. | +++++++ | [1] | CASING | |
01B. | +++++++ | CASING;MOTOR | ||
02. | 4320490 | [1] | SEAL;OIL | |
03. | 3085794 | [1] | SHAFT | |
05. | 991342 | [1] | RING;RETAINING | |
06. | 4402669 | [1] | BRG.;ROL. | |
07. | 940144 | [1] | RING;RETAINING | |
08. | 4396102 | [1] | PLATE;SWASH | |
10. | 2043442 | [1] | ROTOR | |
12. | 4413753 | [1] | SPRING;DISC | |
13. | 4413700 | [1] | BUSHING | |
14. | 8071556 | [9] | PISTON | |
15. | 3081727 | [1] | RETAINER | |
17. | 3087818 | [4] | PLATE;FRICTION | |
19. | 3075729 | [4] | PLATE | |
21. | 3084716 | [1] | PISTON | |
22. | 4413765 | [1] | O-RING | |
23. | 4413764 | [2] | O-RING | |
24. | 4434436 | [1] | SPRING;DISC | |
26. | 3089613 | [1] | PLATE;VALVE | |
28. | 9177595 | [1] | VALVE;BRAKE | I 9198979 <for assembly of machine> |
28. | (9198979) | [1] | VALVE;BRAKE | <for transportation> |
29. | 4413768 | [1] | BRG.;NEEDLE | |
30. | 4413761 | [2] | PIN;KNOCK | |
32. | A590916 | [4] | WASHER;SPRING | |
34. | M341650 | [4] | BOLT;SOCKET | |
36. | M492564 | [2] | SCREW;DRIVE | |
37. | 3088886 | [1] | NAME-PLATE | |
41. | 9134110 | [3] | PLUG | |
41A. | 957366 | [1] | O-RING | |
43. | 9134109 | [1] | PLUG | |
43A. | 4506408 | [1] | O-RING | |
45. | 4399892 | [1] | POPPET | |
46. | 4398846 | [1] | SPRING;COMPRES. | |
47. | 4452178 | [1] | WASHER;PLANE | |
50. | 4398889 | [1] | SPRING;COMPRES. |
